AM3102

Digitally Tunable 330 MHz to 1.2 GHz Band Pass Filter


Recommended for New Designs


Product Options

Surface Mount 4mm x 6mm QFN
Connectorized Evaluation Board

Product Overview

AM3102 is a miniature filter IC containing digitally tunable bandpass filters covering the 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz frequency range. Independent 4 bit digital control of the low-pass and high-pass corners provide control of both center frequency and bandwidth. AM3102 is packaged in a 4mm x 6mm QFN and operates over the -40C to +85C temperature range.



The AM3102 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3065 that covers 6.0 GHz to 12.0 GHz, the AM3090 that covers DC to 450 MHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Product Overview

AM3102 is a miniature filter IC containing digitally tunable bandpass filters covering the 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz frequency range. Independent 4 bit digital control of the low-pass and high-pass corners provide control of both center frequency and bandwidth. AM3102 is packaged in a 4mm x 6mm QFN and operates over the -40C to +85C temperature range.

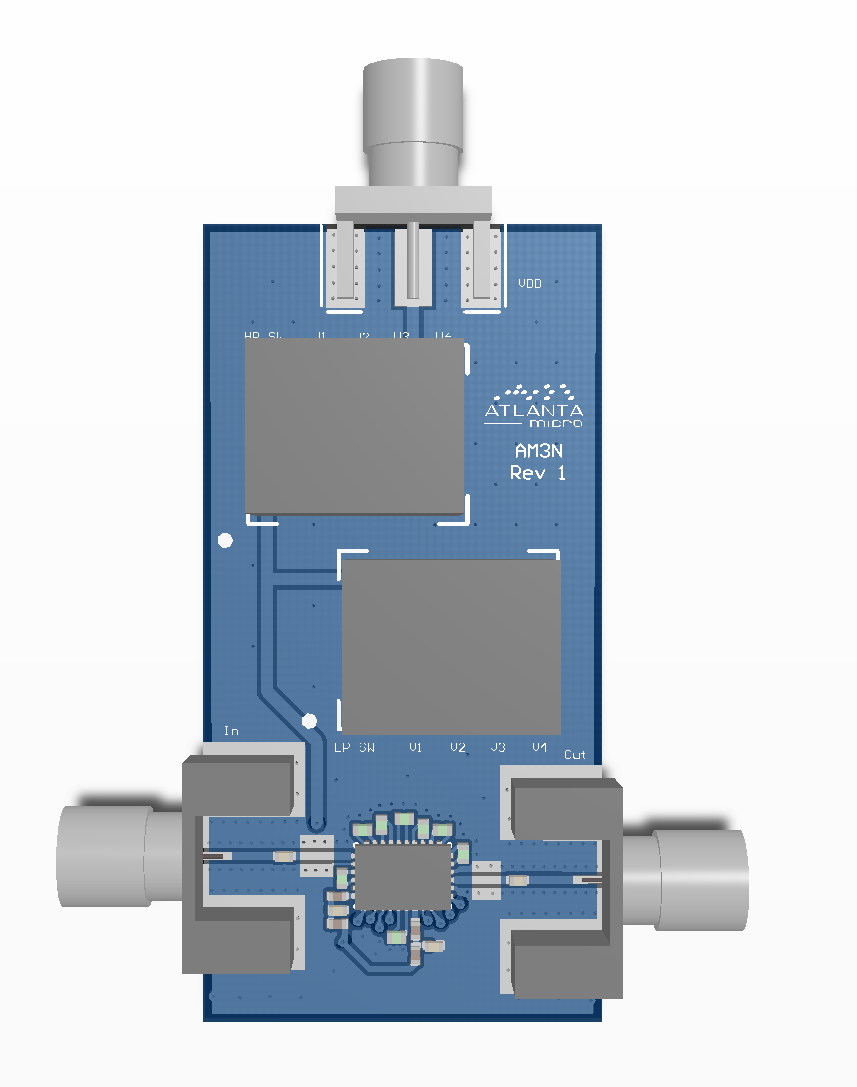

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3102 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3102.



The AM3102 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3065 that covers 6.0 GHz to 12.0 GHz, the AM3090 that covers DC to 450 MHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

330

Cutoff Freq High (MHz)

1200

Insertion Loss (dB)

2.5

Typical Rejection (dB)

40

Package

4x6mm QFN

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

Center Frequency

Adjustable

# in Pack

1



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050
