Digitally Tunable 6.0 GHz to 12.0 GHz Band Pass Filter


Recommended for New Designs


Product Options

Surface Mount 4mm x 6mm QFN
Connectorized Evaluation Board

Product Overview

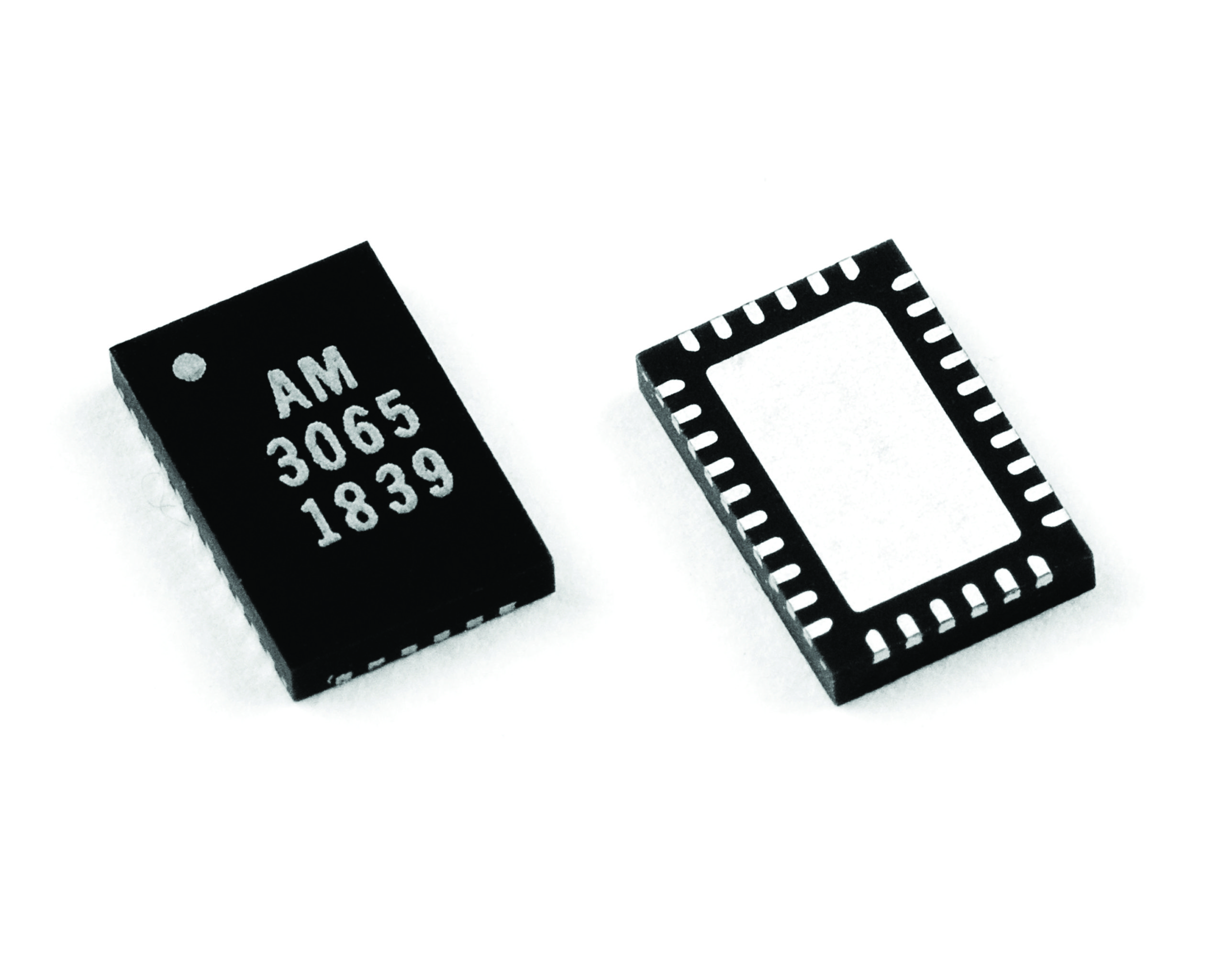

AM3065 is a miniature filter IC containing digitally tunable bandpass filters covering the 6.0 GHz to 12.0 GHz frequency range. Separate low-pass and high-pass tuning voltages provide independent control of both center frequency and bandwidth. AM3065 is packaged in a 4mm x 6mm QFN* and operates over the -40C to +85C temperature range.



The AM3065 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

*NOTE: Pinout for AM3065 is different than AM3102, AM3103, and AM3104.

Product Overview

AM3065 is a miniature filter IC containing digitally tunable bandpass filters covering the 6.0 GHz to 12.0 GHz frequency range. Separate low-pass and high-pass tuning voltages provide independent control of both center frequency and bandwidth. AM3065 is packaged in a 4mm x 6mm QFN* and operates over the -40C to +85C temperature range.

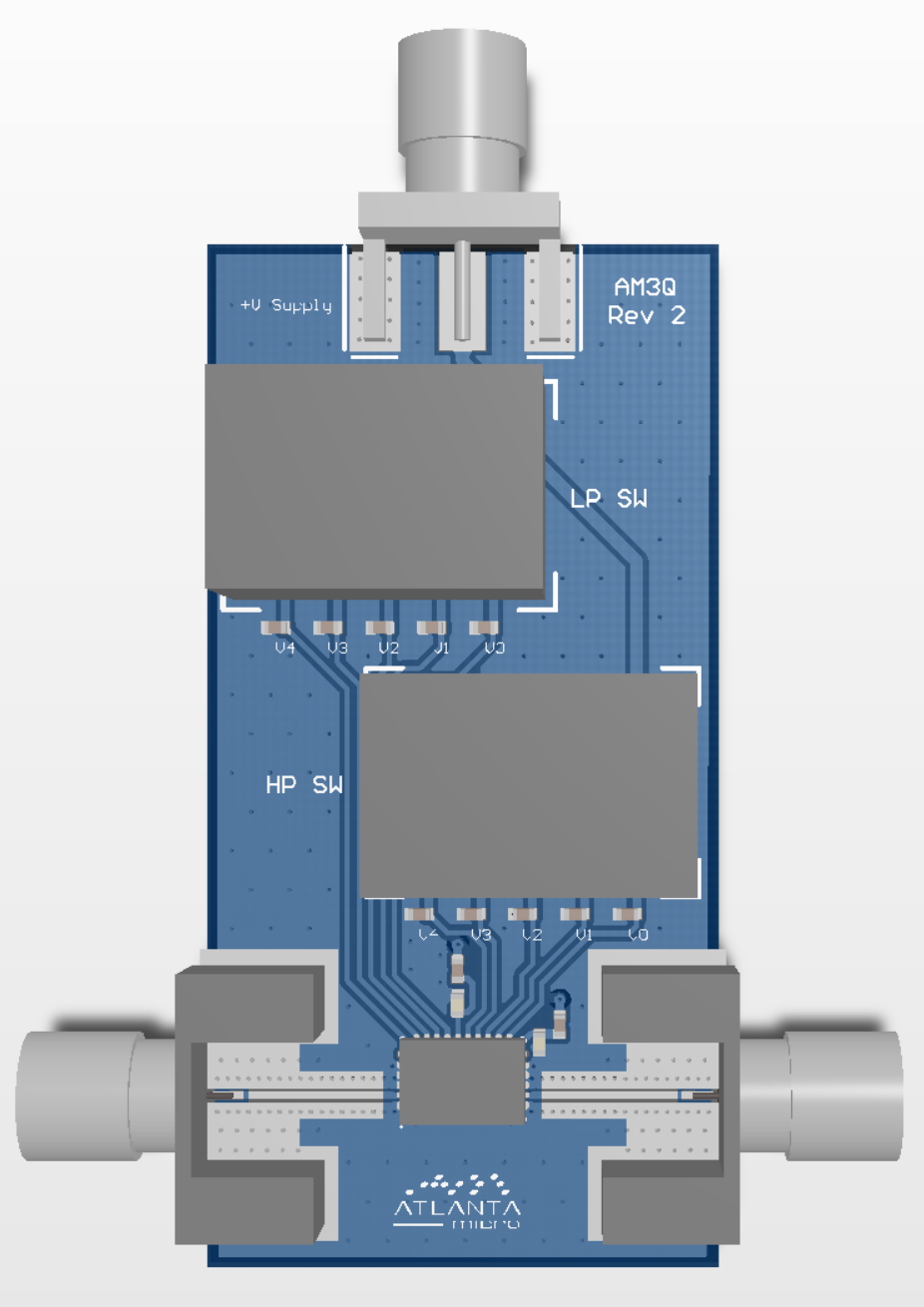

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3065 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3065.



The AM3065 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

6000

Cutoff Freq High (MHz)

12000

Insertion Loss (dB)

4

Typical Rejection (dB)

40

Package

4x6mm QFN

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

Center Frequency

Adjustable

# in Pack

1



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050

AM3065

Digitally Tunable 6.0 GHz to 12.0 GHz Band Pass Filter


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 4mm x 6mm QFN
Connectorized Evaluation Board

Product Overview

AM3065 is a miniature filter IC containing digitally tunable bandpass filters covering the 6.0 GHz to 12.0 GHz frequency range. Separate low-pass and high-pass tuning voltages provide independent control of both center frequency and bandwidth. AM3065 is packaged in a 4mm x 6mm QFN* and operates over the -40C to +85C temperature range.



The AM3065 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

*NOTE: Pinout for AM3065 is different than AM3102, AM3103, and AM3104.

Product Overview

AM3065 is a miniature filter IC containing digitally tunable bandpass filters covering the 6.0 GHz to 12.0 GHz frequency range. Separate low-pass and high-pass tuning voltages provide independent control of both center frequency and bandwidth. AM3065 is packaged in a 4mm x 6mm QFN* and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3065 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3065.



The AM3065 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, the AM3103 that covers 1.0 GHz to 3.0 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

6000

Cutoff Freq High (MHz)

12000

Insertion Loss (dB)

4

Typical Rejection (dB)

40

Package

4x6mm QFN

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

Center Frequency

Adjustable

# in Pack

1



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050
