Digitally Tunable 1.0 GHz to 3.0 GHz Band Pass Filter


Recommended for New Designs


Product Options

Surface Mount 4mm x 6mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM3103 is a miniature filter IC containing digitally tunable bandpass filters covering the 1.0 GHz to 3.0 GHz frequency range. Independent 4 bit digital control of the low-pass and high-pass corners provide control of both center frequency and bandwidth. AM3103 is packaged in a 4mm x 6mm QFN and operates over the -40C to +85C temperature range.



The AM3103 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3065 that covers 6.0 GHz to 12.0 GHz, the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Product Overview

AM3103 is a miniature filter IC containing digitally tunable bandpass filters covering the 1.0 GHz to 3.0 GHz frequency range. Independent 4 bit digital control of the low-pass and high-pass corners provide control of both center frequency and bandwidth. AM3103 is packaged in a 4mm x 6mm QFN and operates over the -40C to +85C temperature range.

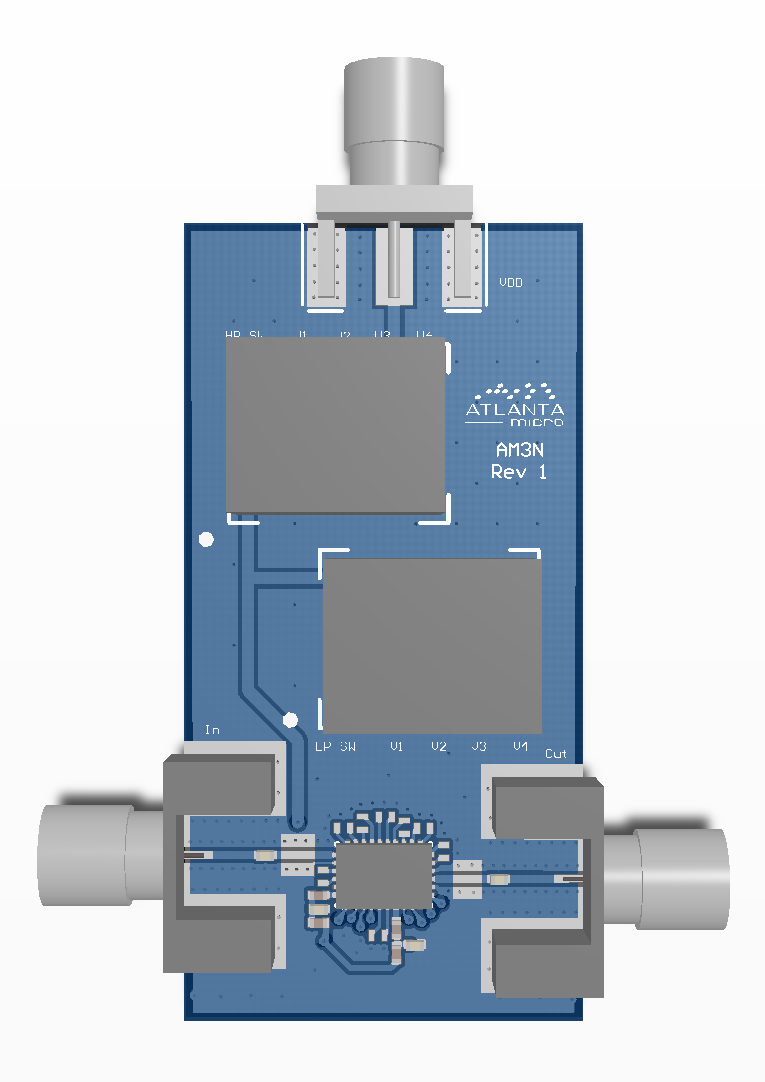

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3103 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3103.



The AM3103 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3065 that covers 6.0 GHz to 12.0 GHz, the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Product Overview

AM3103 is a miniature filter IC containing digitally tunable bandpass filters covering the 1.0 GHz to 3.0 GHz frequency range. Independent 4 bit digital control of the low-pass and high-pass corners provide control of both center frequency and bandwidth. AM3103 is packaged in a 4mm x 6mm QFN and operates over the -40C to +85C temperature range.

The AM3103 is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3103-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. AM3103 -M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3103. The AM3103 evaluation board also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3103-M without the GUI via sending commands over USB available upon request.



The AM3103 is one in a family of digitally tunable bandpass filters offered from Atlanta Micro that cover the DC to 12.0 GHz frequency range. In this family there is the AM3065 that covers 6.0 GHz to 12.0 GHz, the AM3090 that covers DC to 450 MHz, the AM3102 that covers 330 MHz to 1.2 GHz or 450 MHz to 1.5 GHz, and the AM3104 that covers 2.5 GHz to 6.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

1000

Cutoff Freq High (MHz)

3000

Insertion Loss (dB)

3

Typical Rejection (dB)

40

Package

4x6mm QFN

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

Center Frequency

Adjustable

# in Pack

1



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050
