AM1016B

20 MHz to 6 GHz Gain Block


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

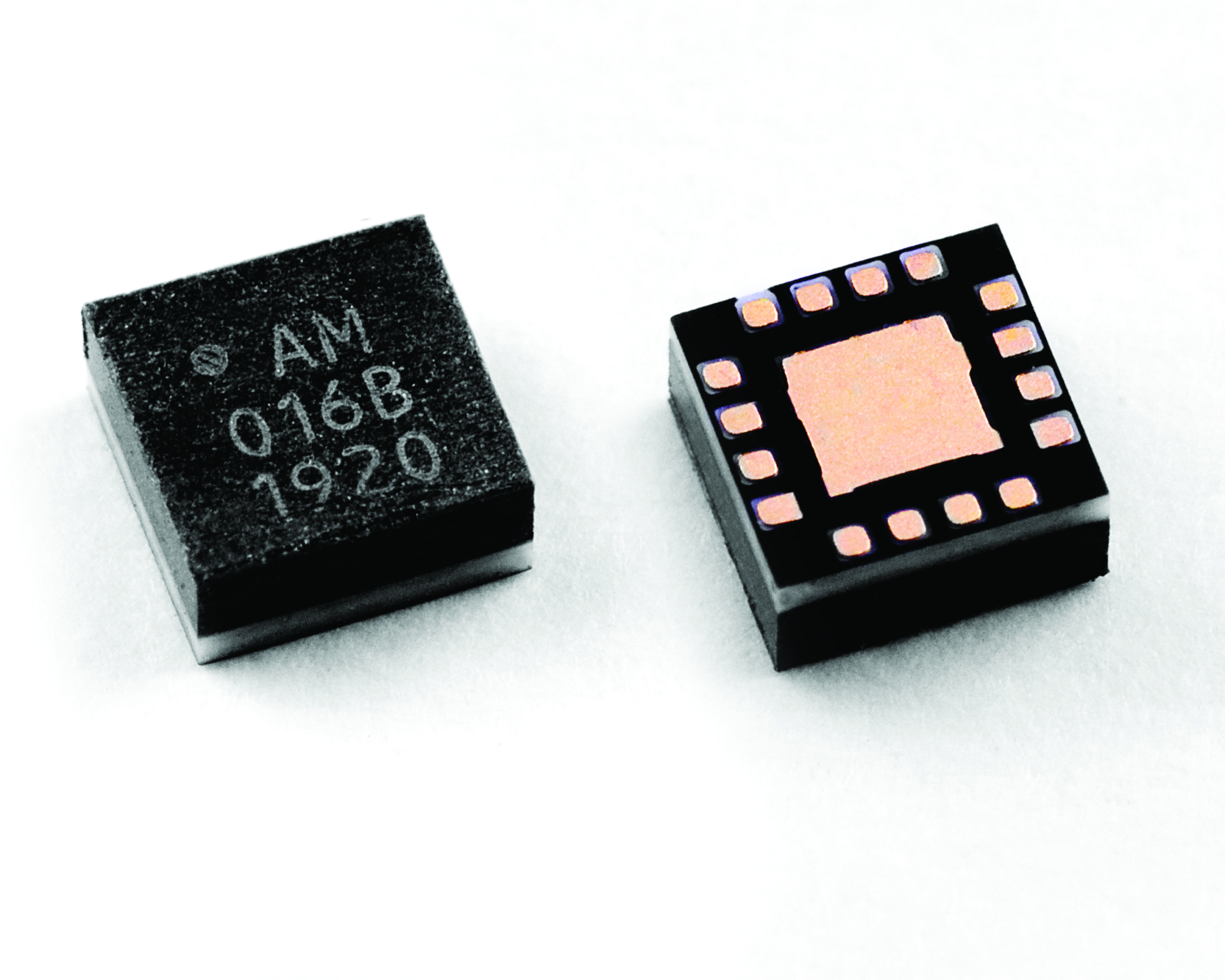

AM1016B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1016B represents a compact total PCB footprint.

Product Overview

AM1016B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1016B represents a compact total PCB footprint.

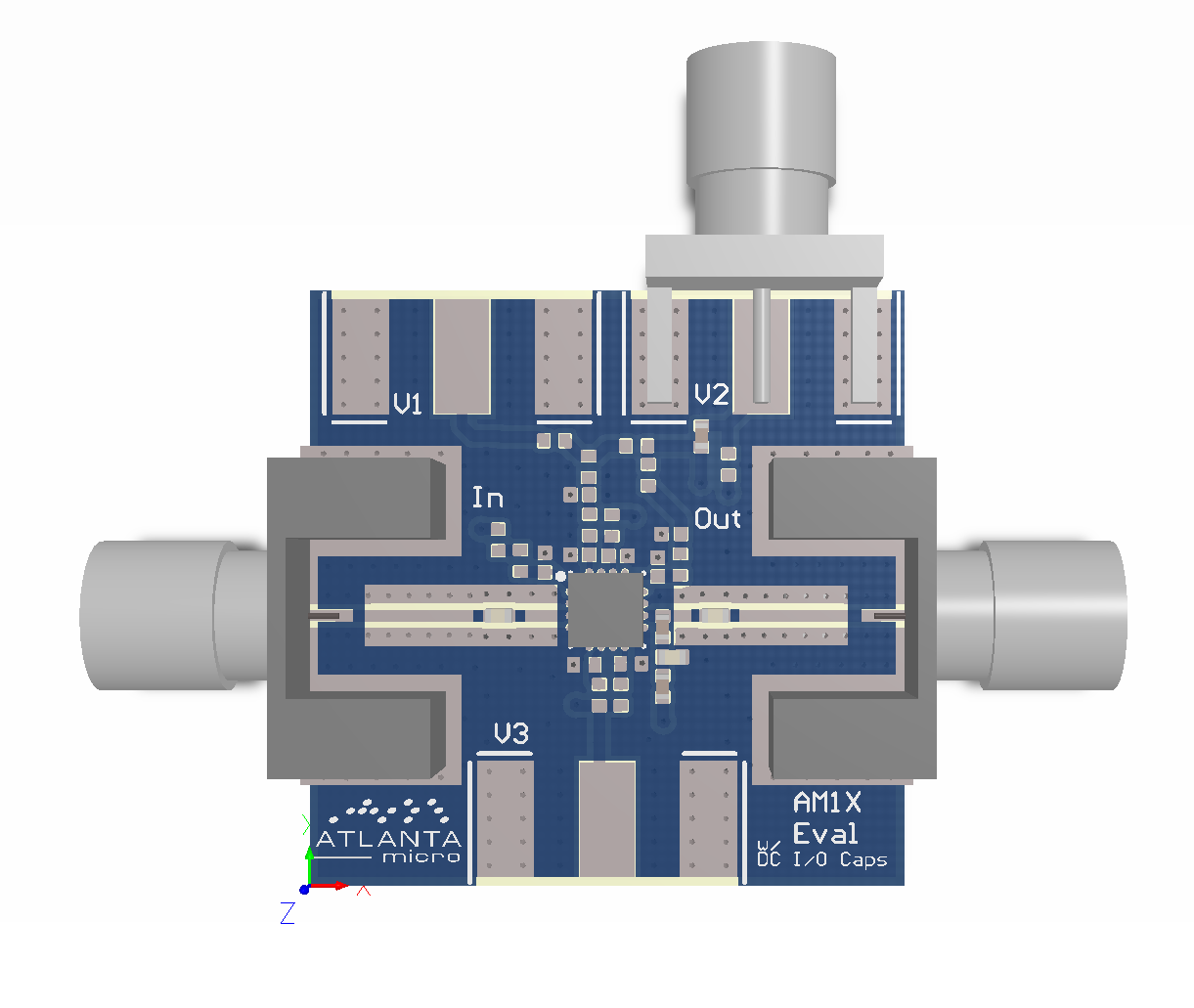

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1016B.

Product Overview

AM1016B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1016B represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Gain Block

Freq. (GHz)

0.02 - 6

Gain (dB)

14

NF (dB)

2.3

OIP3 (dBm)

33

Surface Mount

3mm QFN

Supply (+V)

3.3

P1dB (dBm)

17

Supply (mA)

53

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33
