AM1016A

20 MHz to 6 GHz Gain Block


Recommended for New Designs


Product Options

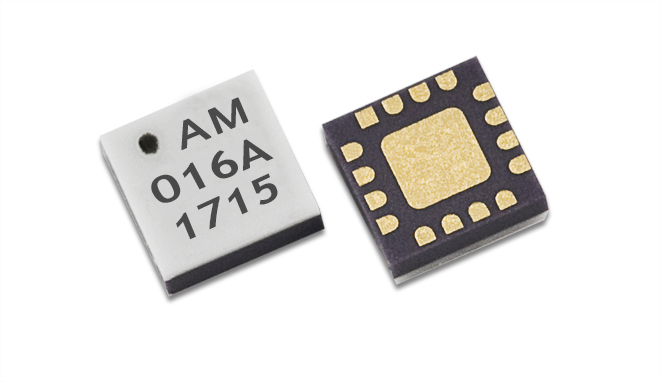

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM1016A is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range.  It operates from a +3.3 VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1016A represents a compact total PCB footprint.

Product Overview

AM1016A is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range.  It operates from a +3.3 VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1016A represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1016A.

Product Overview

AM1016A is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range.  It operates from a +3.3 VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1016A represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Gain Block

Freq. (GHz)

0.02 - 6

Gain (dB)

15

NF (dB)

2.5

OIP3 (dBm)

30

Surface Mount

3mm QFN

Supply (+V)

3.3

P1dB (dBm)

18

Supply (mA)

55

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33

AM1016A

20 MHz to 6 GHz Gain Block


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM1016A is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range.  It operates from a +3.3 VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1016A represents a compact total PCB footprint.

Product Overview

AM1016A is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range.  It operates from a +3.3 VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1016A represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1016A.

Product Overview

AM1016A is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range.  It operates from a +3.3 VDC supply and exhibits a flat frequency response and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1016A represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Gain Block

Freq. (GHz)

0.02 - 6

Gain (dB)

15

NF (dB)

2.5

OIP3 (dBm)

30

Surface Mount

3mm QFN

Supply (+V)

3.3

P1dB (dBm)

18

Supply (mA)

55

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33
