New – Connectorized SPDT Switch Modules to 26.5 GHz

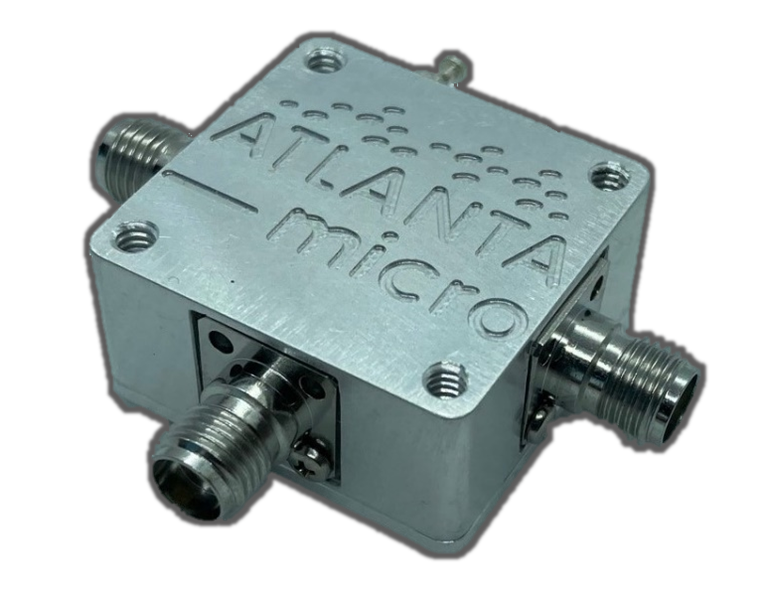

SPDT switch moduleSPDT switch module

Atlanta Micro announces the product release of new connectorized SPDT switch modules:

  • AM6002A-M, 160 kHz – 14 GHz, Reflective
  • AM6012-M, 160 kHz – 18 GHz, Reflective
  • AM6016-M, 160 kHz– 26.5 GHz, Reflective
  • AM6031-M, 160 kHz – 20 GHz, Non-Reflective

All switch modules provide low insertion loss, flat frequency response, high isolation, and operate from a +3.3V to +5.0V supply with positive logic control.  The modules are AC coupled and specified to operate over the ‑40C to +85C temperature range.

The modules come with field replaceable SMA Type K (2.9) input and output connectors in a rugged aluminum enclosure. Power and control are provided through two input pins with feed-through capacitors and a corresponding ground pin connection. Modules also include four mounting holes sized 4-40 that are threaded fully through from the bottom side of the module.
