AtlantaMicro

AM6016

DC to 26.5 GHz Reflective SPDT


Recommended for New Designs


Product Options

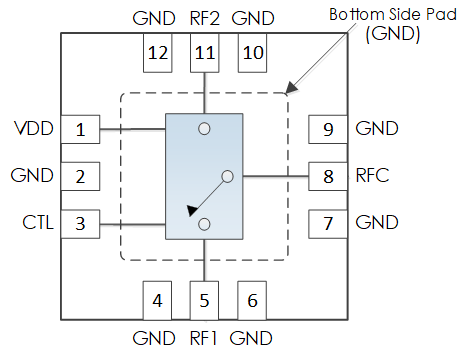

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM6016 is a reflective single-pole double-throw (SPDT) switch covering the DC to 26.5 GHz frequency range and was designed for use in a wide range of wireless applications.

The AM6016 provides low insertion loss, a flat frequency response, high linearity, high isolation, and fast switching speed making this switch ideal for high frequency low power transmit/receive applications. The AM6016 requires only a single positive supply and a single positive control voltage to switch the two paths between a low loss thru path or a high isolation state. With an operating temperature range of -40C to +85C, internal 50Ω matching, internal decoder circuitry, and low current draw all packaged in a 3mm QFN, the AM6016 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).



Product Overview

AM6016 is a reflective single-pole double-throw (SPDT) switch covering the DC to 26.5 GHz frequency range and was designed for use in a wide range of wireless applications.

The AM6016 provides low insertion loss, a flat frequency response, high linearity, high isolation, and fast switching speed making this switch ideal for high frequency low power transmit/receive applications. The AM6016 requires only a single positive supply and a single positive control voltage to switch the two paths between a low loss thru path or a high isolation state. With an operating temperature range of -40C to +85C, internal 50Ω matching, internal decoder circuitry, and low current draw all packaged in a 3mm QFN, the AM6016 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6016 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6016.



Specifications

Function

SPDT, Reflective

Freq. (GHz)

DC - 26.5

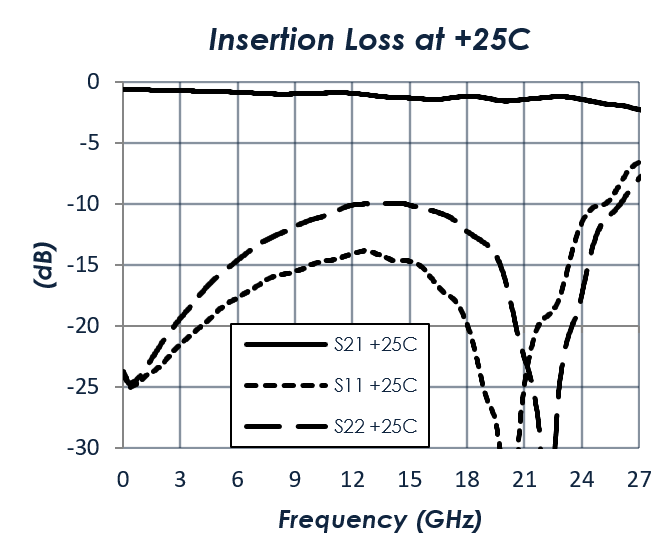

Insertion Loss (dB)

1.2

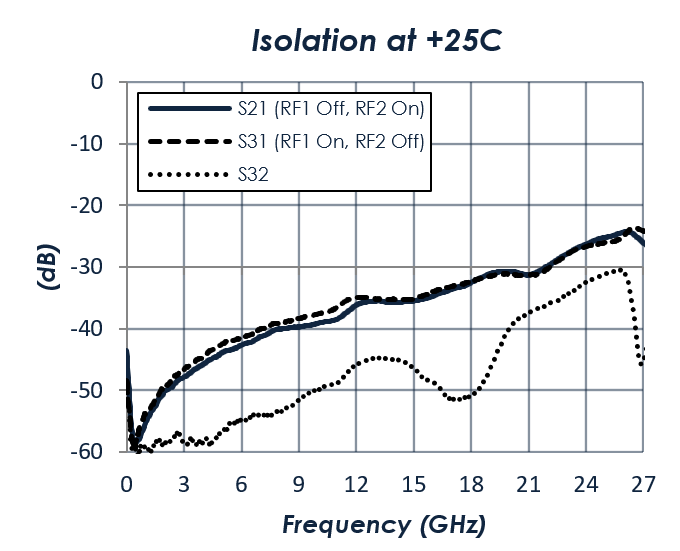

Isolation (dB)

30

IIP3 (dBm)

40

Supply (+V)

3.3 to 5.0

Supply (mA)

1

Control

3.0 to 5.0

Package

3mm QFN



ECCN: EAR99

Harmonized Code: 8542.39

AM6016

DC to 26.5 GHz Reflective SPDT


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM6016 is a reflective single-pole double-throw (SPDT) switch covering the DC to 26.5 GHz frequency range and was designed for use in a wide range of wireless applications.

The AM6016 provides low insertion loss, a flat frequency response, high linearity, high isolation, and fast switching speed making this switch ideal for high frequency low power transmit/receive applications. The AM6016 requires only a single positive supply and a single positive control voltage to switch the two paths between a low loss thru path or a high isolation state. With an operating temperature range of -40C to +85C, internal 50Ω matching, internal decoder circuitry, and low current draw all packaged in a 3mm QFN, the AM6016 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).



Product Overview

AM6016 is a reflective single-pole double-throw (SPDT) switch covering the DC to 26.5 GHz frequency range and was designed for use in a wide range of wireless applications.

The AM6016 provides low insertion loss, a flat frequency response, high linearity, high isolation, and fast switching speed making this switch ideal for high frequency low power transmit/receive applications. The AM6016 requires only a single positive supply and a single positive control voltage to switch the two paths between a low loss thru path or a high isolation state. With an operating temperature range of -40C to +85C, internal 50Ω matching, internal decoder circuitry, and low current draw all packaged in a 3mm QFN, the AM6016 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6016 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6016.



Specifications

Function

SPDT, Reflective

Freq. (GHz)

DC - 26.5

Insertion Loss (dB)

1.2

Isolation (dB)

30

IIP3 (dBm)

40

Supply (+V)

3.3 to 5.0

Supply (mA)

1

Control

3.0 to 5.0

Package

3mm QFN



ECCN: EAR99

Harmonized Code: 8542.39
