AtlantaMicro

AM6031

DC to 20 GHz Absorptive SPDT


Recommended for New Designs


Product Options

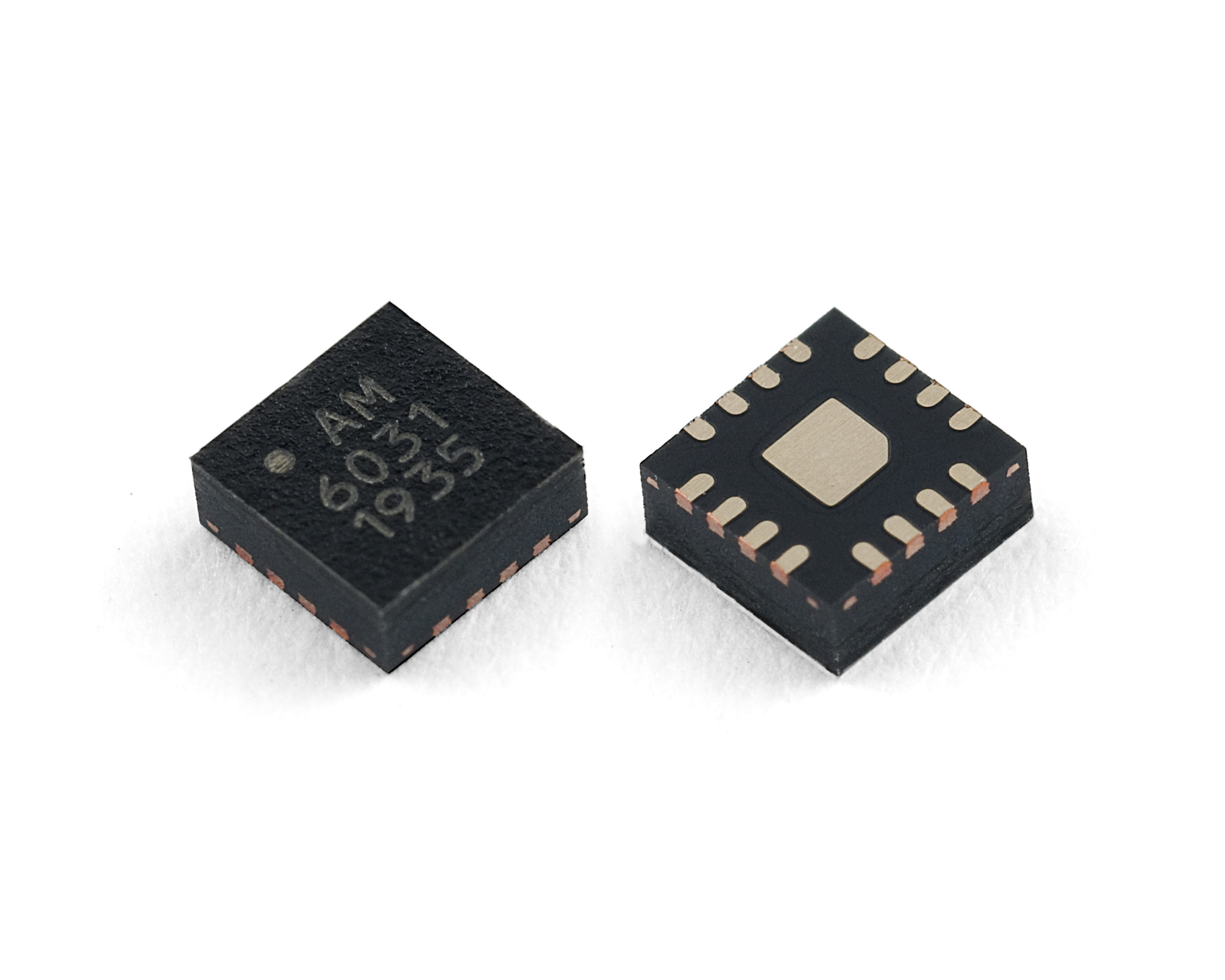

Surface Mount 3mm x 3mm QFN

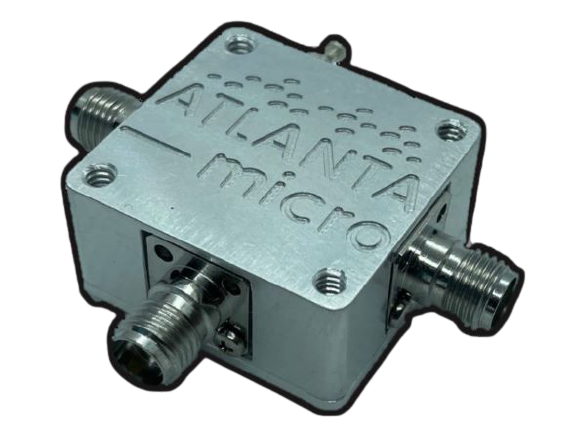

Connectorized Evaluation Board

Product Overview

AM6031 is a Single-Pole Double-Throw (SPDT) absorptive switch covering the DC to 20 GHz frequency range. The positive control device provides low insertion loss, a flat frequency response, high linearity, and high isolation over the operating temperature range of -40C to +85C. With internal 50Ω matching, internal decoder circuitry,  and low current draw all packaged in a 3mm QFN, the AM6031 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).

Product Overview

AM6031 is a Single-Pole Double-Throw (SPDT) absorptive switch covering the DC to 20 GHz frequency range. The positive control device provides low insertion loss, a flat frequency response, high linearity, and high isolation over the operating temperature range of -40C to +85C. With internal 50Ω matching, internal decoder circuitry,  and low current draw all packaged in a 3mm QFN, the AM6031 represents a compact total PCB footprint with minimal size, weight, and power (low SWaP).

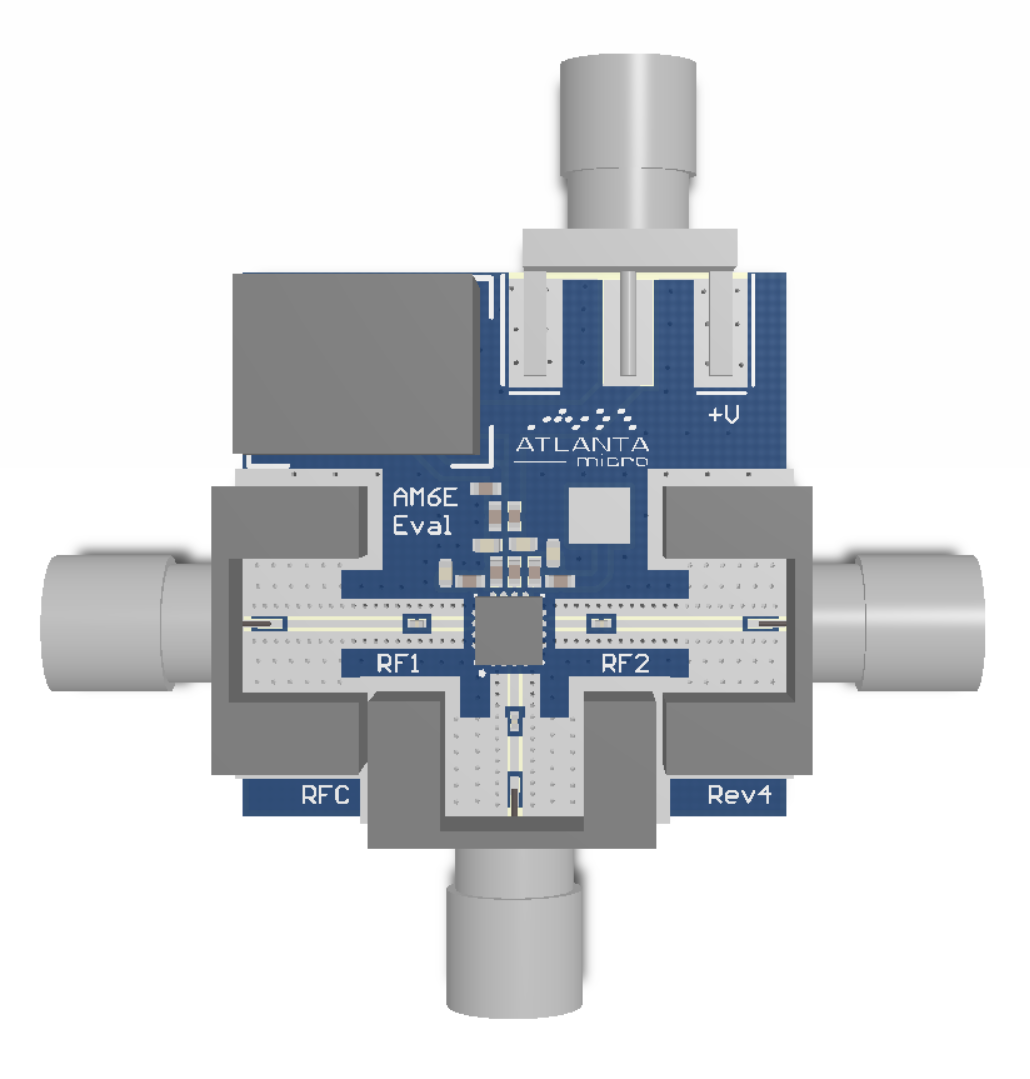

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6031 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6031.

Specifications

Function

SPDT, Absorptive

Freq. (GHz)

DC - 20

Insertion Loss (dB)

1.5

Isolation (dB)

43

IIP3 (dBm)

45

Supply (+V)

3.3 to 5.0

Supply (mA)

1

Control

3.0 to 5.0

Package

3mm QFN



ECCN: EAR99

Harmonized Code: 8542.39

AM6031

DC to 20 GHz Absorptive SPDT


Recommended for New Designs

Add To Quote
