AtlantaMicro

AM3060

Digitally Tunable 320 MHz to 6.5 GHz Band Pass Filter


Recommended for New Designs


Product Options

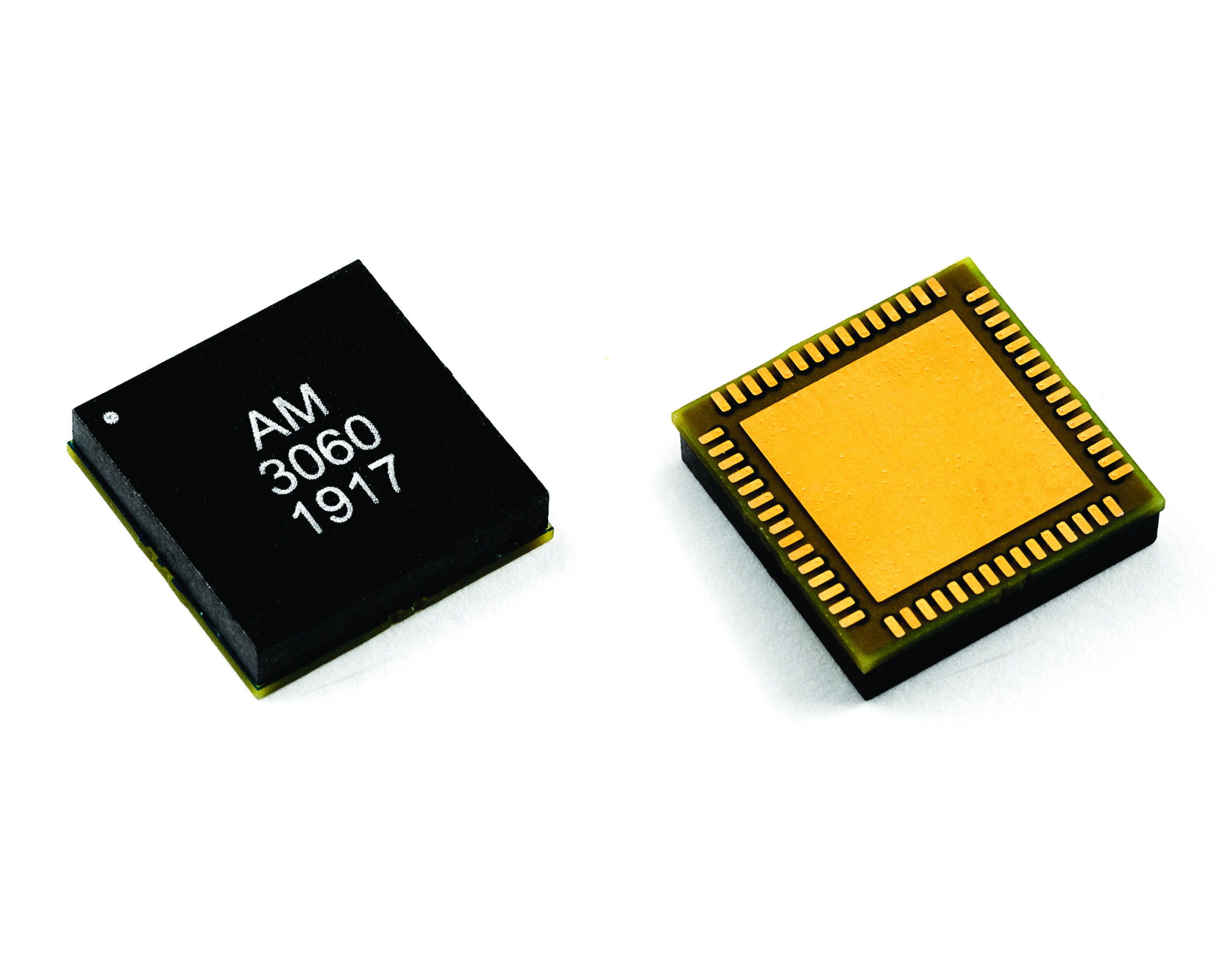

Surface Mount 12.5mm x 12.5mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module
Connectorized RF Shielded Module

Product Overview

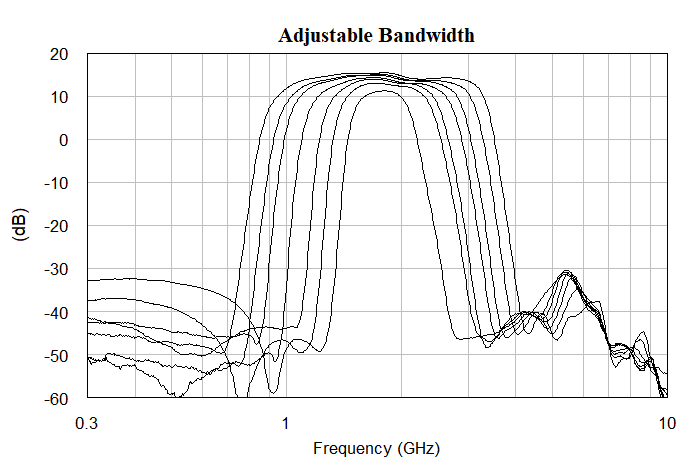

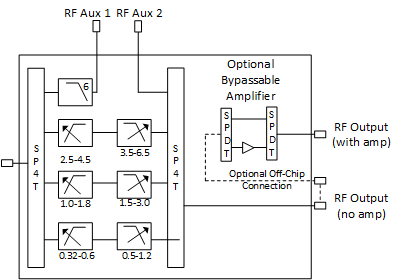

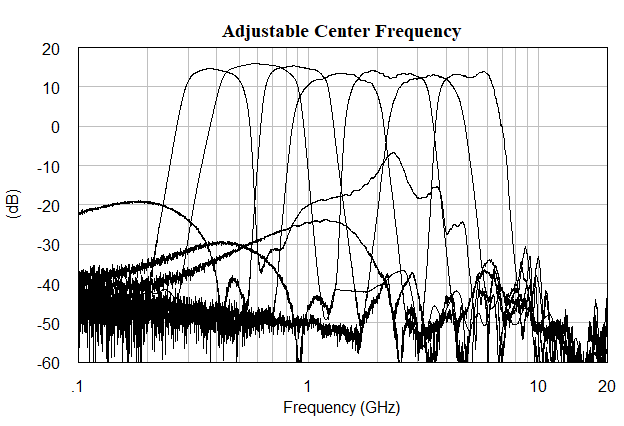

AM3060 is a miniature digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 12.5 x 12.5 mm package. The device provides a bypassable amplifier stage and ports for a filter bypass path. The AM3060 is an excellent front-end for a broadband receiver or transceiver providing the ultimate flexibility of center frequency and bandwidth adjustment.

The AM3060 is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3060-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications.



Don’t need the bypassable amplifier?

If you do not need the bypassable amplifier but would like a filter with similar function, we now offer the AM3152. This filter is a 400 MHz to 8 GHz digitally tunable band pass filter bank in a 6mm ceramic QFN. The AM3152 offers a smaller footprint, lower profile, a more robust package, lower loss due to the removal of the amp, and offers on chip power and control line filtering for applications that are tight on space. The AM3152 represents the latest of Atlanta Micro’s offerings and is an attractive choice for demanding applications requiring low SWaP components.

Product Overview

AM3060 is a miniature digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 12.5 x 12.5 mm package. The device provides a bypassable amplifier stage and ports for a filter bypass path. The AM3060 is an excellent front-end for a broadband receiver or transceiver providing the ultimate flexibility of center frequency and bandwidth adjustment.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3060 evaluation board requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3060 . The AM3060 evaluation board also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3060 device and a trace calibration path.



Don’t need the bypassable amplifier?

If you do not need the bypassable amplifier but would like a filter with similar function, we now offer the AM3152. This filter is a 400 MHz to 8 GHz digitally tunable band pass filter bank in a 6mm ceramic QFN. The AM3152 offers a smaller footprint, lower profile, a more robust package, lower loss due to the removal of the amp, and offers on chip power and control line filtering for applications that are tight on space. The AM3152 represents the latest of Atlanta Micro’s offerings and is an attractive choice for demanding applications requiring low SWaP components.

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

The AM3060-M65 includes the filters of the AM3060 with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

The AM3060-M81 includes the filters of the AM3060 with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3060-M81 provides lower gain and higher linearity than the AM3060-M65.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

320

Cutoff Freq High (MHz)

6500

Insertion Loss (dB)

4

Typical Rejection (dB)

60

Package

12.5mm QFN

Bandwidth Low (MHz)

180

Bandwidth High (MHz)

4000

Center Frequency

400 to 5500

# in Pack

3 + Bypass



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050

AM3060

Digitally Tunable 320 MHz to 6.5 GHz Band Pass Filter


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 12.5mm x 12.5mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module
Connectorized RF Shielded Module

Product Overview

AM3060 is a miniature digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 12.5 x 12.5 mm package. The device provides a bypassable amplifier stage and ports for a filter bypass path. The AM3060 is an excellent front-end for a broadband receiver or transceiver providing the ultimate flexibility of center frequency and bandwidth adjustment.

The AM3060 is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3060-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications.



Don’t need the bypassable amplifier?

If you do not need the bypassable amplifier but would like a filter with similar function, we now offer the AM3152. This filter is a 400 MHz to 8 GHz digitally tunable band pass filter bank in a 6mm ceramic QFN. The AM3152 offers a smaller footprint, lower profile, a more robust package, lower loss due to the removal of the amp, and offers on chip power and control line filtering for applications that are tight on space. The AM3152 represents the latest of Atlanta Micro’s offerings and is an attractive choice for demanding applications requiring low SWaP components.

Product Overview

AM3060 is a miniature digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 12.5 x 12.5 mm package. The device provides a bypassable amplifier stage and ports for a filter bypass path. The AM3060 is an excellent front-end for a broadband receiver or transceiver providing the ultimate flexibility of center frequency and bandwidth adjustment.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3060 evaluation board requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3060 . The AM3060 evaluation board also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3060 device and a trace calibration path.



Don’t need the bypassable amplifier?

If you do not need the bypassable amplifier but would like a filter with similar function, we now offer the AM3152. This filter is a 400 MHz to 8 GHz digitally tunable band pass filter bank in a 6mm ceramic QFN. The AM3152 offers a smaller footprint, lower profile, a more robust package, lower loss due to the removal of the amp, and offers on chip power and control line filtering for applications that are tight on space. The AM3152 represents the latest of Atlanta Micro’s offerings and is an attractive choice for demanding applications requiring low SWaP components.

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

The AM3060-M65 includes the filters of the AM3060 with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

The AM3060-M81 includes the filters of the AM3060 with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3060-M81 provides lower gain and higher linearity than the AM3060-M65.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

320

Cutoff Freq High (MHz)

6500

Insertion Loss (dB)

4

Typical Rejection (dB)

60

Package

12.5mm QFN

Bandwidth Low (MHz)

180

Bandwidth High (MHz)

4000

Center Frequency

400 to 5500

# in Pack

3 + Bypass



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050
