AtlantaMicro

AM3152

Digitally Tunable 400 MHz to 8 GHz Bandpass


Recommended for New Designs


Product Options

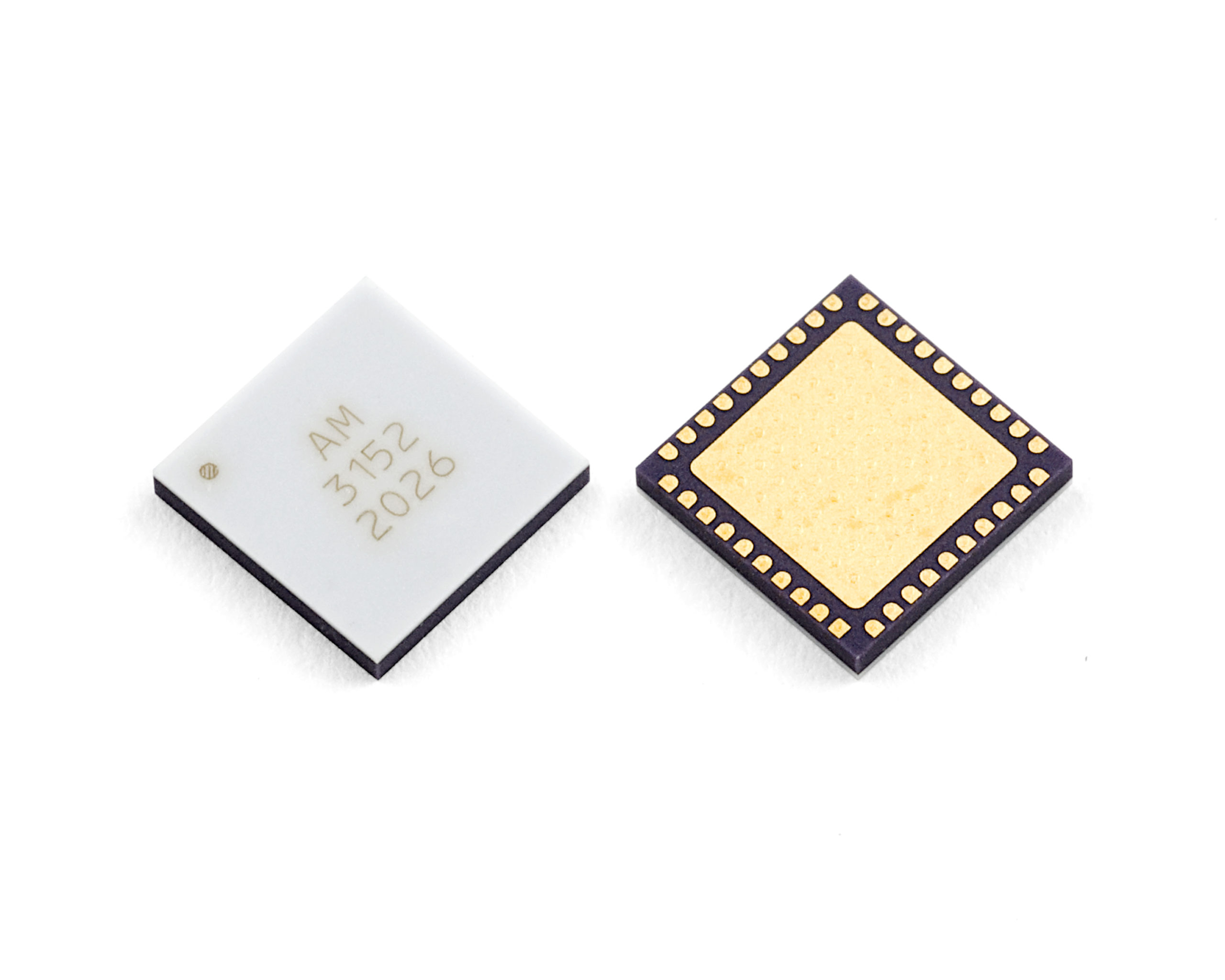

Surface Mount 6mm x 6mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

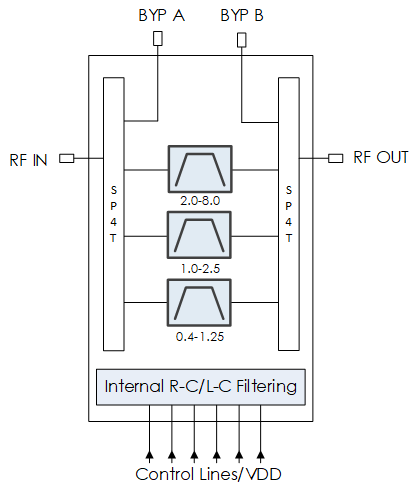

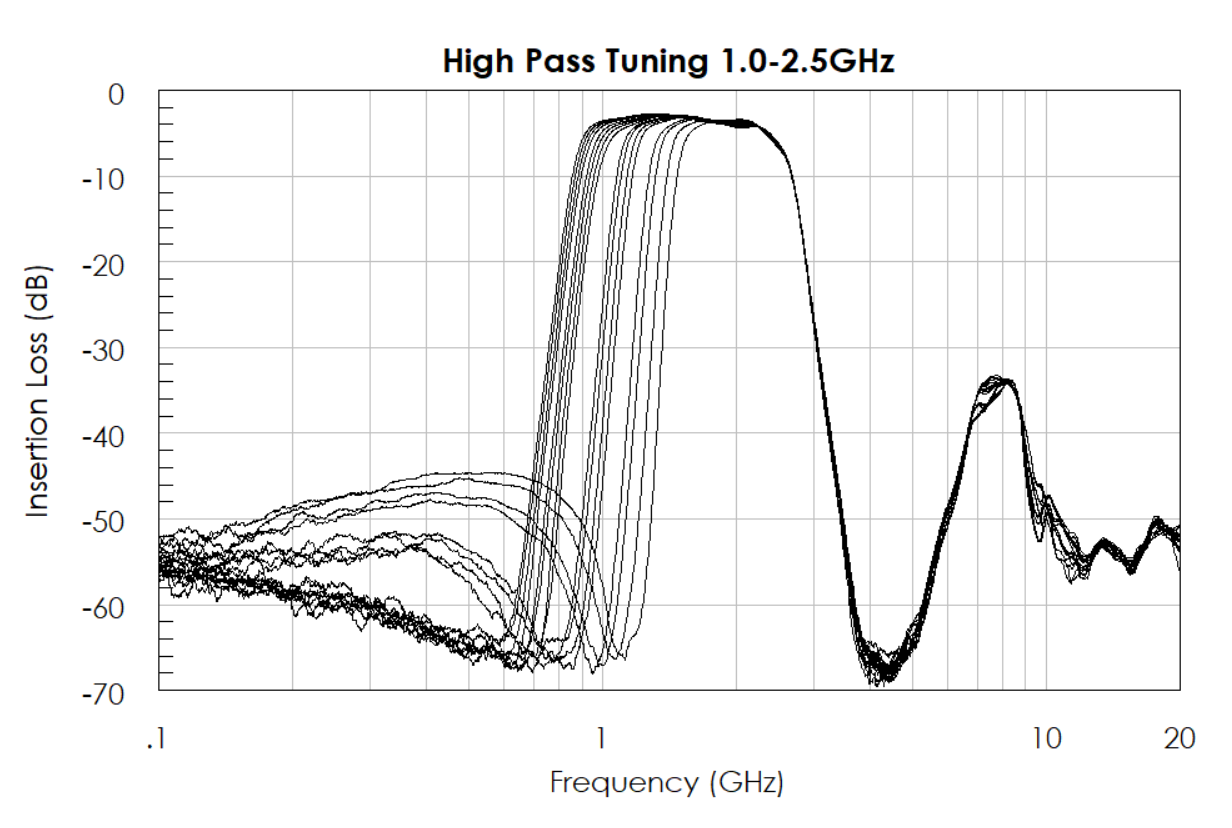

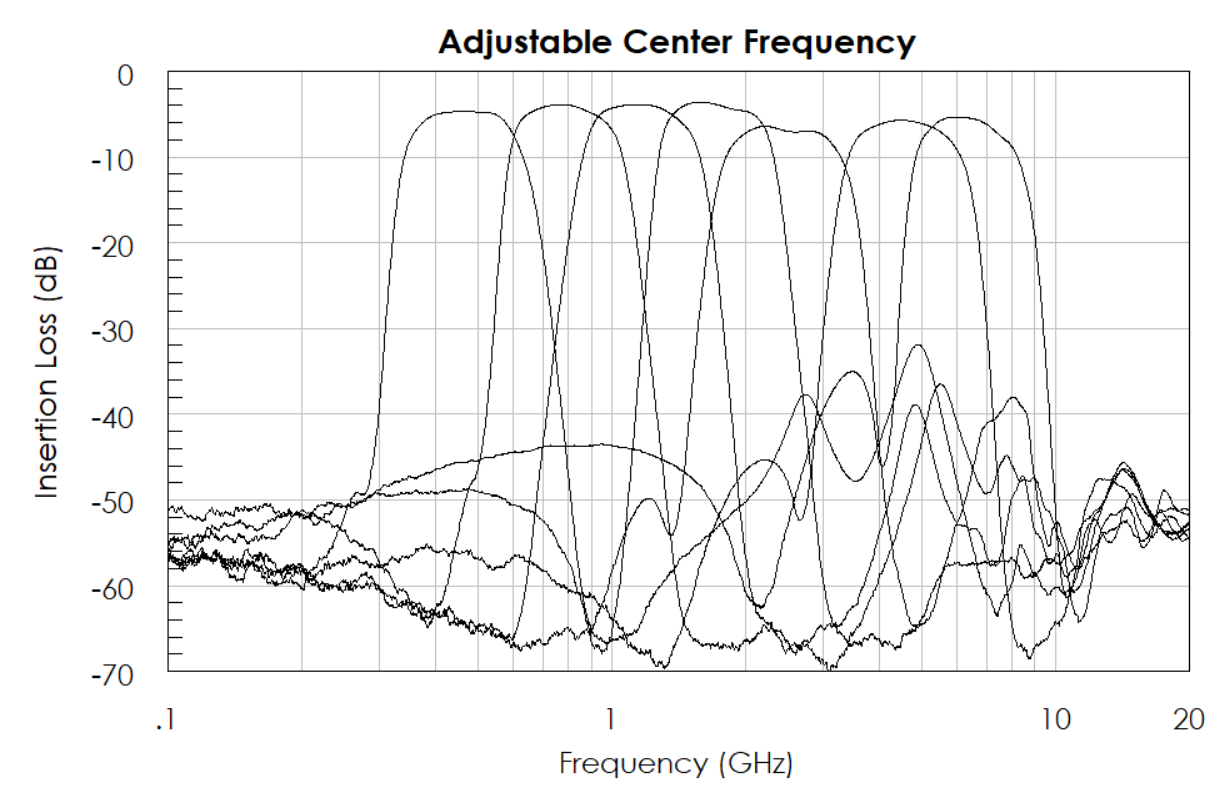

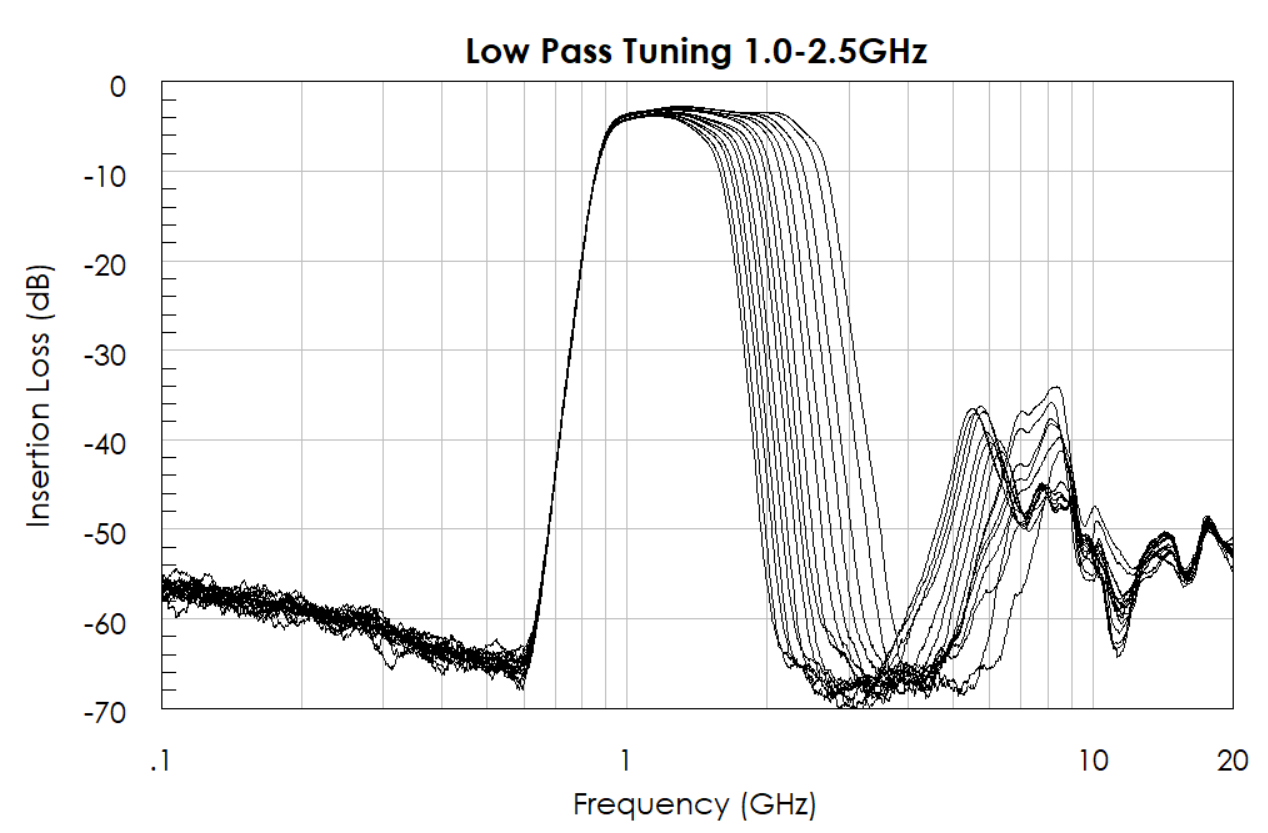

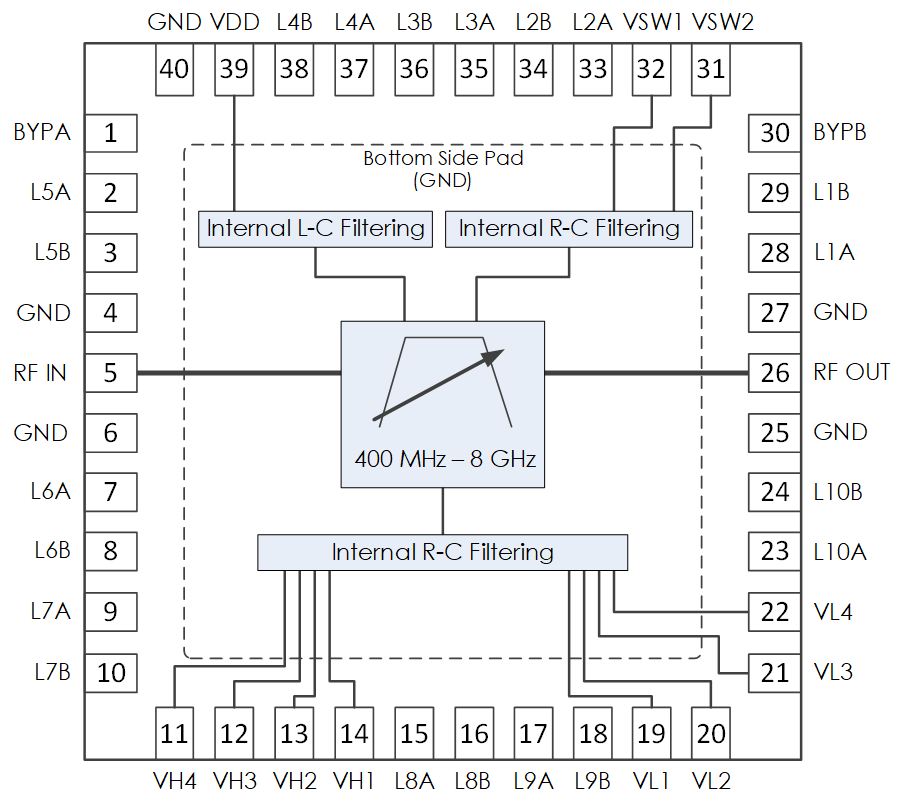

AM3152 is a miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device provides 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 6mm ceramic QFN package. The AM3152 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3152 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

Product Overview

AM3152 is a miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device provides 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 6mm ceramic QFN package. The AM3152 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3152 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

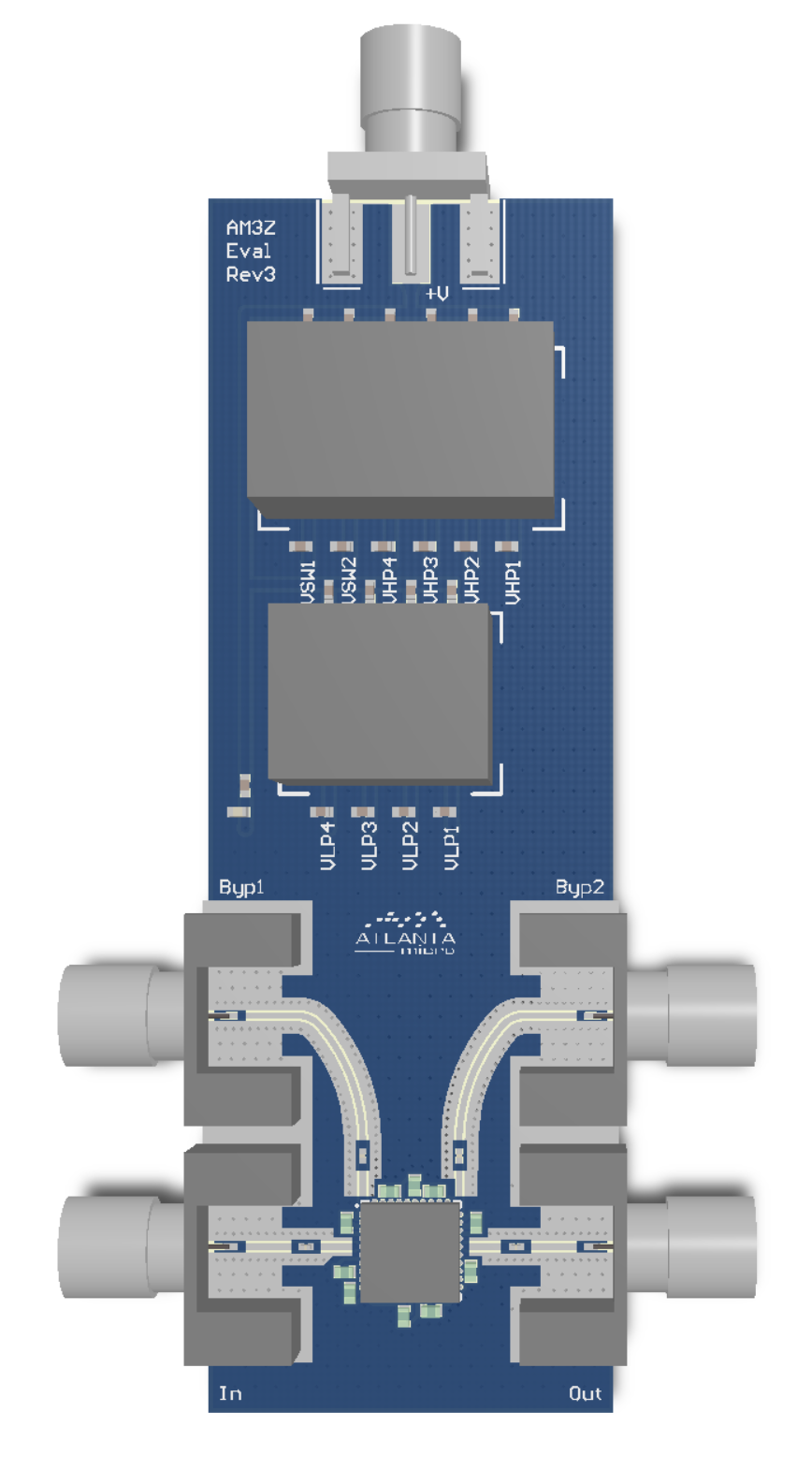

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3152 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3152.

Product Overview

AM3152 is a miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device provides 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 6mm ceramic QFN package. The AM3152 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3152 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

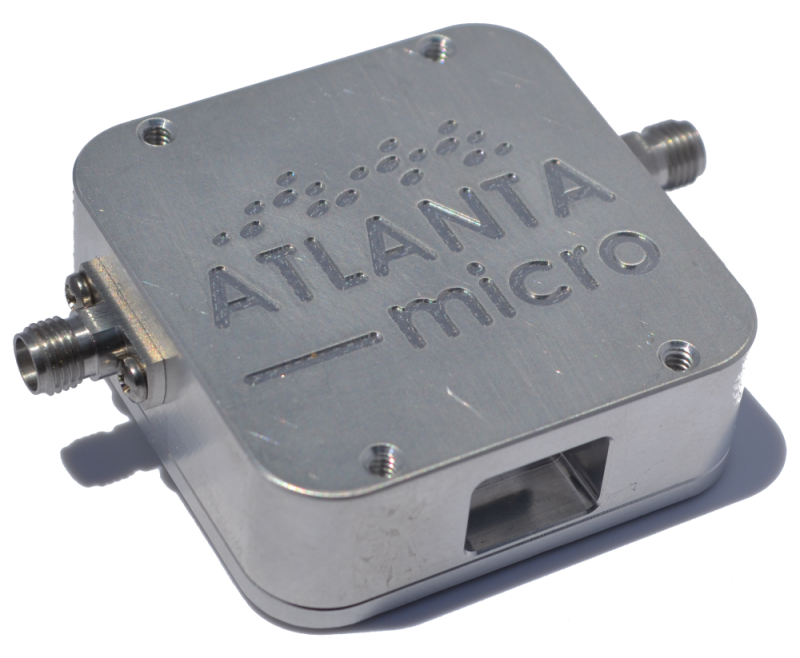

The AM3152 is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3152-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. The AM3152 filter bypass path is directly connected in the AM3152-M allowing signals to pass through from 10 MHz to 8 GHz. AM3152-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3152. The AM3152 module also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3152-M without the GUI via sending commands over USB available upon request.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

400

Cutoff Freq High (MHz)

8000

Insertion Loss (dB)

4.5

Typical Rejection (dB)

50

Package

6mm QFN

Bandwidth Low (MHz)

Tunable

Center Frequency

Tunable

# in Pack

3 + Bypass



ECCN: In Process

Harmonized Code: In process

AM3152

Digitally Tunable 400 MHz to 8 GHz Bandpass


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 6mm x 6mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM3152 is a miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device provides 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 6mm ceramic QFN package. The AM3152 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3152 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

Product Overview

AM3152 is a miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device provides 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 6mm ceramic QFN package. The AM3152 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3152 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3152 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3152.

Product Overview

AM3152 is a miniature digitally tunable bandpass filter bank covering the 0.4 to 8 GHz frequency range. The device provides 3 filter bands each with 256 discrete tune states and a low-loss filter bypass path contained in a 6mm ceramic QFN package. The AM3152 also offers on chip power and control line filtering to help reduce component count while offering maximum space savings. AM3152 is an excellent front-end for a receiver providing both low insertion loss and valuable flexibility for tuning center frequency and bandwidth. Its small size, weight, and power consumption make it an attractive choice for demanding applications requiring low SWaP components.

The AM3152 is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3152-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. The AM3152 filter bypass path is directly connected in the AM3152-M allowing signals to pass through from 10 MHz to 8 GHz. AM3152-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3152. The AM3152 module also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3152-M without the GUI via sending commands over USB available upon request.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

400

Cutoff Freq High (MHz)

8000

Insertion Loss (dB)

4.5

Typical Rejection (dB)

50

Package

6mm QFN

Bandwidth Low (MHz)

Tunable

Center Frequency

Tunable

# in Pack

3 + Bypass



ECCN: In Process

Harmonized Code: In process
