AtlantaMicro

AM3060-M

Digitally Tunable 320 MHz to 6.5 GHz Band Pass Filter


Recommended for New Designs


Product Options

Connectorized RF Shielded Module
Connectorized RF Shielded Module

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

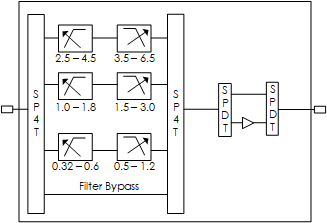

The AM3060-M65 includes the filters of the AM3060 with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

The AM3060 is also available as a standalone 12mm 60 Lead QFN.

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

The AM3060-M81 includes the filters of the AM3060 with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3060-M81 provides lower gain and higher linearity than the AM3060-M65.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

The AM3060 is also available as a standalone 12mm 60 Lead QFN.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

320

Cutoff Freq High (MHz)

6500

Insertion Loss (dB)

4

Typical Rejection (dB)

60

Package

2.1" x 2.1" x 0.65" RF Shielded Module

Bandwidth Low (MHz)

180

Bandwidth High (MHz)

4000

Center Frequency

400 to 5500

# in Pack

3 + Bypass



ECCN: 3A001.b.5

Harmonized Code: 8542.39

AM3060-M

Digitally Tunable 320 MHz to 6.5 GHz Band Pass Filter


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Connectorized RF Shielded Module
Connectorized RF Shielded Module

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

The AM3060-M65 includes the filters of the AM3060 with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

The AM3060 is also available as a standalone 12mm 60 Lead QFN.

Product Overview

AM3060-M is a RF-shielded module offering a digitally tunable filter bank covering the 320 MHz to 6500 MHz frequency range with adjustable bandwidth in a 2.10″ x 2.10″ x 0.65″ aluminum housing. The device provides a bypassable amplifier stage, an integrated filter bypass path and supports both transmit and receive applications. The AM3060-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin.

The AM3060-M81 includes the filters of the AM3060 with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3060 is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3060-M81 provides lower gain and higher linearity than the AM3060-M65.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

The AM3060 is also available as a standalone 12mm 60 Lead QFN.

Specifications

Function

Digitally Tunable Bandpass

Cutoff Freq Low (MHz)

320

Cutoff Freq High (MHz)

6500

Insertion Loss (dB)

4

Typical Rejection (dB)

60

Package

2.1" x 2.1" x 0.65" RF Shielded Module

Bandwidth Low (MHz)

180

Bandwidth High (MHz)

4000

Center Frequency

400 to 5500

# in Pack

3 + Bypass



ECCN: 3A001.b.5

Harmonized Code: 8542.39
