AtlantaMicro

AM3025A

400 MHz to 6 GHz Sub-Octave Filter Bank


Recommended for New Designs


Product Options

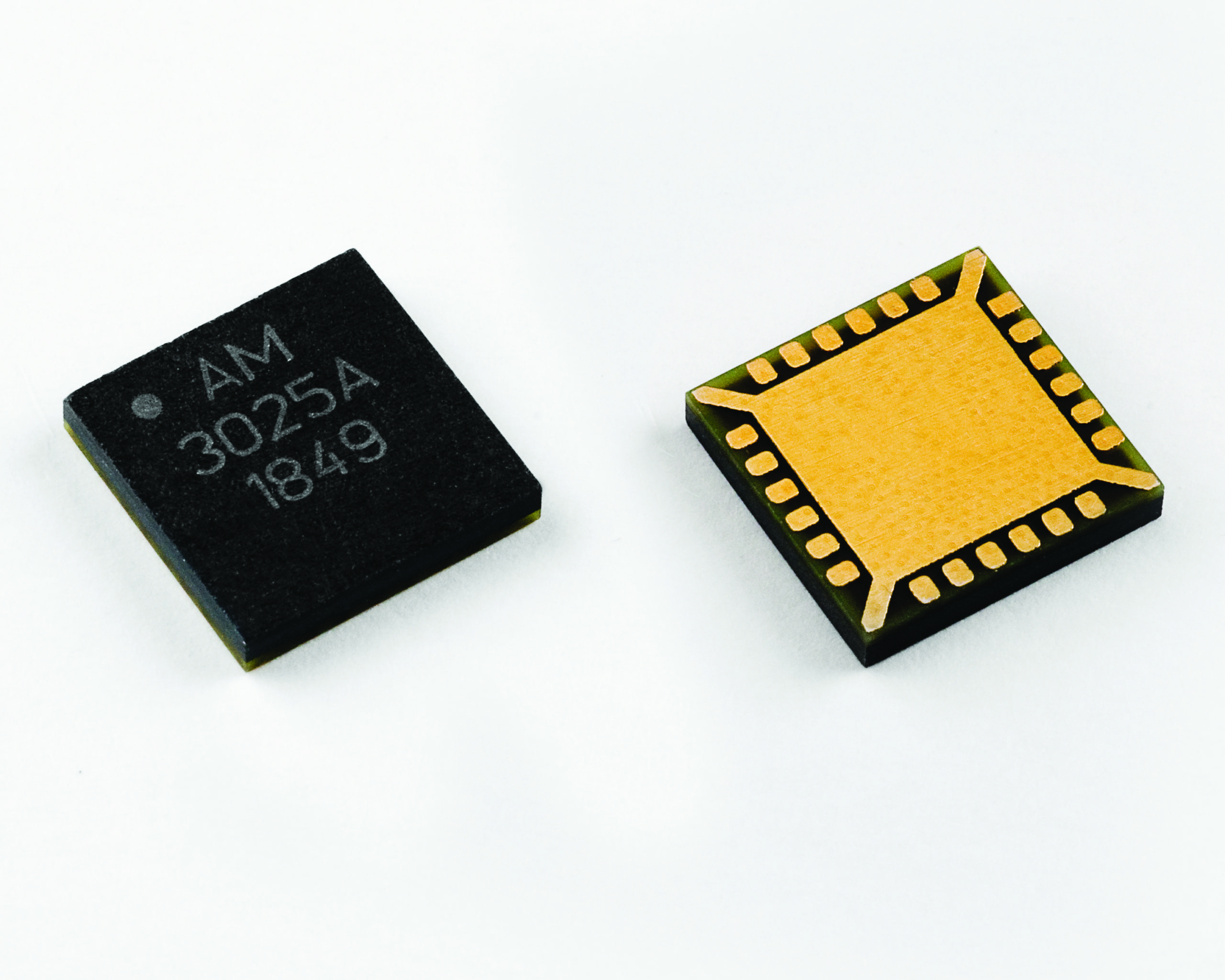

Surface Mount 9mm x 9mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board with USB Control
Connectorized RF Shielded Module

Product Overview

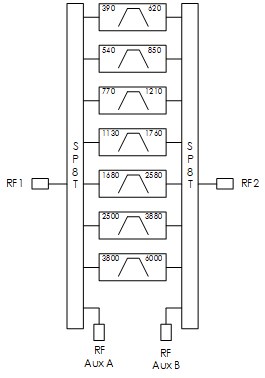

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

The AM3025A is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3025A-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications.

Product Overview

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

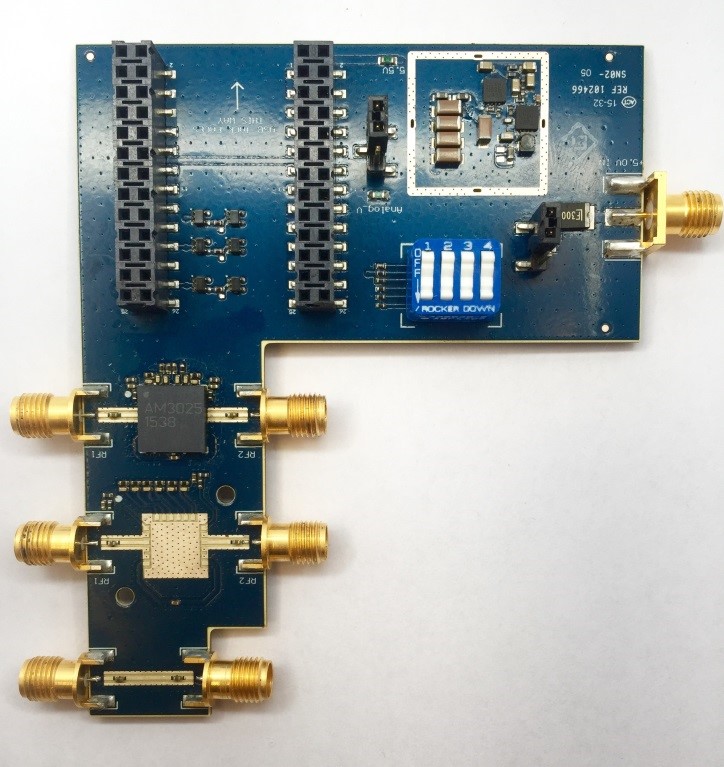

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3025A evaluation board also includes DIP switch for control of the filter band settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3025A device and a trace calibration path.

Product Overview

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3025A evaluation board with USB requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3025A. The AM3025A evaluation board  with USB also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3025A device and a trace calibration path.

Product Overview

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

The AM3025A is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3025A-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. The AM3025A filter bypass path is directly connected in the AM3025A-M allowing signals to pass through from 10 MHz to 8 GHz. AM3025A-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3025A. The AM3025A module also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3025A-M without the GUI via sending commands over USB available upon request.

Specifications

Function

Switched Sub-octave Filter Bank

Cutoff Freq Low (MHz)

400

Cutoff Freq High (MHz)

6000

Insertion Loss (dB)

6

Typical Rejection (dB)

40

Package

9mm QFN

Bandwidth Low (MHz)

230

Bandwidth High (MHz)

2200

Center Frequency

500 to 4900

# in Pack

7 + Bypass



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050

AM3025A

400 MHz to 6 GHz Sub-Octave Filter Bank


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 9mm x 9mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board with USB Control
Connectorized RF Shielded Module

Product Overview

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

The AM3025A is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3025A-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications.

Product Overview

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3025A evaluation board also includes DIP switch for control of the filter band settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3025A device and a trace calibration path.

Product Overview

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3025A evaluation board with USB requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3025A. The AM3025A evaluation board  with USB also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3025A device and a trace calibration path.

Product Overview

AM3025A is a miniature filter bank with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 9mm QFN package. The device provides ports for a filter bypass path and supports both transmit and receive applications. AM3025A is an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption (low SWAP).

The AM3025A is also available as a RF-shielded module with dimensions 1.85″ x 1.85″ x 0.65″. With field-replaceable SMA connectors and power/control over USB, the AM3025A-M is ideally suited for lab use, receiver protection, and a variety of EMI reduction applications. The AM3025A filter bypass path is directly connected in the AM3025A-M allowing signals to pass through from 10 MHz to 8 GHz. AM3025A-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3025A. The AM3025A module also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3025A-M without the GUI via sending commands over USB available upon request.

Specifications

Function

Switched Sub-octave Filter Bank

Cutoff Freq Low (MHz)

400

Cutoff Freq High (MHz)

6000

Insertion Loss (dB)

6

Typical Rejection (dB)

40

Package

9mm QFN

Bandwidth Low (MHz)

230

Bandwidth High (MHz)

2200

Center Frequency

500 to 4900

# in Pack

7 + Bypass



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050
