AM3025A-M

400 MHz to 6 GHz Sub-Octave Filter Bank


Recommended for New Designs


Product Overview

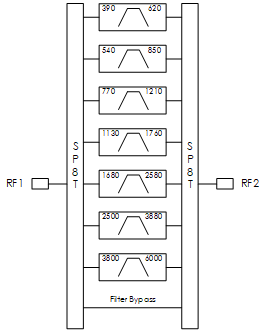

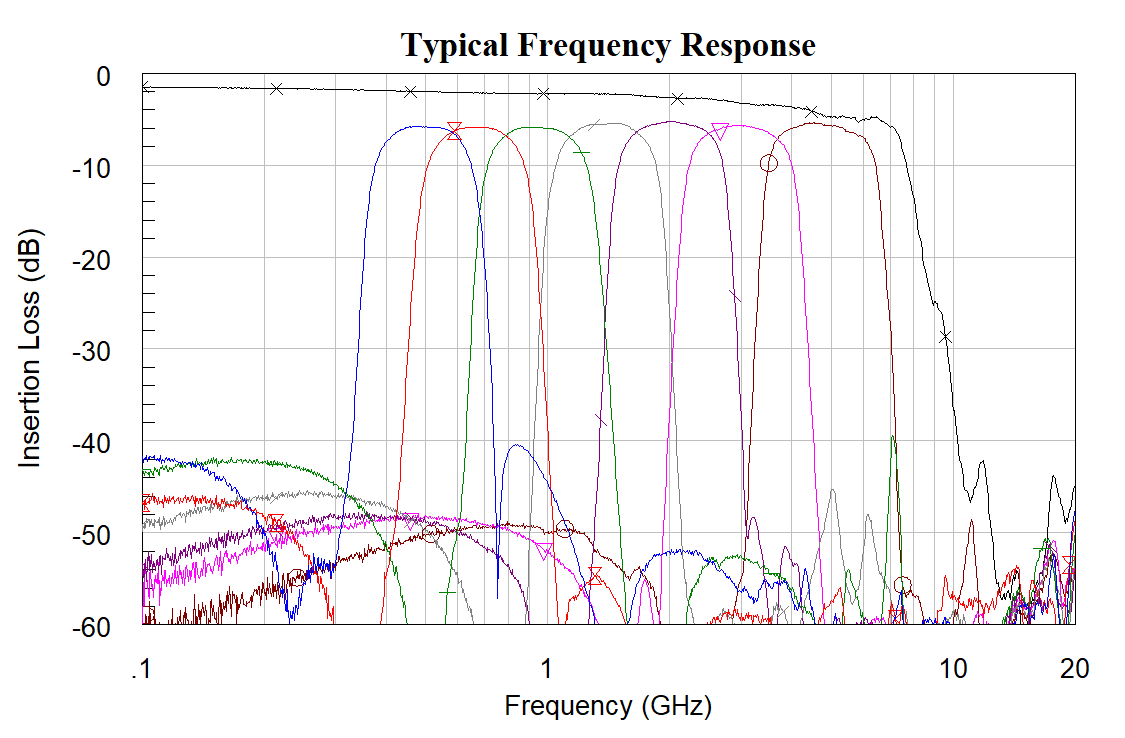

AM3025A-M is a RF-shielded module with 7 sub-octave filters covering the 400 MHz to 6000 MHz frequency range with full 80 MHz overlap in a 1.85″ x 1.85″ x 0.65″ aluminum housing. The device provides a filter bypass path and supports both transmit and receive applications. The AM3025A-M includes field replaceable SMA connectors and power/control over USB.

The filter bank module is ideally suited for in lab use, receiver/transmitter/transceiver protection, and a variety of EMI reduction applications.

AM3025A-M requires software control via a USB. With the module is included a graphical interface for control of the various states of the AM3025A. The AM3025A evaluation board also includes a user manual showing how to operate the board using the provided GUI.
Note: Information on how to operate the AM3025A-M without the GUI via sending commands over USB available upon request.

The AM3025A is also available as a standalone 9mm 24 Lead QFN.

Specifications

Function

Switched Sub-Octave Filter Bank Module

Cutoff Freq Low (MHz)

400

Cutoff Freq High (MHz)

6000

Insertion Loss (dB)

6

Typical Rejection (dB)

40

Package

1.85" x 1.85" x 0.65" RF Shielded Module

Bandwidth Low (MHz)

230

Bandwidth High (MHz)

2200

Center Frequency

Variable

# in Pack

7 + Bypass

Center Freq High (MHz)

4900

Center Freq Low (MHz)

500



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050
