AtlantaMicro

AM3023B-M

100 MHz to 6 GHz Sub-Octave Filter Bank w/ Bypassable Amplifier


Recommended for New Designs


Product Options

Product Overview

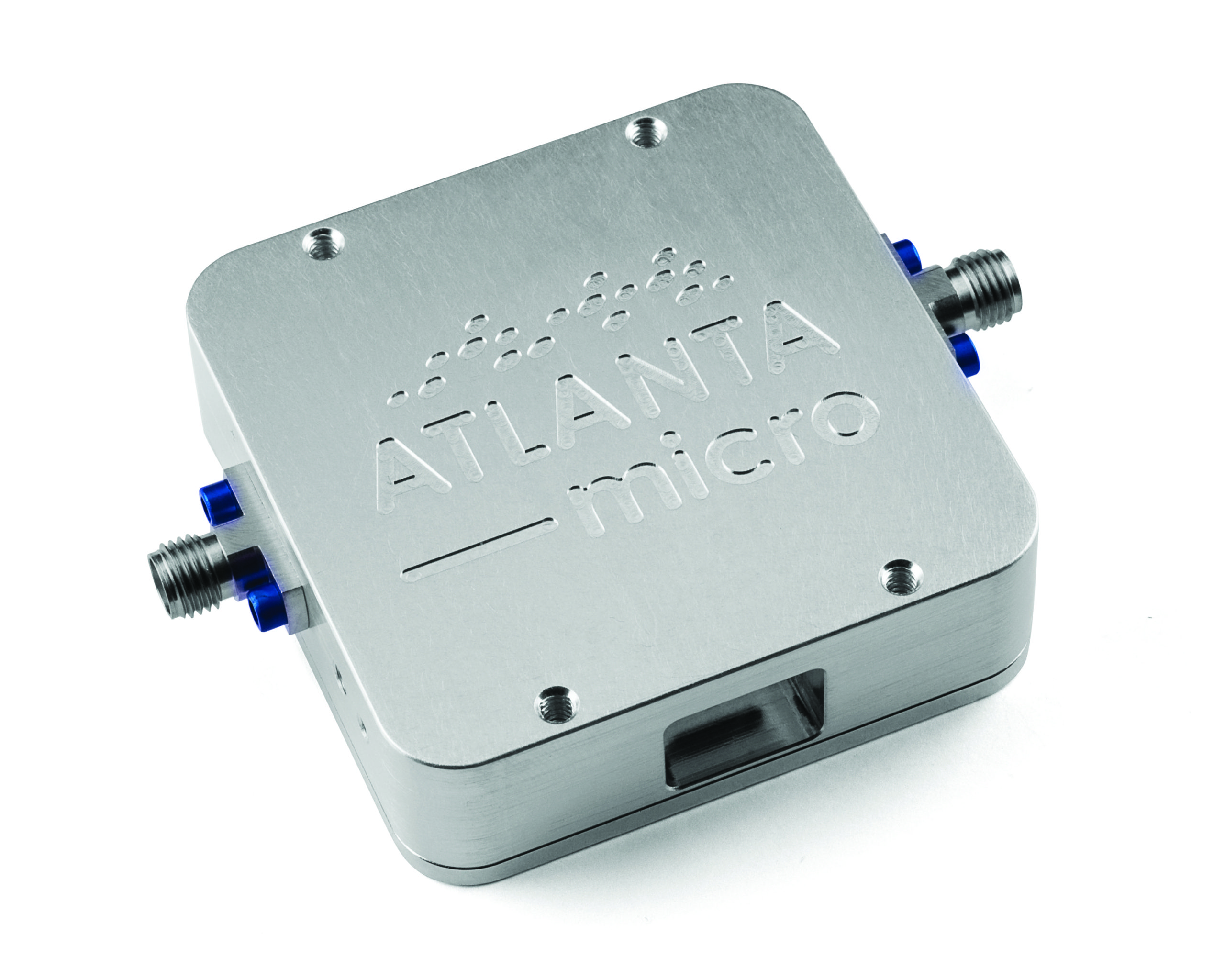

AM3023B-M is a RF-shielded module offering a miniature filter bank module with 10 sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a uni-directional bypassable amplifier section and supports transmit or receive applications.  The AM3023B-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin all in a 2.10″ x 2.10″ x 0.65″ aluminum housing.

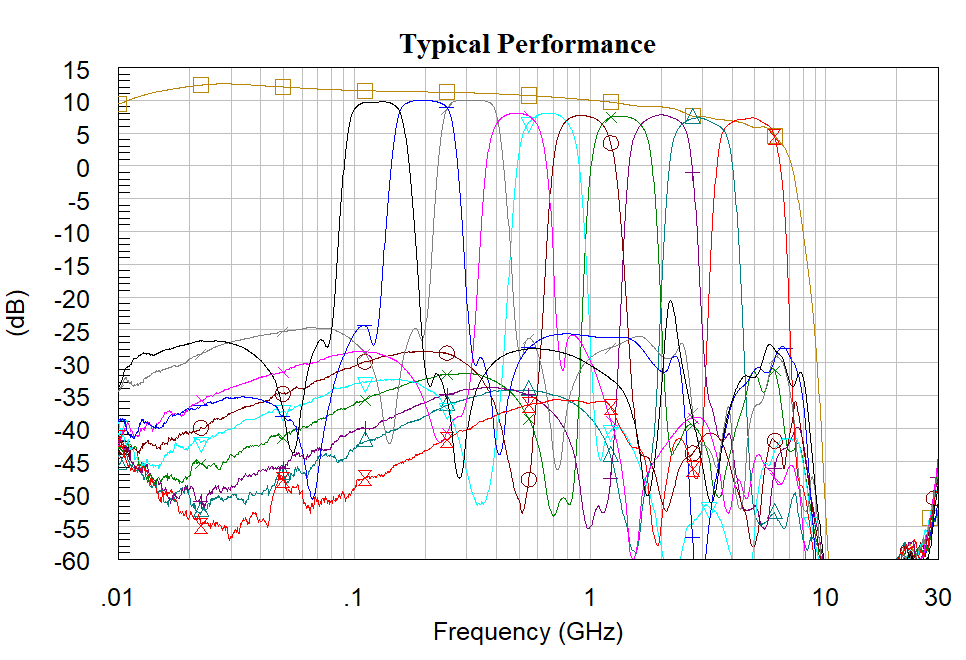

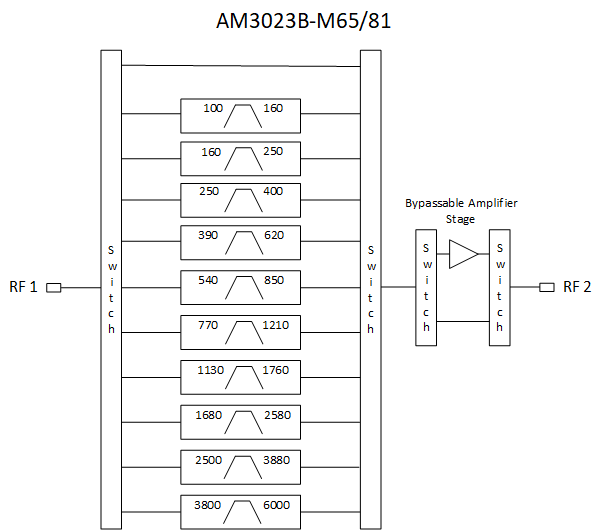

The AM3023B-M65 includes the filters of the AM3023B with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B is also available as a standalone 20.5mm 32 lead QFN.

Product Overview

AM3023B-M is a RF-shielded module offering a miniature filter bank module with 10 sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a uni-directional bypassable amplifier section and supports transmit or receive applications.  The AM3023B-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin all in a 2.10″ x 2.10″ x 0.65″ aluminum housing.

The AM3023B-M65 includes the filters of the AM3023B with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3023B-M81 provides lower gain and higher linearity than the AM3023B-M65.

The filter bank module is ideally suited for in lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B is also available as a standalone 20.5mm 32 lead QFN.

Product Overview

AM3023B-M is a RF-shielded module offering a miniature filter bank module with 10 sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a uni-directional bypassable amplifier section and supports transmit or receive applications.  The AM3023B-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin all in a 2.10″ x 2.10″ x 0.65″ aluminum housing.

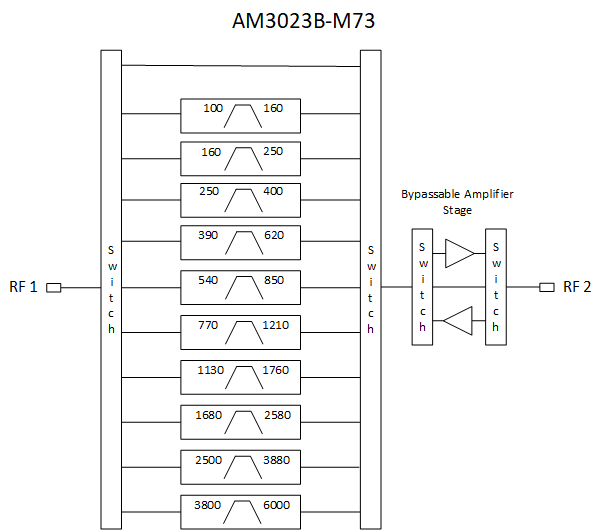

The AM3023B-M73 includes the filters of the AM3023B with an AM1073 amplifier allowing amplification in both directions in addition to the amplifier bypass. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B is also available as a standalone 20.5mm 32 lead QFN.

Specifications

Function

Switched Sub-Octave Filter Bank with Bypassable Amplifer Module

Cutoff Freq Low (MHz)

100

Cutoff Freq High (MHz)

6000

Insertion Loss (dB)

7

Typical Rejection (dB)

40

Package

2.1" x 2.1" x 0.65" RF Shielded Module

Bandwidth Low (MHz)

60

Bandwidth High (MHz)

2200

# in Pack

10

Center Freq High (MHz)

4900

Center Freq Low (MHz)

130



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050




Add To Quote

Datasheet
Module Information
S-Parameters

AM3023B-M

100 MHz to 6 GHz Sub-Octave Filter Bank w/ Bypassable Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Product Overview

AM3023B-M is a RF-shielded module offering a miniature filter bank module with 10 sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a uni-directional bypassable amplifier section and supports transmit or receive applications.  The AM3023B-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin all in a 2.10″ x 2.10″ x 0.65″ aluminum housing.

The AM3023B-M65 includes the filters of the AM3023B with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B is also available as a standalone 20.5mm 32 lead QFN.

Product Overview

AM3023B-M is a RF-shielded module offering a miniature filter bank module with 10 sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a uni-directional bypassable amplifier section and supports transmit or receive applications.  The AM3023B-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin all in a 2.10″ x 2.10″ x 0.65″ aluminum housing.

The AM3023B-M65 includes the filters of the AM3023B with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3023B-M81 provides lower gain and higher linearity than the AM3023B-M65.

The filter bank module is ideally suited for in lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B is also available as a standalone 20.5mm 32 lead QFN.

Product Overview

AM3023B-M is a RF-shielded module offering a miniature filter bank module with 10 sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a uni-directional bypassable amplifier section and supports transmit or receive applications.  The AM3023B-M includes field replaceable SMA connectors, control over USB, and power via USB or via an external pin all in a 2.10″ x 2.10″ x 0.65″ aluminum housing.

The AM3023B-M73 includes the filters of the AM3023B with an AM1073 amplifier allowing amplification in both directions in addition to the amplifier bypass. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

The filter bank module is ideally suited for in lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B is also available as a standalone 20.5mm 32 lead QFN.

Specifications

Function

Switched Sub-Octave Filter Bank with Bypassable Amplifer Module

Cutoff Freq Low (MHz)

100

Cutoff Freq High (MHz)

6000

Insertion Loss (dB)

7

Typical Rejection (dB)

40

Package

2.1" x 2.1" x 0.65" RF Shielded Module

Bandwidth Low (MHz)

60

Bandwidth High (MHz)

2200

# in Pack

10

Center Freq High (MHz)

4900

Center Freq Low (MHz)

130



ECCN: 3A001.b.5

Harmonized Code: 8525.50.7050
