AM3023B

100 MHz to 6 GHz Sub-Octave Filter Bank w/ Bypassable Amplifier


Recommended for New Designs


Product Options

Surface Mount 20.5mm x 20.5mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module, Uni-Directional Amplifier
Connectorized RF Shielded Module, Uni-Directional Amplifier
Connectorized RF Shielded Module, Bi-Directional Amplifier

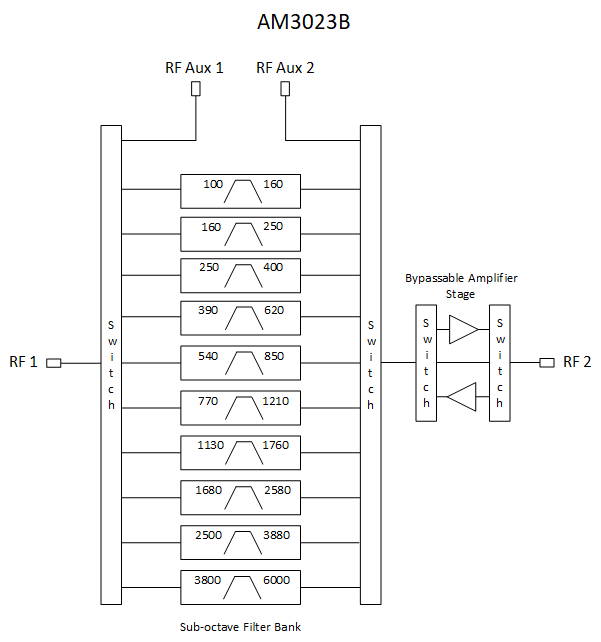

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

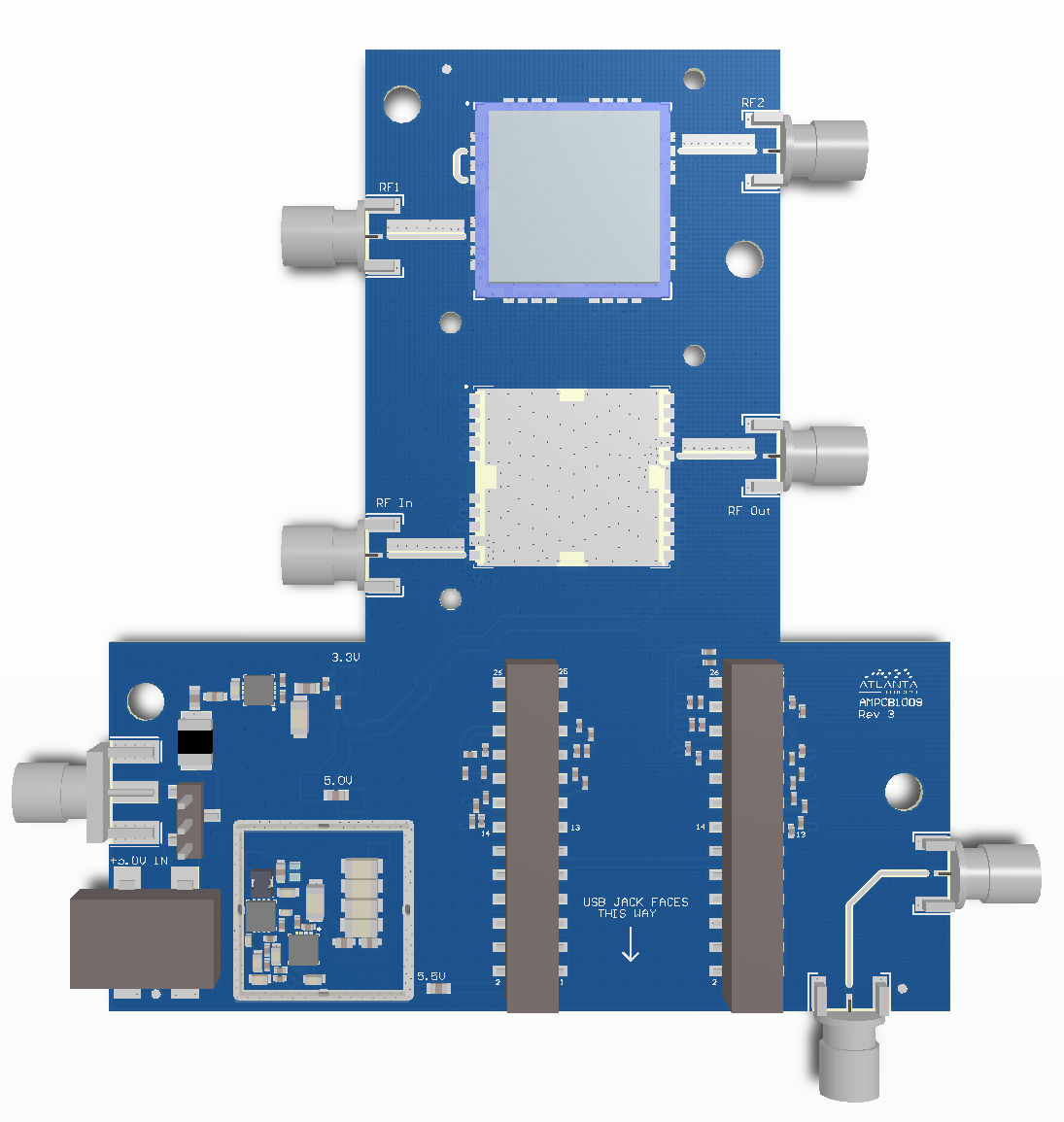

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3023B evaluation board requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3023B. The AM3023B evaluation board also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3023B device and a trace calibration path.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B-M65 includes the filters of the AM3023B with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B-M81 includes the filters of the AM3023B with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3023B-M81 provides lower gain and higher linearity than the AM3023B-M65.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B-M73 includes the filters of the AM3023B with an AM1073 amplifier allowing amplification in both directions in addition to the amplifier bypass. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

Specifications

Function

Switched Sub-octave Filter Bank w/ Bypassable Amplifier

Cutoff Freq Low (MHz)

100

Cutoff Freq High (MHz)

6000

Insertion Loss (dB)

7

Typical Rejection (dB)

40

Package

20.5 x 20.5 x 3.30mm

Bandwidth Low (MHz)

60

Bandwidth High (MHz)

2200

Center Frequency

130 - 4900



ECCN: 3A001.b.5

Harmonized Code: 8542.39

AM3023B

100 MHz to 6 GHz Sub-Octave Filter Bank w/ Bypassable Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 20.5mm x 20.5mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module, Uni-Directional Amplifier
Connectorized RF Shielded Module, Uni-Directional Amplifier
Connectorized RF Shielded Module, Bi-Directional Amplifier

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3023B evaluation board requires software control via a USB module provided on the evaluation board. With the evaluation board is included a graphical interface for control of the various states of the AM3023B. The AM3023B evaluation board also includes a user manual showing how to operate the board using the provided GUI. Evaluation board includes AM3023B device and a trace calibration path.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B-M65 includes the filters of the AM3023B with an AM1065 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1065 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B-M81 includes the filters of the AM3023B with an AM1081 amplifier pointing from input to output (on the module this is left to right when logo facing downwards). AM1081 amplifier provides amplification in one direction only and also allows bypassing of the amplifier. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz. The AM3023B-M81 provides lower gain and higher linearity than the AM3023B-M65.

Product Overview

AM3023B is a miniature filter bank module with sub-octave filters covering the 100 MHz to 6000 MHz frequency range with a full 80 MHz overlap from 400 to 6000 MHz. The device contains a bypassable amplifier section and supports both transmit and receive applications. The IC module is mounted to a circuit board as a surface mount device and provides an excellent front-end/ back-end for a broadband receiver, transmitter or transceiver requiring high dynamic range and small size, weight and power consumption.

The AM3023B is also available as a RF-shielded module with dimensions 2.10″ x 2.10″ x 0.65″. With field-replaceable SMA connectors, control over USB, and power via USB or via an external pin the AM3023B-M is ideally suited for lab use, receiver/transmitter applications, and a variety of EMI reduction applications.

The AM3023B-M73 includes the filters of the AM3023B with an AM1073 amplifier allowing amplification in both directions in addition to the amplifier bypass. The filter bypass path of the AM3023B is directly connected so that the filters may be bypassed directly allowing signals to pass from input to output from 10 MHz to 8 GHz.

Specifications

Function

Switched Sub-octave Filter Bank w/ Bypassable Amplifier

Cutoff Freq Low (MHz)

100

Cutoff Freq High (MHz)

6000

Insertion Loss (dB)

7

Typical Rejection (dB)

40

Package

20.5 x 20.5 x 3.30mm

Bandwidth Low (MHz)

60

Bandwidth High (MHz)

2200

Center Frequency

130 - 4900



ECCN: 3A001.b.5

Harmonized Code: 8542.39
