AM1144

17 GHz to 40 GHz Wideband Driver Amplifier


Recommended for New Designs


Product Options

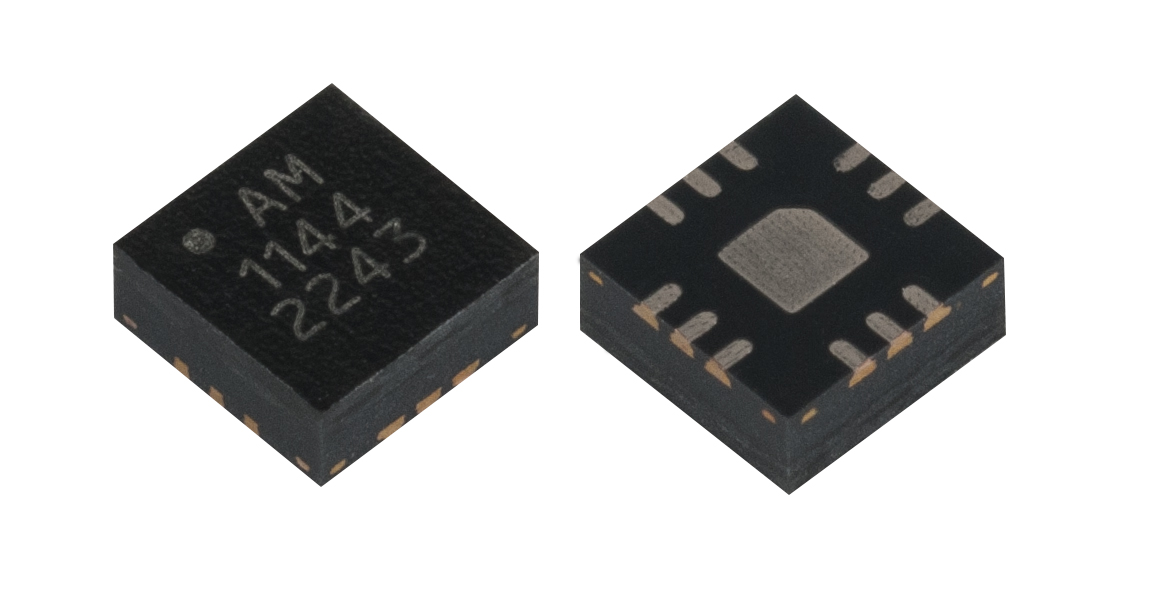

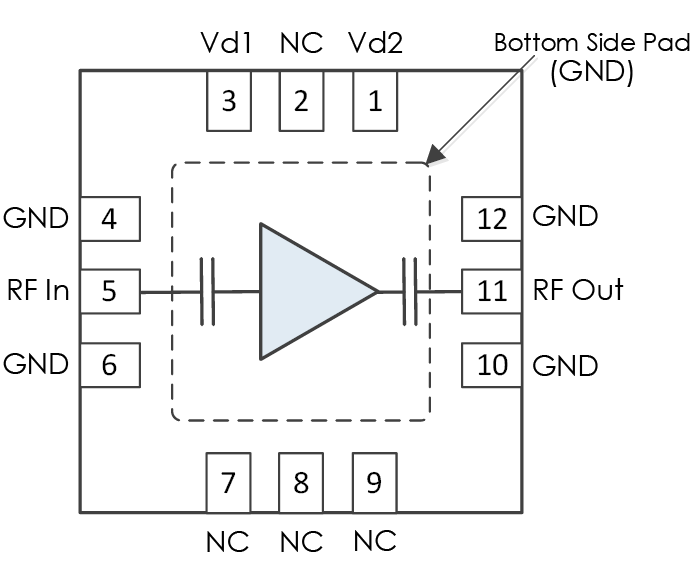

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

The AM1144 is a wideband low noise amplifier that covers the 17-40 GHz frequency range. The device exhibits 13dB gain with low noise figure and high output power which makes the AM1144 a useful component for many applications such as 5G wireless and K-band / Ka-band satcom. The device is packaged in a 3mm QFN with internal 50Ω matching and draws 360mW of DC power which makes the AM1144 ideal for demanding, low SWaP applications.

Note: Generic Part Picture Used.

Product Overview

The AM1144 is a wideband low noise amplifier that covers the 17-40 GHz frequency range. The device exhibits 13dB gain with low noise figure and high output power which makes the AM1144 a useful component for many applications such as 5G wireless and K-band / Ka-band satcom. The device is packaged in a 3mm QFN with internal 50Ω matching and draws 360mW of DC power which makes the AM1144 ideal for demanding, low SWaP applications.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1144.

Specifications

Function

Driver Amplifier

Freq. (GHz)

17 - 40

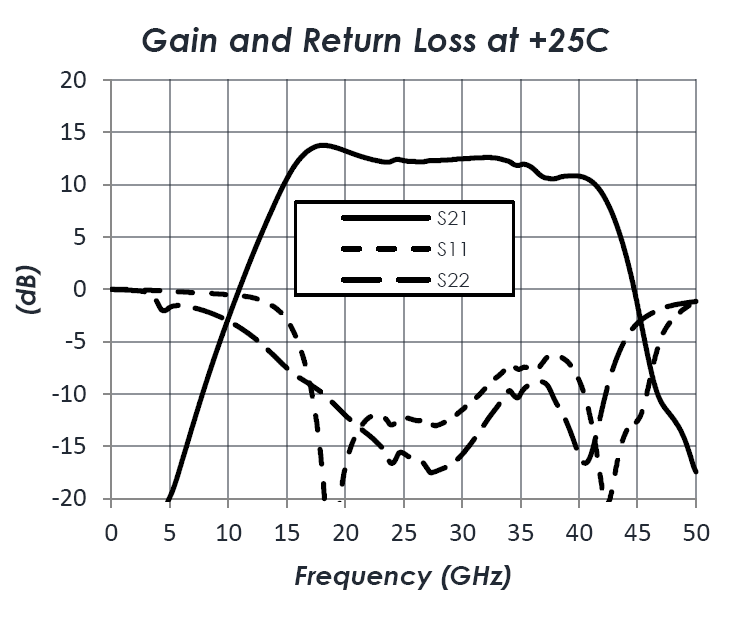

Gain (dB)

12

NF (dB)

3.5

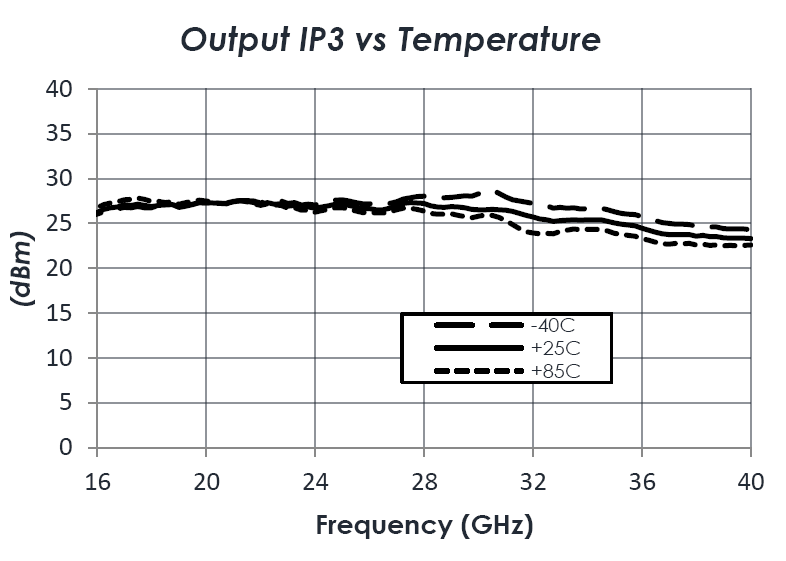

OIP3 (dBm)

27

Surface Mount

3mm

Supply (+V)

3.3

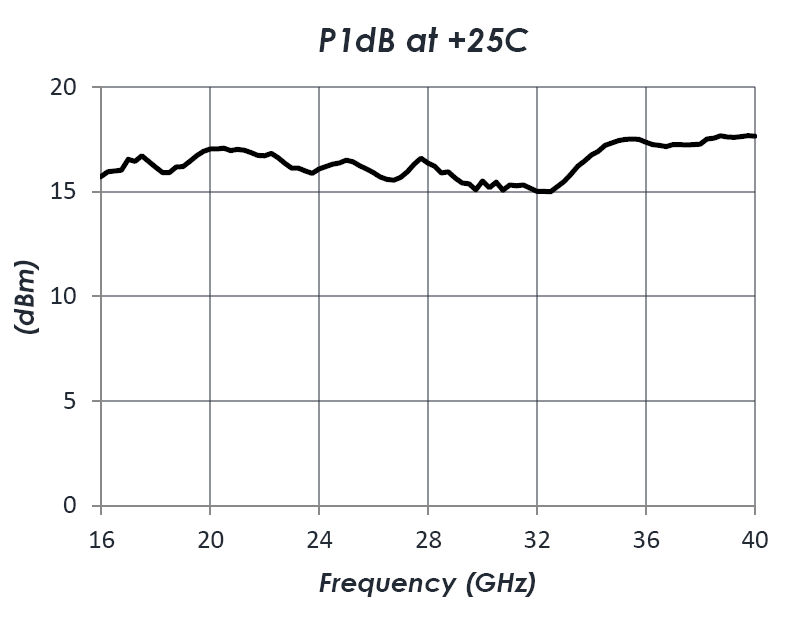

P1dB (dBm)

16.5

Supply (mA)

110

Module

No



ECCN: 3A001.b.2.d

Harmonized Code: 8542.33

AM1144
