AtlantaMicro

AM1095

6 GHz to 22.25 GHz Driver Amplifier


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

The AM1095 is an AC-coupled amplifier covering 6 GHz to 22.25 GHz. The device exhibits high output P1dB performance, relatively low noise figure, and excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1095 represents a compact total PCB footprint.

Note: Generic Part Picture Used.

Product Overview

The AM1095 is an AC-coupled amplifier covering 6 GHz to 22.25 GHz. The device exhibits high output P1dB performance, relatively low noise figure, and excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1095 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1095.

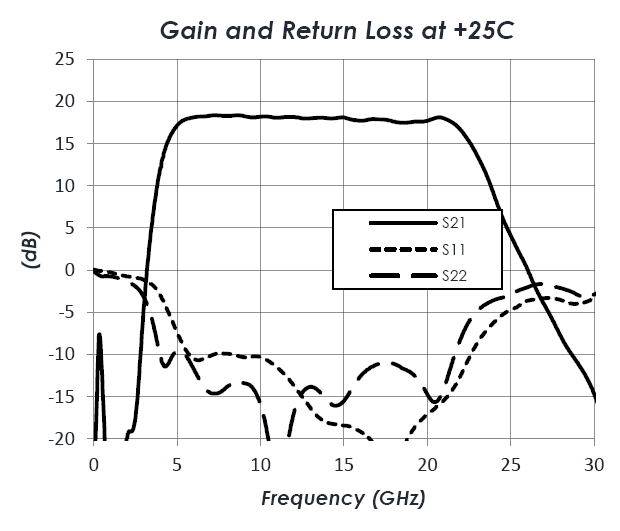

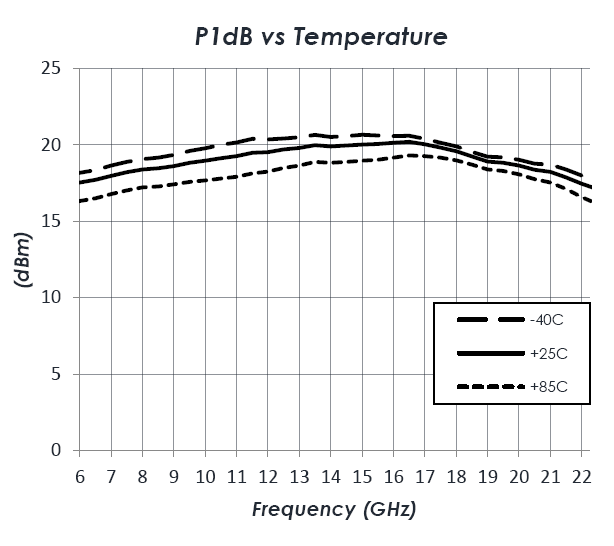

Specifications

Function

Driver Amplifier

Freq. (GHz)

6 - 22.25

Gain (dB)

18

NF (dB)

3.5

OIP3 (dBm)

24

Surface Mount

3mm

Supply (+V)

5.0

P1dB (dBm)

19

Supply (mA)

136

Module

No



ECCN: EAR99

Harmonized Code: 8542.33

AM1095

6 GHz to 22.25 GHz Driver Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

The AM1095 is an AC-coupled amplifier covering 6 GHz to 22.25 GHz. The device exhibits high output P1dB performance, relatively low noise figure, and excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1095 represents a compact total PCB footprint.

Note: Generic Part Picture Used.

Product Overview

The AM1095 is an AC-coupled amplifier covering 6 GHz to 22.25 GHz. The device exhibits high output P1dB performance, relatively low noise figure, and excellent gain stability over the operating temperature range. With internal 50Ω matching and packaged in a 3mm QFN, the AM1095 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1095.

Specifications

Function

Driver Amplifier

Freq. (GHz)

6 - 22.25

Gain (dB)

18

NF (dB)

3.5

OIP3 (dBm)

24

Surface Mount

3mm

Supply (+V)

5.0

P1dB (dBm)

19

Supply (mA)

136

Module

No



ECCN: EAR99

Harmonized Code: 8542.33
