AM1082

5 GHz to 17 GHz LO Driver Amplifier


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

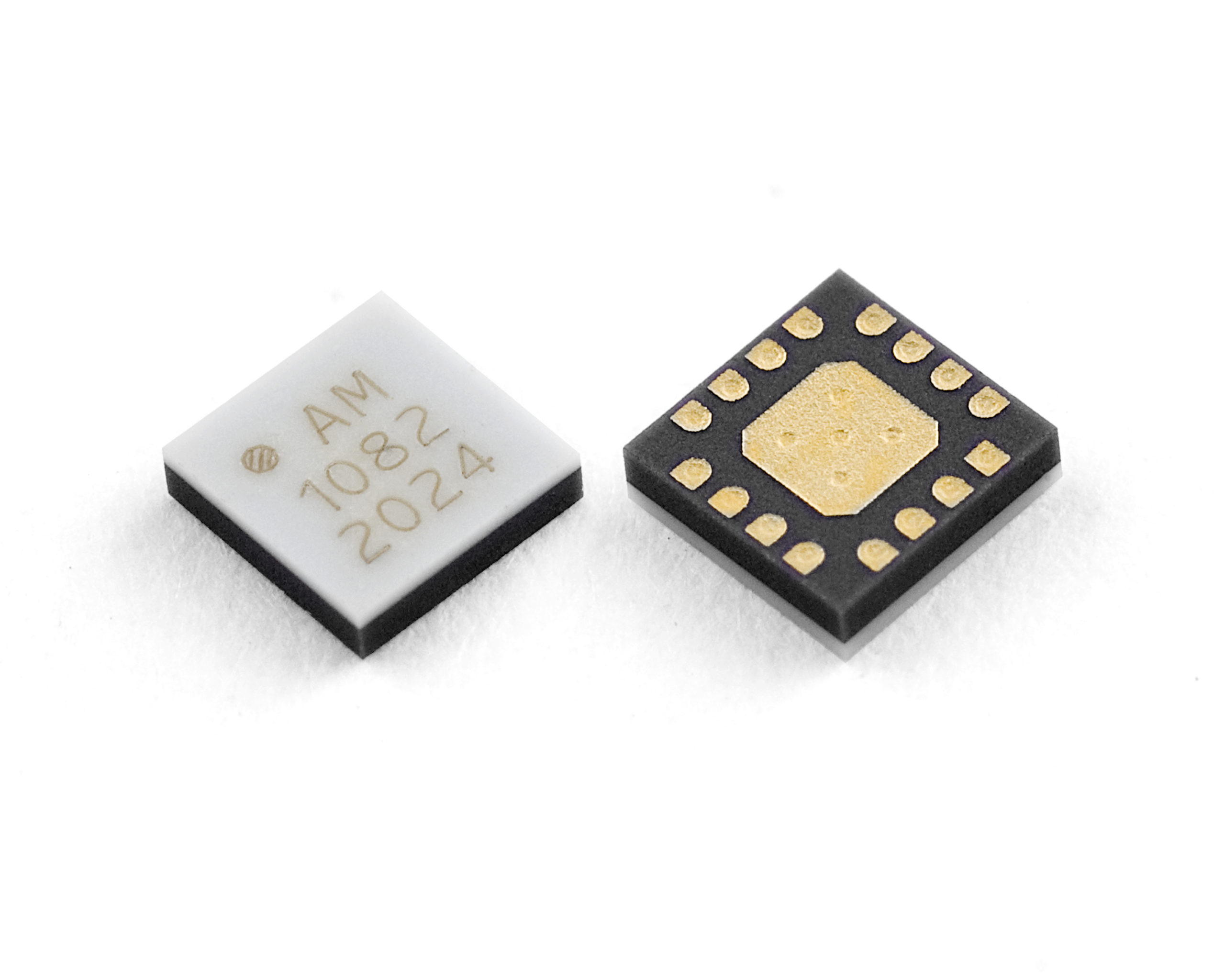

AM1082 is a high dynamic range cascadable gain block covering the 5 GHz to 17 GHz frequency range. The device provides high gain and output power across its bandwidth with a single +5.0V supply, useful for many LO driver applications. Packaged in a 3mm QFN with internal 50Ω matching and DC blocking capacitors, the AM1082 represents a compact total PCB footprint.

Product Overview

AM1082 is a high dynamic range cascadable gain block covering the 5 GHz to 17 GHz frequency range. The device provides high gain and output power across its bandwidth with a single +5.0V supply, useful for many LO driver applications. Packaged in a 3mm QFN with internal 50Ω matching and DC blocking capacitors, the AM1082 represents a compact total PCB footprint.

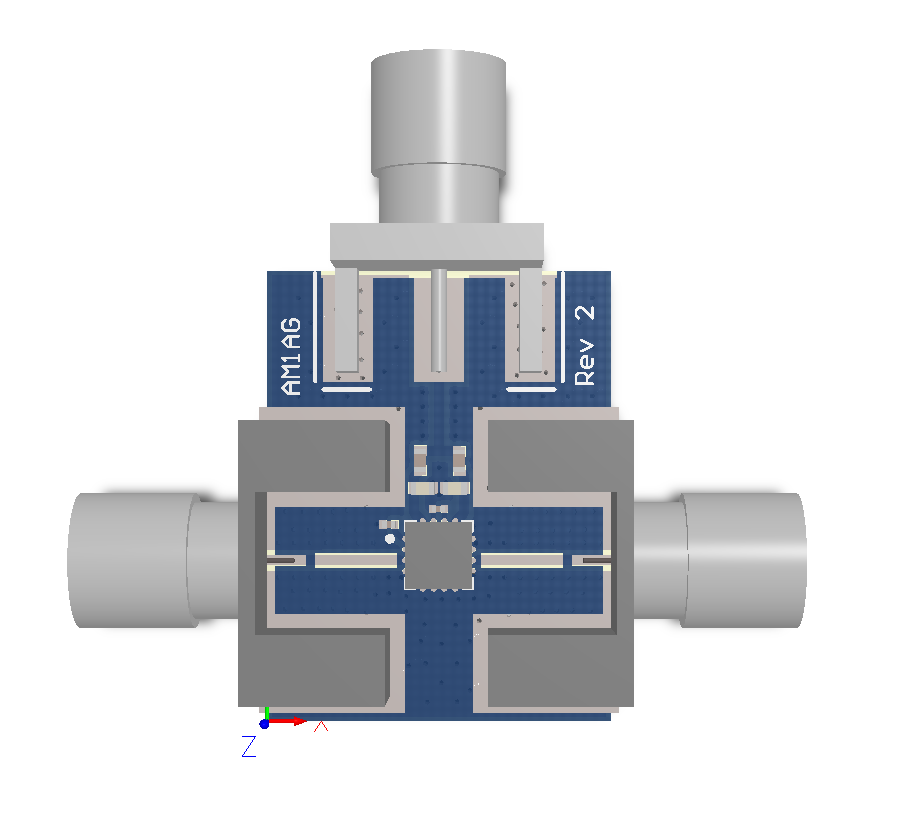

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1082.

Specifications

Function

Driver Amplifier

Freq. (GHz)

5 - 17

Gain (dB)

22

NF (dB)

3

OIP3 (dBm)

31

Surface Mount

3mm QFN

Supply (+V)

5

P1dB (dBm)

20

Supply (mA)

126

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33
