AM3073A

1.0 GHz A/D Driver, 500 MHz Bandwidth


Recommended for New Designs


Product Options

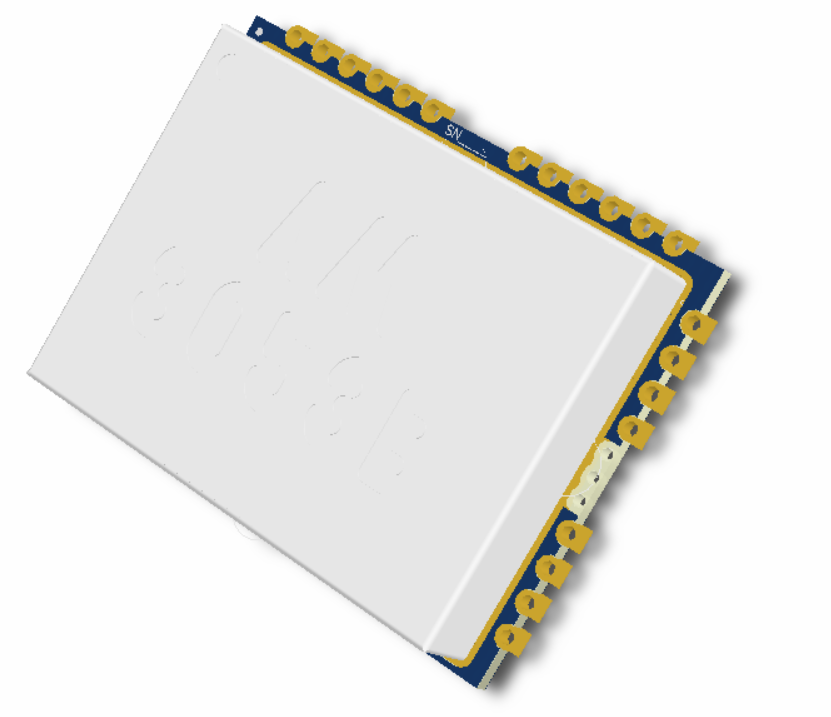

Surface Mount 18mm x 24mm LLCC

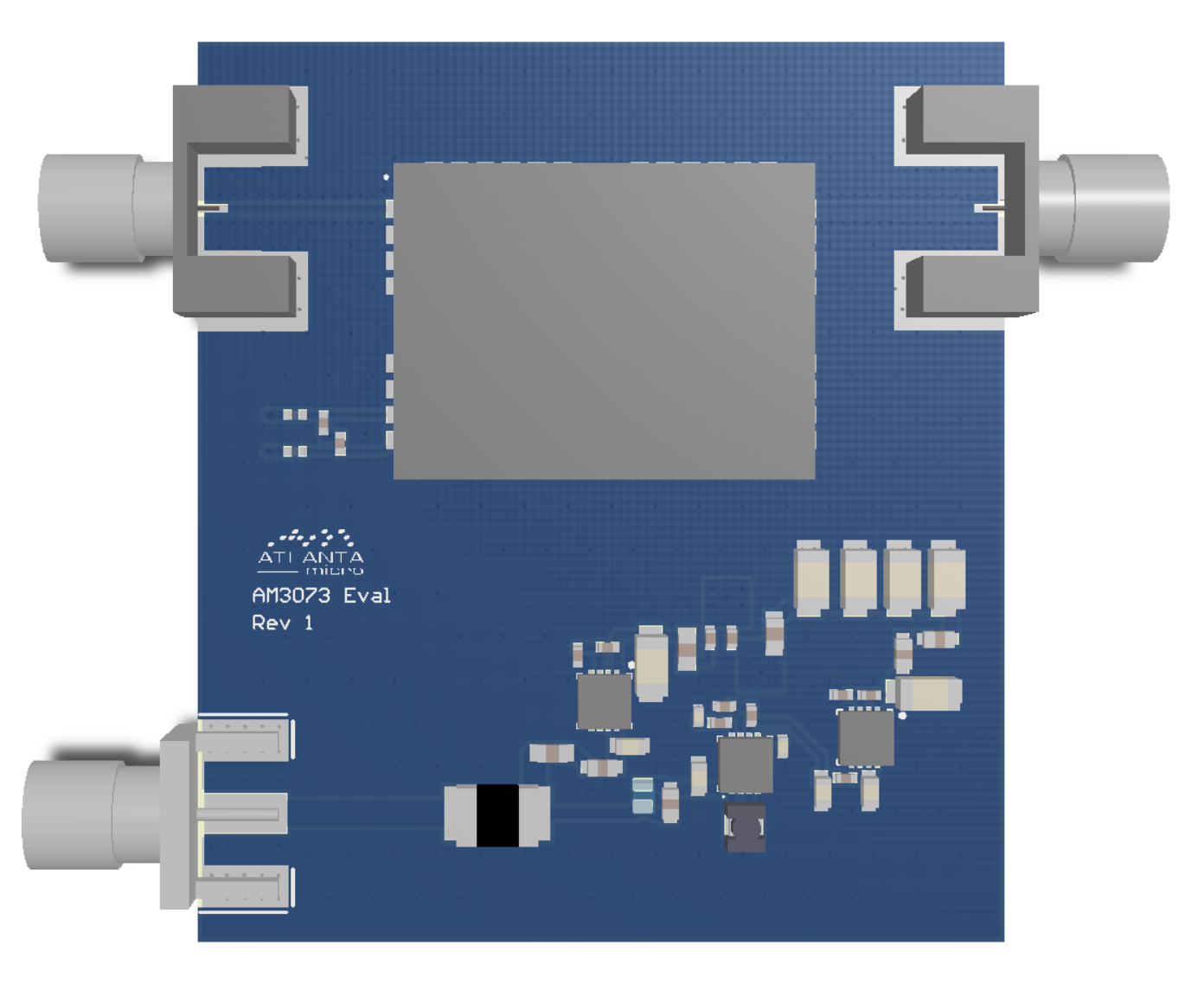

Connectorized Evaluation Board

Product Overview

AM3073A is a shielded A/D driver module that provides amplification and anti-aliasing filtering of the 1.0 GHz IF output of the AM9017 tuner module. The AM3073A offers 500 Mhz of bandwidth and 25 dB of gain packaged in a 18mm x 24mm x 4mm package while operating on +5.0V from -40C to +85C.

Product Overview

AM3073A is a shielded A/D driver module that provides amplification and anti-aliasing filtering of the 1.0 GHz IF output of the AM9017 tuner module. The AM3073A offers 500 Mhz of bandwidth and 25 dB of gain packaged in a 18mm x 24mm x 4mm package while operating on +5.0V from -40C to +85C.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM3073A.

Specifications

Function

A/D Driver

Freq. (GHz)

0.75 - 1.25

NF (dB)

7

IIP3 (dBm)

12

Bandwidth (MHz)

500

Output

1 GHz Filtered

Power Consump (W)

1

Package

0.71" x 0.85" x 0.16"



ECCN/USML: ITAR XI(c)(2)

Harmonized Code: 8542.39

AM3073A

1.0 GHz A/D Driver, 500 MHz Bandwidth


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 18mm x 24mm LLCC
Connectorized Evaluation Board

Product Overview

AM3073A is a shielded A/D driver module that provides amplification and anti-aliasing filtering of the 1.0 GHz IF output of the AM9017 tuner module. The AM3073A offers 500 Mhz of bandwidth and 25 dB of gain packaged in a 18mm x 24mm x 4mm package while operating on +5.0V from -40C to +85C.

Product Overview

AM3073A is a shielded A/D driver module that provides amplification and anti-aliasing filtering of the 1.0 GHz IF output of the AM9017 tuner module. The AM3073A offers 500 Mhz of bandwidth and 25 dB of gain packaged in a 18mm x 24mm x 4mm package while operating on +5.0V from -40C to +85C.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM3073A.

Specifications

Function

A/D Driver

Freq. (GHz)

0.75 - 1.25

NF (dB)

7

IIP3 (dBm)

12

Bandwidth (MHz)

500

Output

1 GHz Filtered

Power Consump (W)

1

Package

0.71" x 0.85" x 0.16"



ECCN: ITAR XI(c)(2)

Harmonized Code: 8542.39
