AM6017

DC to 26.5 GHz Reflective SP4T


Recommended for New Designs


Product Options

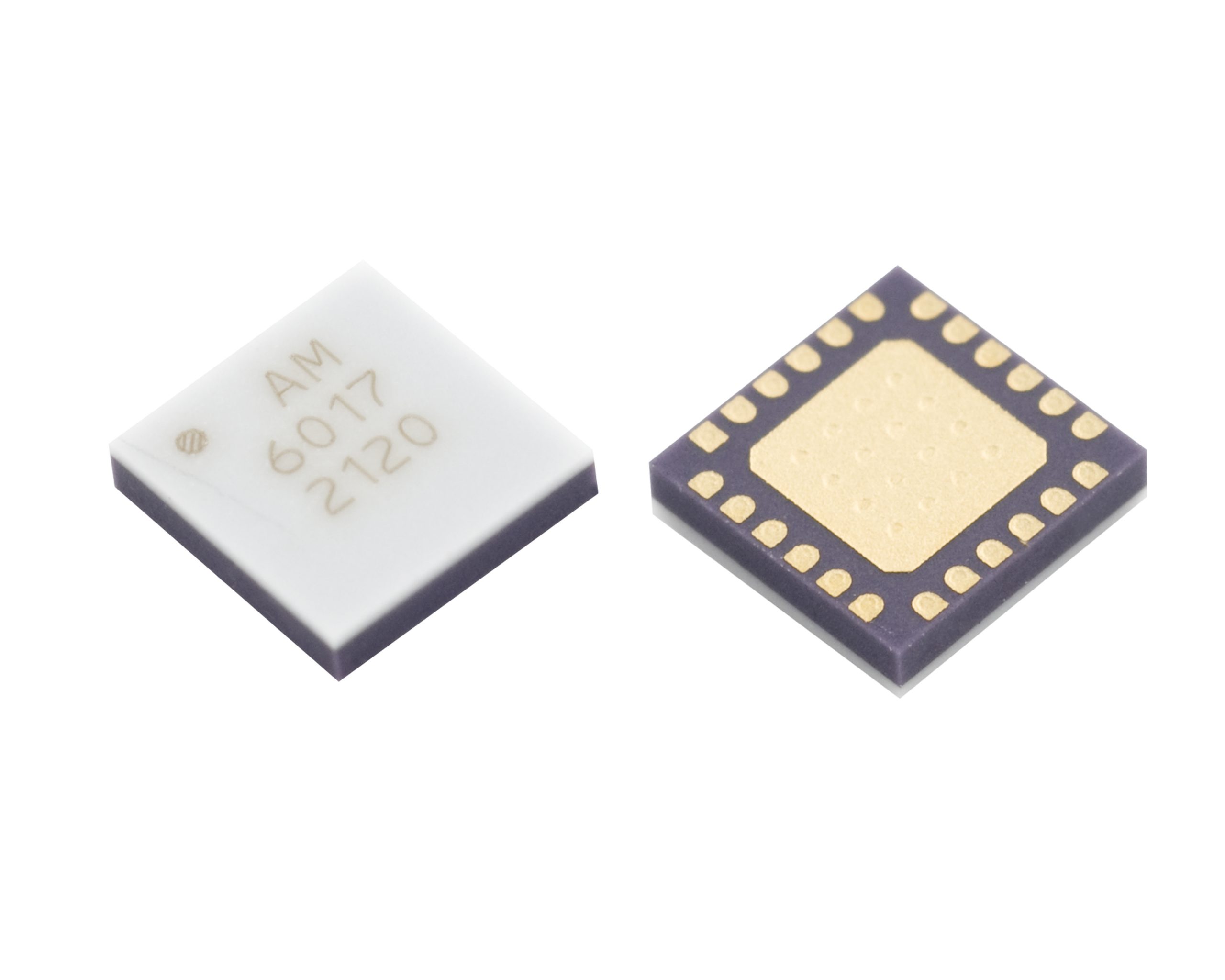

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM6017 is a Single-Pole Four-Throw (SP4T) switch covering the DC to 26.5 GHz frequency range. The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

Product Overview

AM6017 is a Single-Pole Four-Throw (SP4T) switch covering the DC to 26.5 GHz frequency range. The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

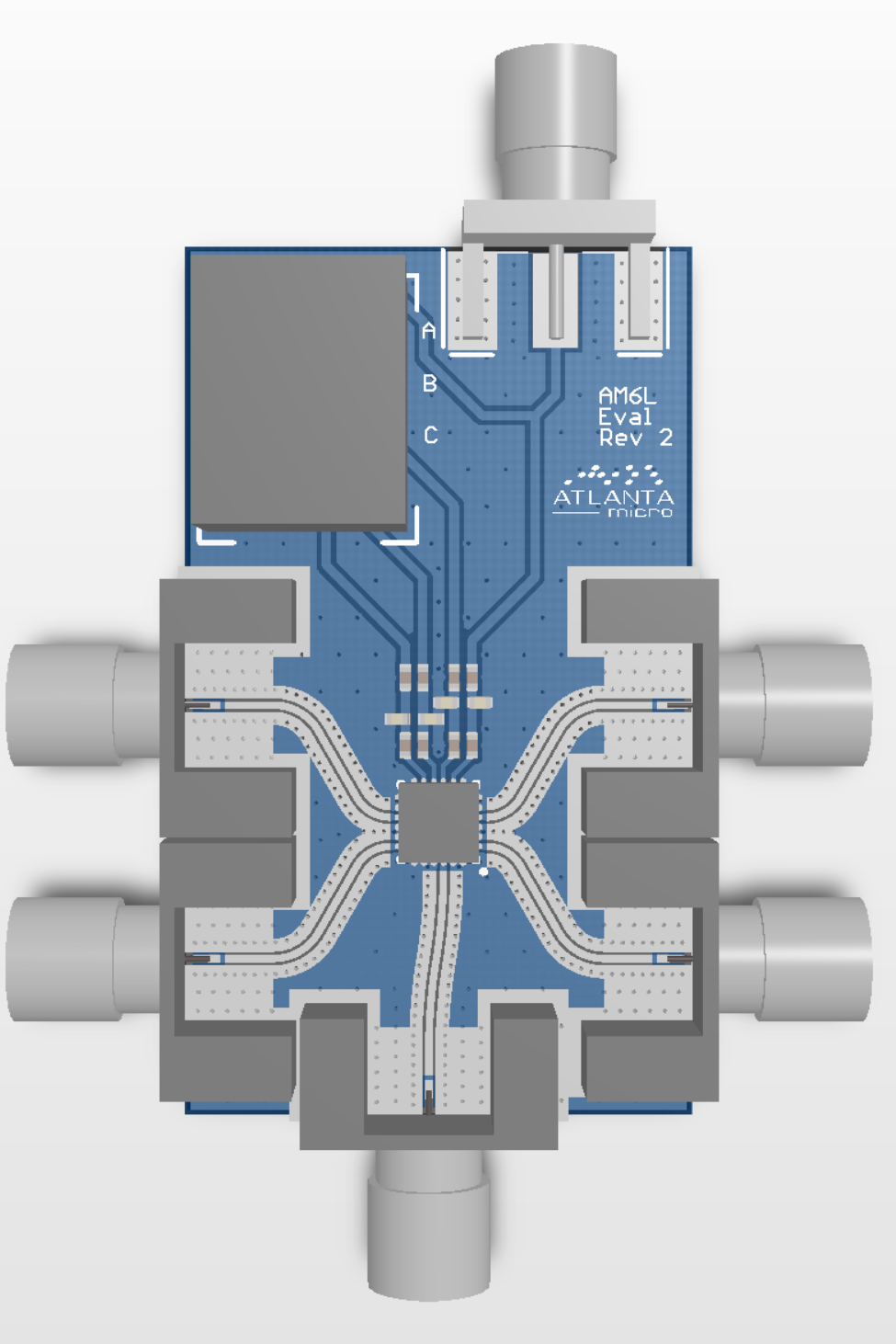

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6017 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6017.

Specifications

Function

SP4T, Reflective

Freq. (GHz)

DC - 26.5

Insertion Loss (dB)

2

Isolation (dB)

30

IIP3 (dBm)

41

Supply (+V)

3.3 to 5.0

Supply (mA)

8

Control

3.0 to 5.0

Package

4mm QFN



ECCN: EAR99

Harmonized Code: 8525.50.7050
