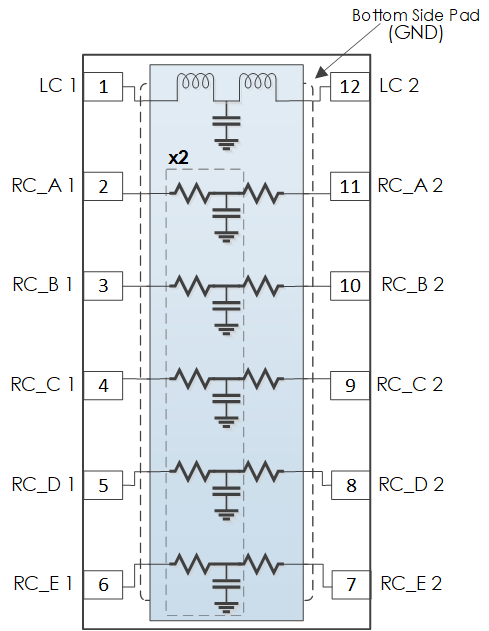

AM35 provides 6 filters in a tiny 1.5mm x 3mm package for filtering power and control lines that is necessary for spurious signal suppression for amplifiers, step attenuators, tunable filters, and switches. The device offers simplicity and space savings compared to the traditional discrete design approaches. The AM35 provides one power line filter and 5 control line filters spaced at 0.5mm pitch to mate with your standard QFN devices.

The AM35 provides 50 dB of rejection up to 40 GHz and a small RC time constant making this perfect for your next generation EMI filtering needs.


For more information on availability and pricing, please request a quote.

ECCN: In process, Harmonized Code: In process

Data Sheet » S-Parameters »

FunctionCutoff Freq Low (MHz)Cutoff Freq High (MHz)Center Freq High (MHz)Center Freq Low (MHz)Center Frequency# in PackBandwidth Low (MHz)Bandwidth High (MHz)Insertion Loss (dB)Typical Rejection (dB)Package
EMI Filter Bank300640 GHz501.5mm x 3mm DFN
