AM3235

8 GHz to 12 GHz Bandpass Filter


Recommended for New Designs


Product Options

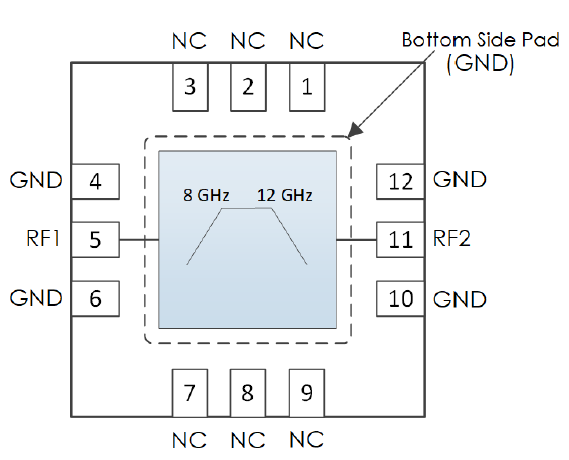

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM3235 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 10 GHz and 4 GHz of bandwidth, AM3235 is useful as an IF filter for reducing unwanted mixer products and LO feedthrough in X-band systems. AM3235 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

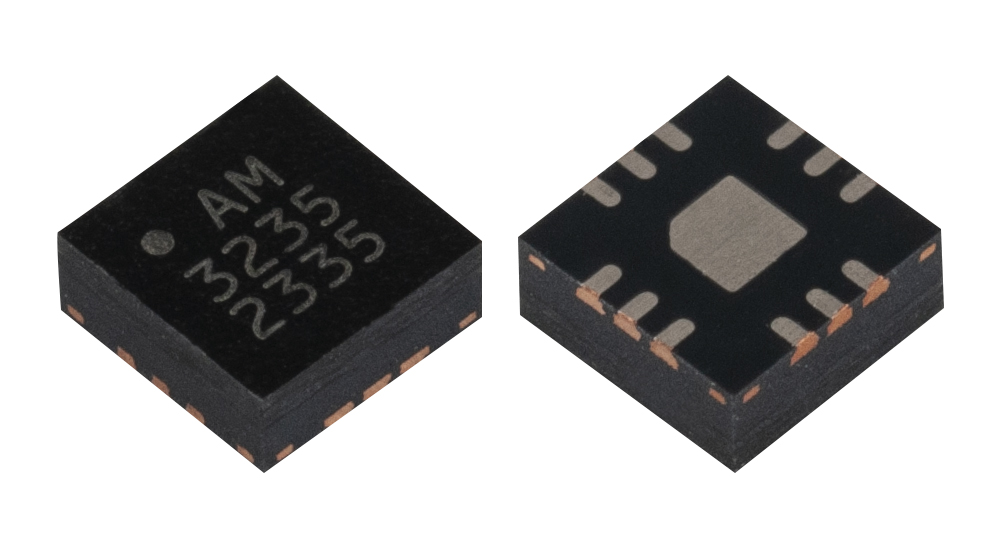

Note: Generic Part Picture Shown

Product Overview

AM3235 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 10 GHz and 4 GHz of bandwidth, AM3235 is useful as an IF filter for reducing unwanted mixer products and LO feedthrough in X-band systems. AM3235 is AC coupled and matched to 50 ohms while operating over the -40C to +100C temperature range.

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3235.

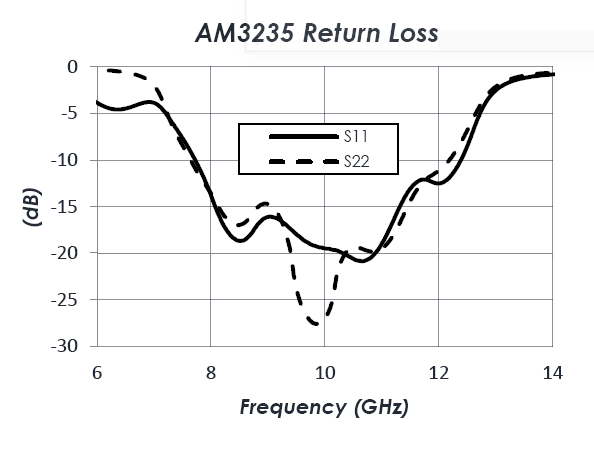

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

8000

Cutoff Freq High (MHz)

12000

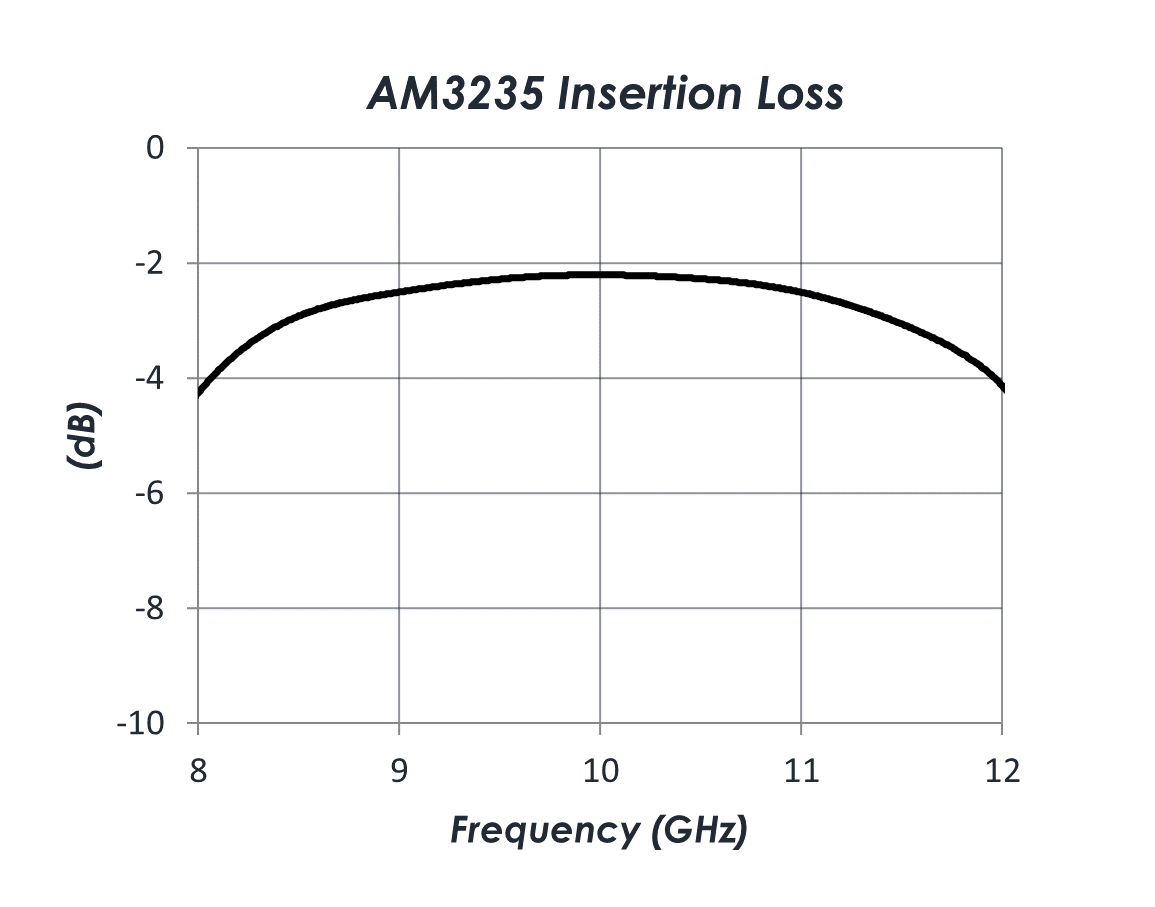

Insertion Loss (dB)

2.2

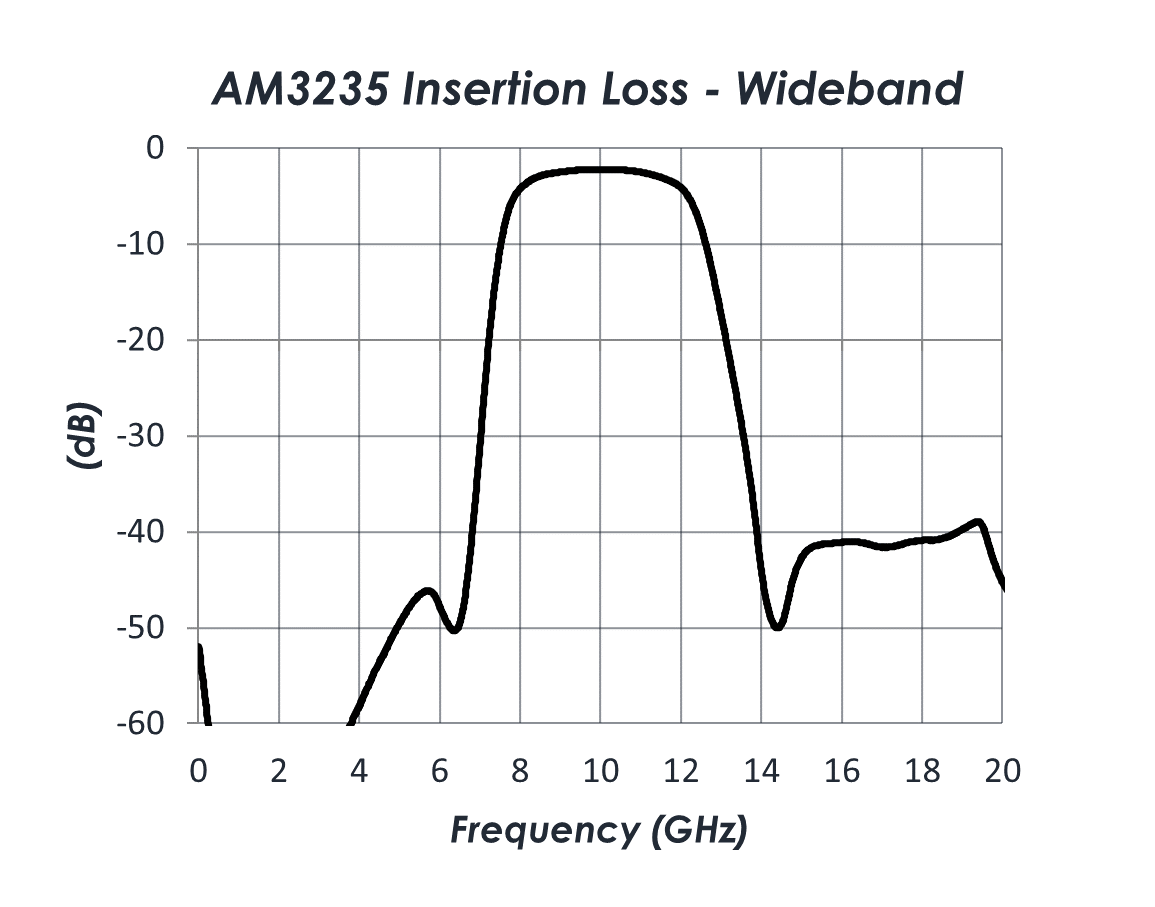

Typical Rejection (dB)

35

Package

3mm QFN

Bandwidth Low (MHz)

4000

Center Frequency

10000

# in Pack

1



ECCN: EAR99

Harmonized Code: 8542.39
