AtlantaMicro

AM3232

1 GHz IF Bandpass Filter, 500 MHz IBW


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM3232 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 1.0 GHz, 1.1 GHz, or 1.2 GHz and a bandwidth of 500 MHz, AM3232 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3232 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

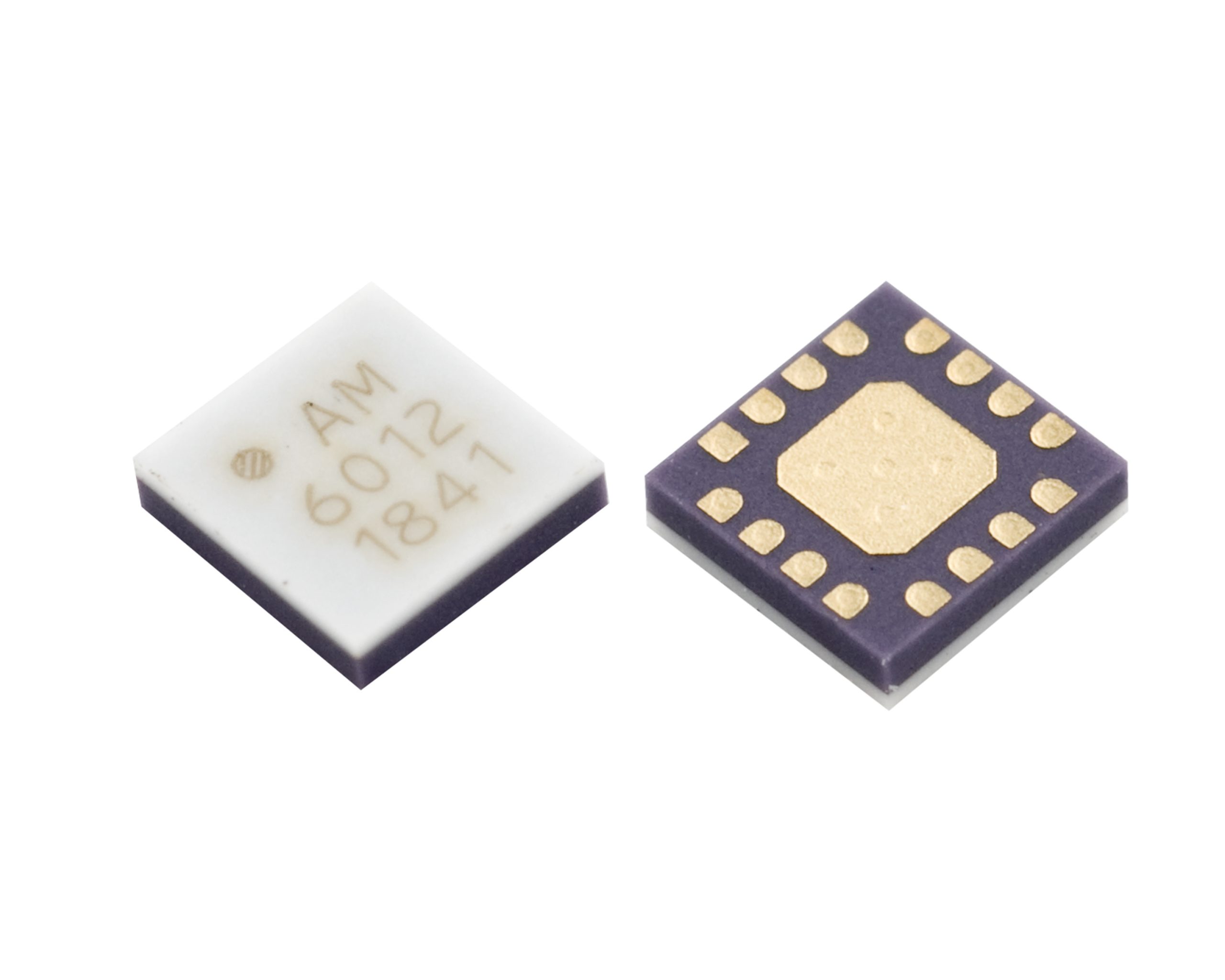

Note: Generic Part Picture Used.

Product Overview

AM3232 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 1.0 GHz, 1.1 GHz, or 1.2 GHz and a bandwidth of 500 MHz, AM3232 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3232 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

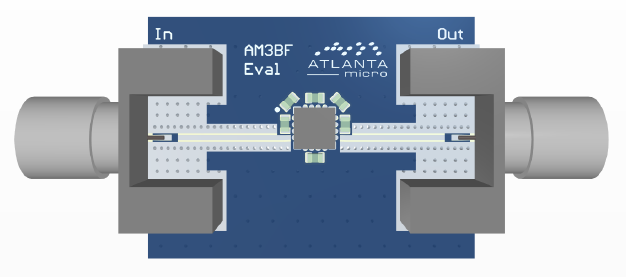

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3232.

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

750

Cutoff Freq High (MHz)

1500

Insertion Loss (dB)

1.4

Typical Rejection (dB)

45

Package

3mm QFN

Bandwidth Low (MHz)

500

Center Frequency

1000

# in Pack

1



ECCN: EAR99

Harmonized Code: 8542.39

AM3232

1 GHz IF Bandpass Filter, 500 MHz IBW


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM3232 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 1.0 GHz, 1.1 GHz, or 1.2 GHz and a bandwidth of 500 MHz, AM3232 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3232 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

Note: Generic Part Picture Used.

Product Overview

AM3232 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 1.0 GHz, 1.1 GHz, or 1.2 GHz and a bandwidth of 500 MHz, AM3232 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3232 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3232.

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

750

Cutoff Freq High (MHz)

1500

Insertion Loss (dB)

1.4

Typical Rejection (dB)

45

Package

3mm QFN

Bandwidth Low (MHz)

500

Center Frequency

1000

# in Pack

1



ECCN: EAR99

Harmonized Code: 8542.39
