AM3231

2 GHz IF Bandpass Filter, 1 GHz IBW


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM3231 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 2.0 GHz, 1.9 GHz, or 1.8 GHz and a bandwidth of 1 GHz, AM3231 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3231 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

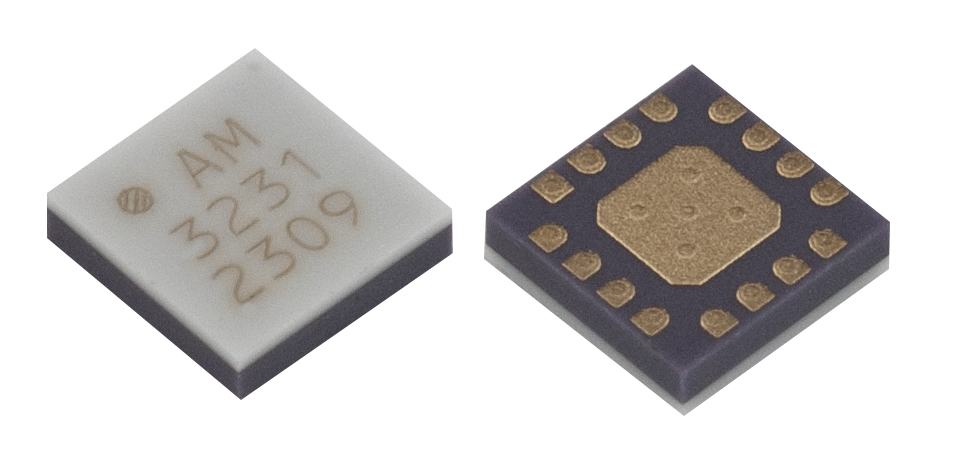

Note: Generic Part Picture Used.

Product Overview

AM3231 is a passive bandpass filter implemented on chip that provides low loss and high rejection in a small 3 mm package. With a center frequency of 2.0 GHz, 1.9 GHz, or 1.8 GHz and a bandwidth of 1 GHz, AM3231 is useful as an IF filter in any RF system for image, LO, and spur rejection. AM3231 is AC coupled and matched to 50 ohms and operates over the -40C to +100C temperature range.

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM3231.

Specifications

Function

IF Bandpass Filter

Cutoff Freq Low (MHz)

1500

Cutoff Freq High (MHz)

2500

Insertion Loss (dB)

2.2

Typical Rejection (dB)

40

Package

3mm QFN

Bandwidth Low (MHz)

1000

Center Frequency

2000

# in Pack

1



ECCN: EAR99

Harmonized Code: 8542.39
