AM3186

6 GHz to 26.5 GHz Sub-Octave Filter Bank


Recommended for New Designs


Product Options

Surface Mount 5mm x 5mm QFN
Connectorized Evaluation Board

Product Overview

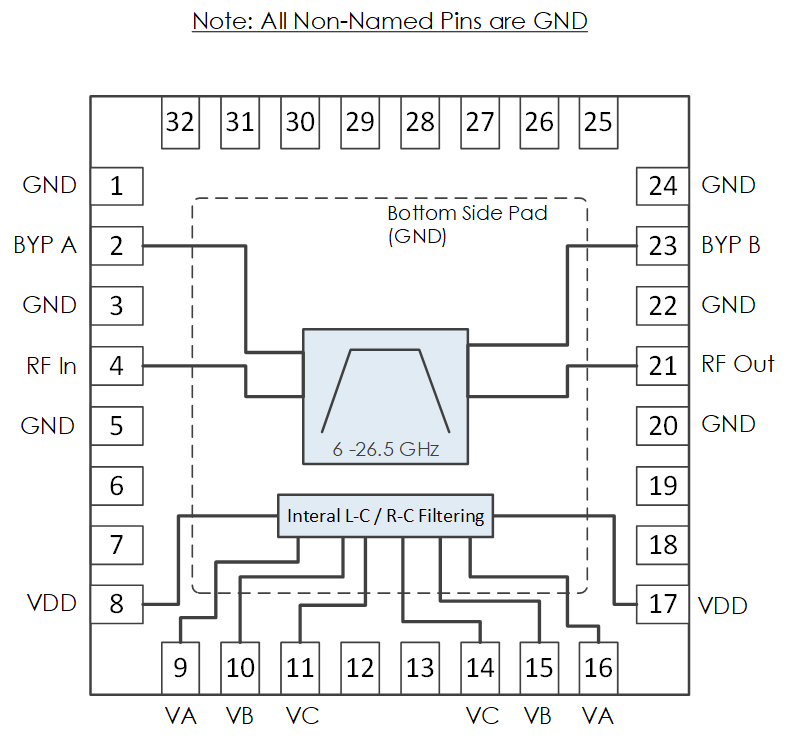

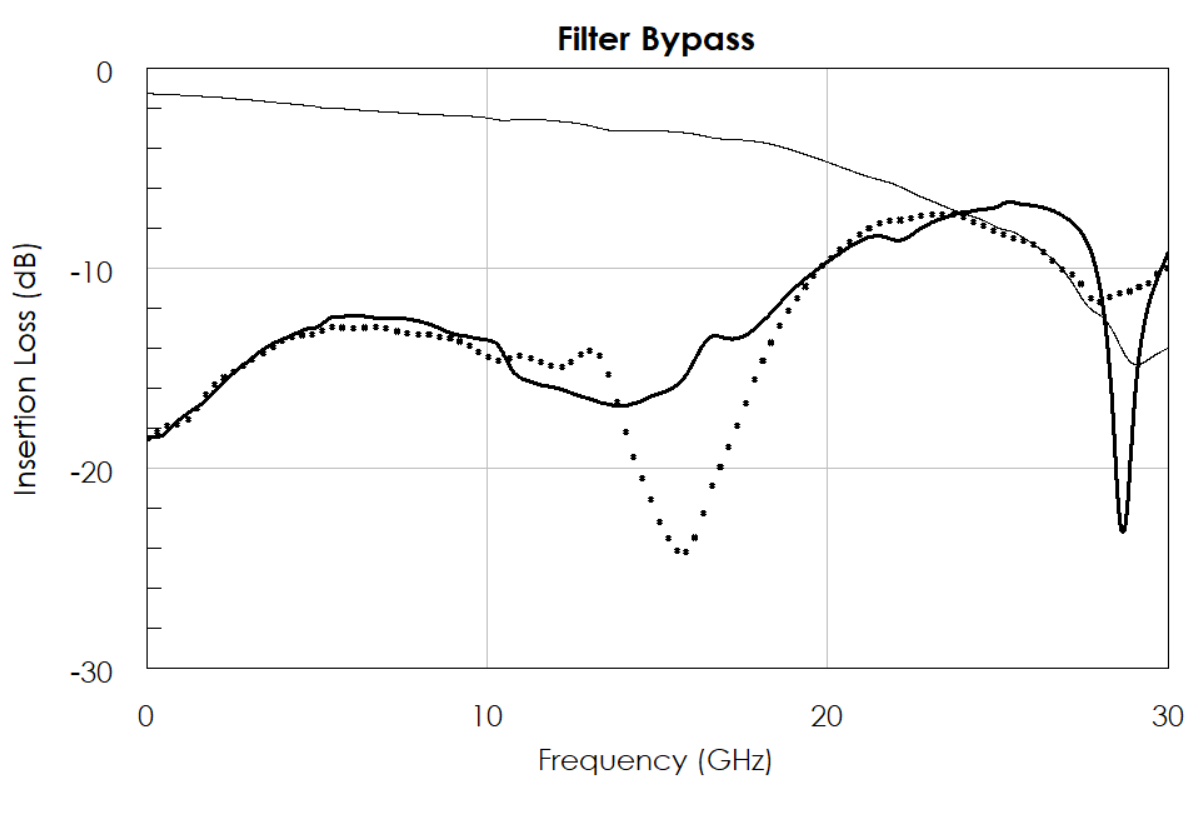

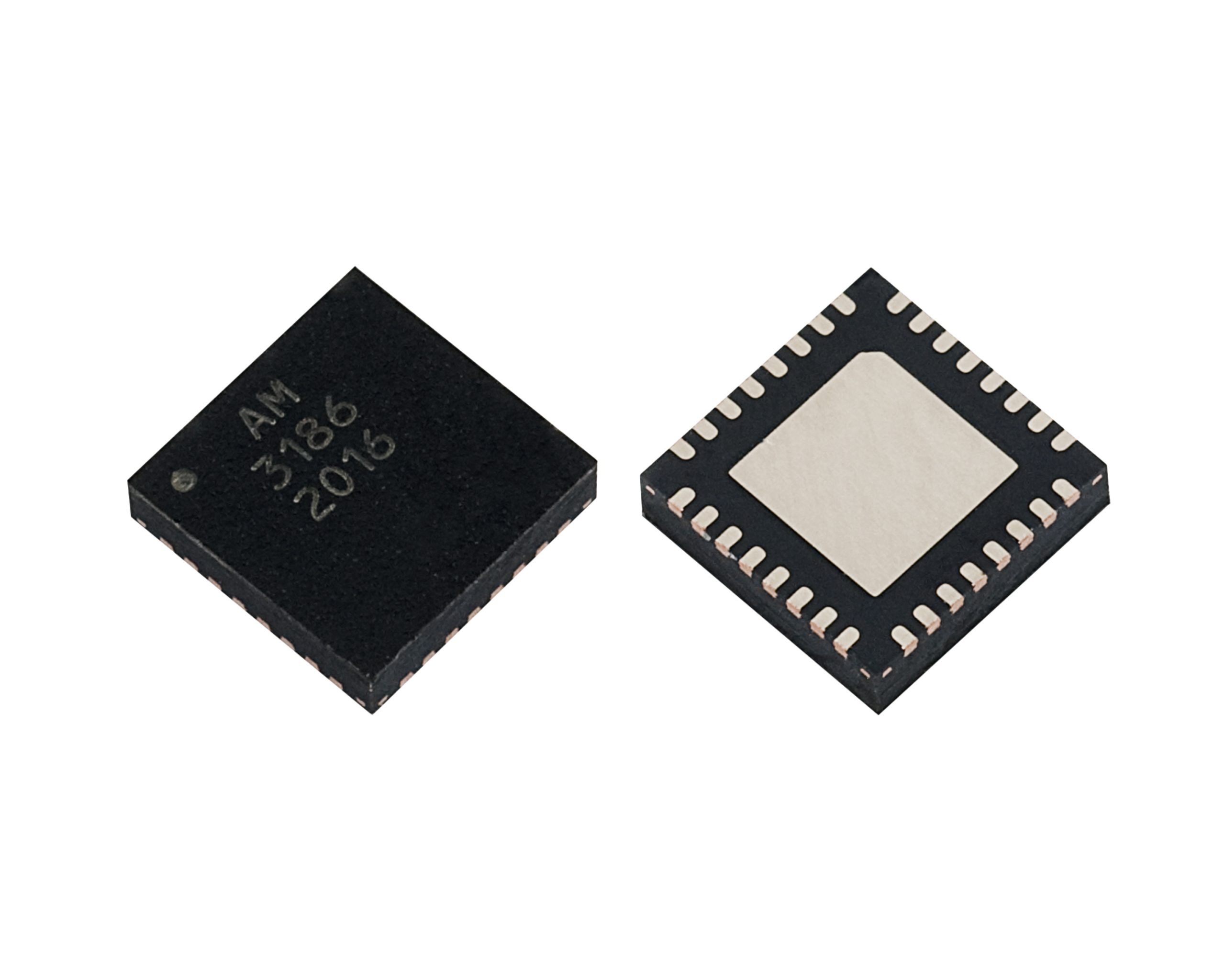

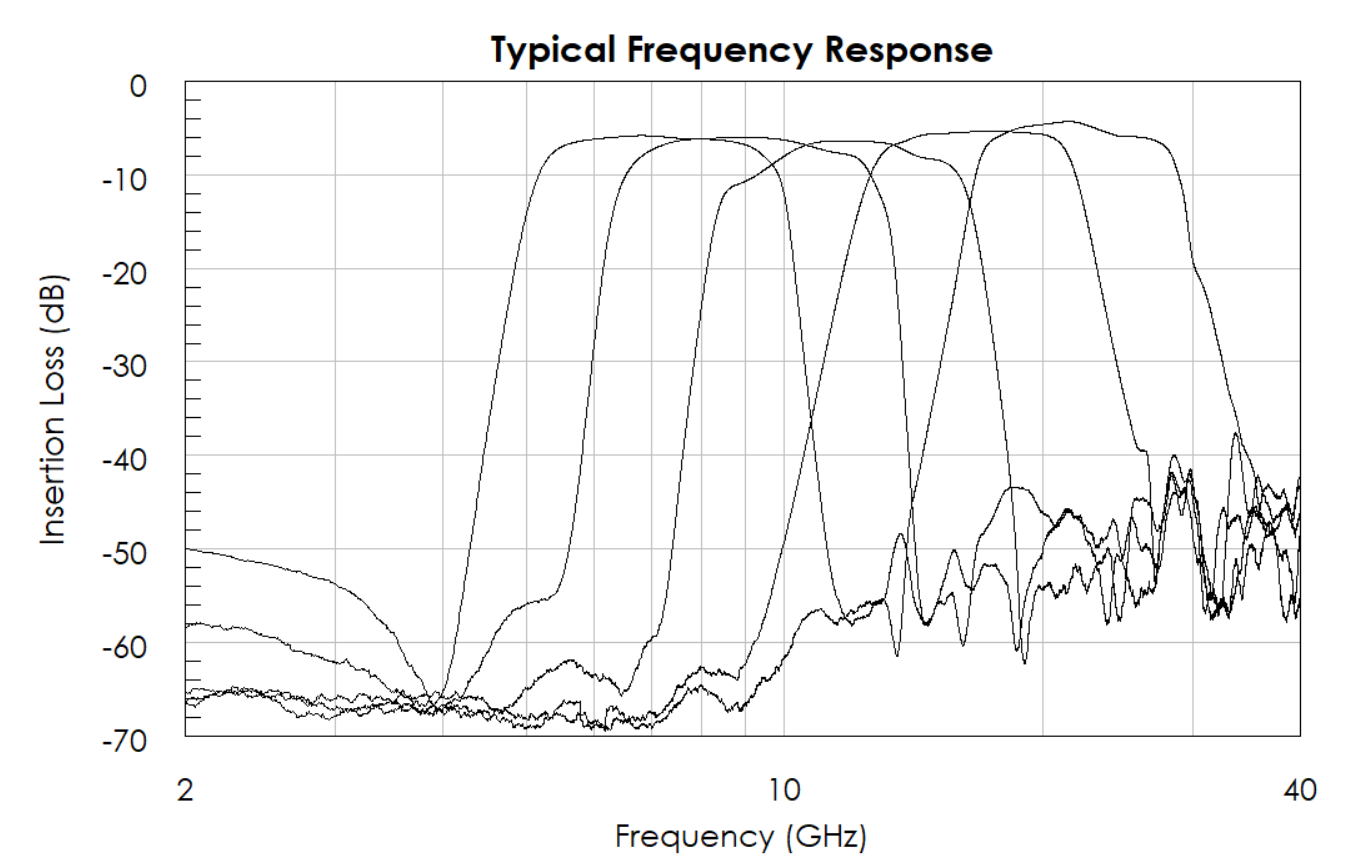

AM3186 is a sub-octave fixed bandpass filter bank covering the 6 GHz to 26.5 GHz frequency range offering low insertion loss and high out of band rejection of 50 dBc+. The filter bank contains 5 bandpass filters with full 1 GHz overlap as well as an integrated, low-loss filter bypass path to 20 GHz. AM3186 is an excellent front/back-end filter bank for a broadband receiver, transmitter, or transceiver requiring high dynamic range and small size, weight, and power consumption (low SWaP). AM3186 is packaged in a 5mm QFN package and operates over the -40C to +85C temperature range.

Product Overview

AM3186 is a sub-octave fixed bandpass filter bank covering the 6 GHz to 26.5 GHz frequency range offering low insertion loss and high out of band rejection of 50 dBc+. The filter bank contains 5 bandpass filters with full 1 GHz overlap as well as an integrated, low-loss filter bypass path to 20 GHz. AM3186 is an excellent front/back-end filter bank for a broadband receiver, transmitter, or transceiver requiring high dynamic range and small size, weight, and power consumption (low SWaP). AM3186 is packaged in a 5mm QFN package and operates over the -40C to +85C temperature range.

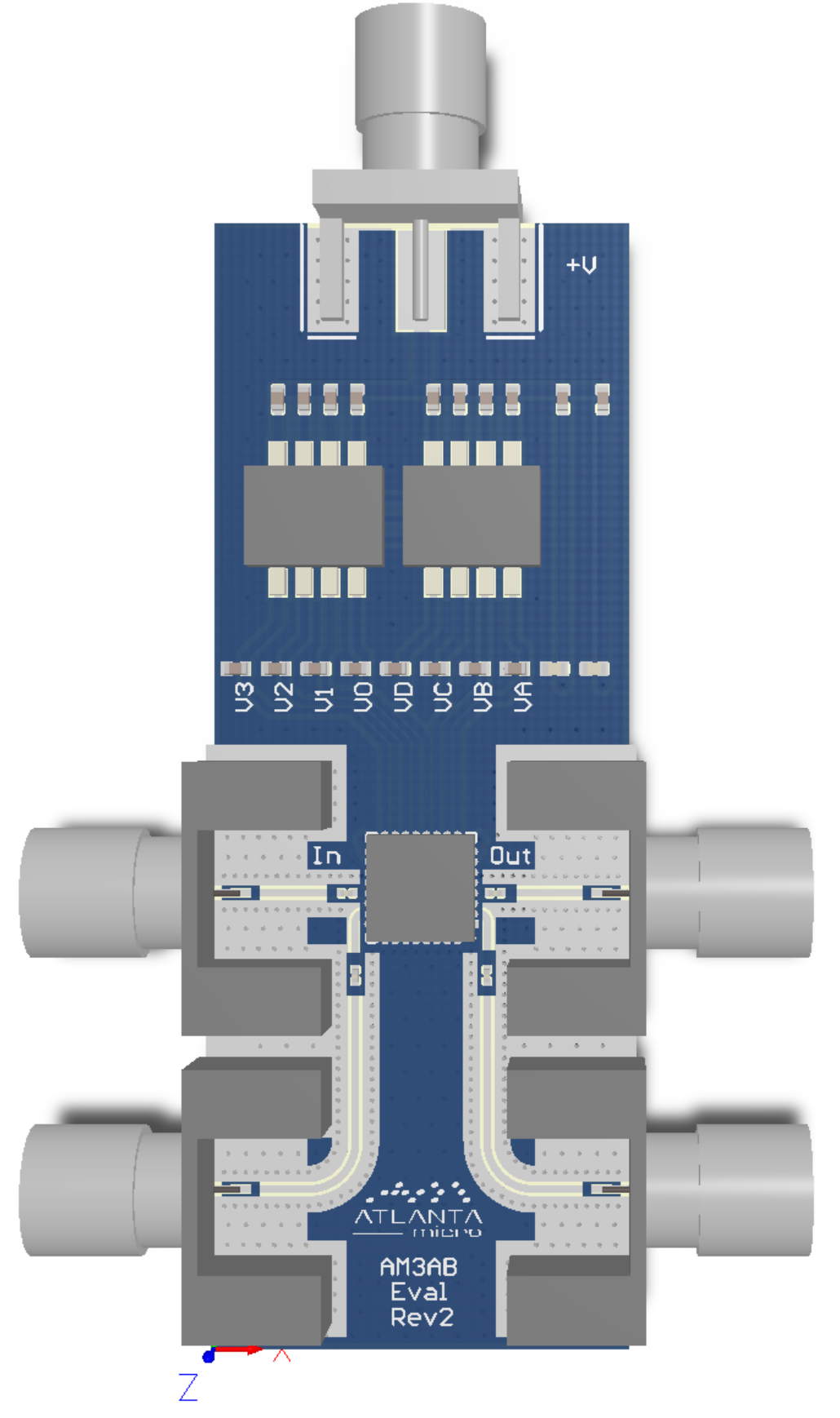

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3186 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM3186.

Specifications

Function

Switched Sub-Octave Filter Bank

Cutoff Freq Low (MHz)

6000

Cutoff Freq High (MHz)

26500

Insertion Loss (dB)

6

Typical Rejection (dB)

50

Package

5mm QFN

Bandwidth Low (MHz)

3000

Bandwidth High (MHz)

8300

Center Frequency

7200 to 22350

# in Pack

5 + Bypass

Center Freq High (MHz)

22350

Center Freq Low (MHz)

7200



ECCN: 3A001.b.5

Harmonized Code: 8542.39
