AM3139

Analog Voltage Tunable 2.5 GHz to 6.0 GHz Notch Filter Bank


Recommended for New Designs


Product Overview

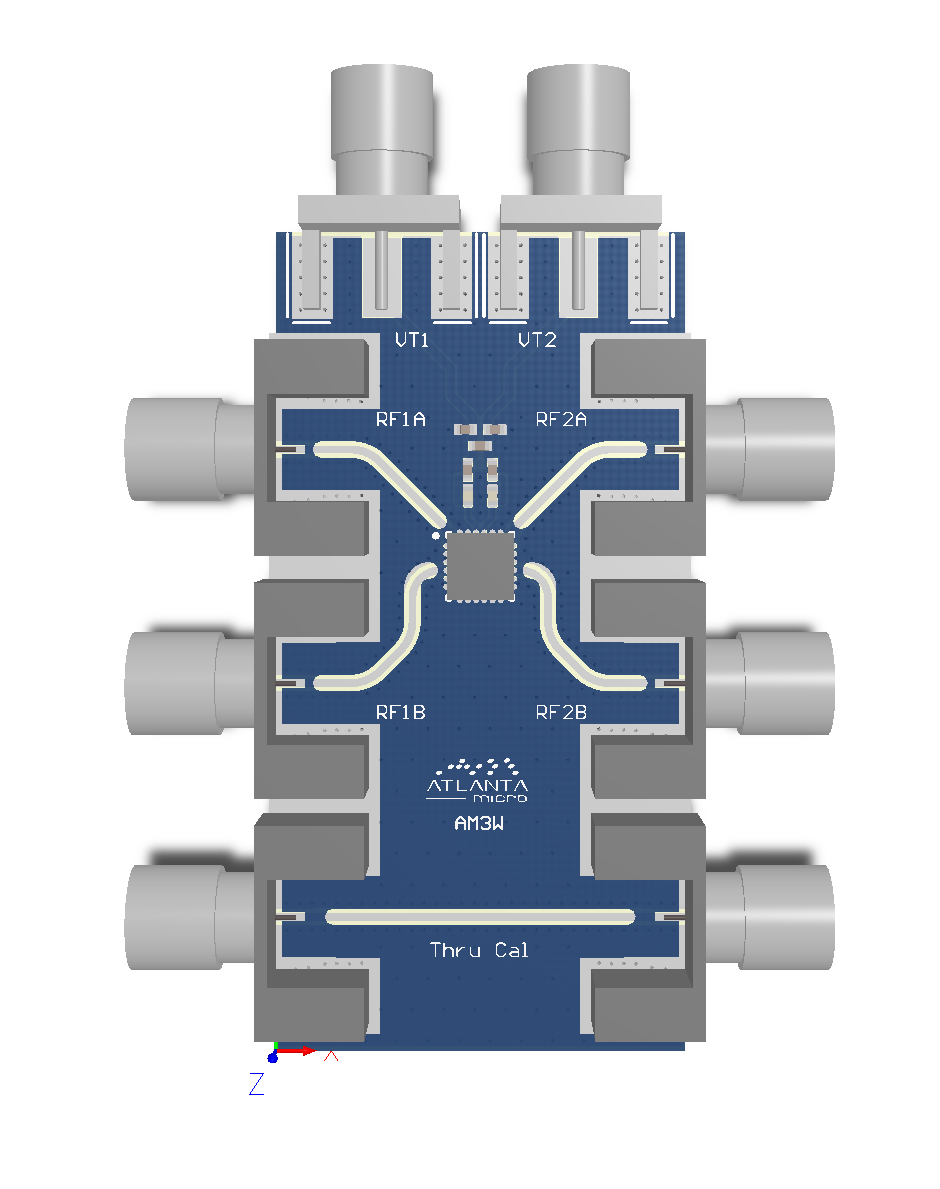

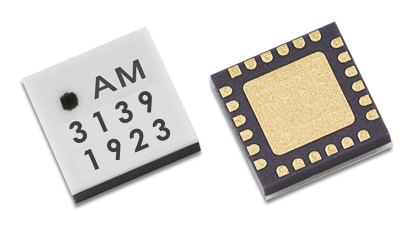

AM3139 is an analog voltage-tunable notch filter bank covering the 2.5 GHz to 6.0 GHz frequency range. The AM3139 offers two MMIC chips covering 2.5 GHz to 4.5 GHz and 3.4 GHz to 6.0 GHz for fine granularity within the AM3139’s operating range. Two separate tune voltages provide precise control of center frequency and notch bandwidth. The AM3139 is packaged in a 4mm QFN and operates over the -40C to +85C temperature range.



The AM3139 is one in a family of analog voltage-tunable notch filters offered from Atlanta Micro that covers the 0.7 GHz to 6.0 GHz frequency range. In addition to the AM3139 in this family there is the AM3137 that covers 0.7 GHz to 2.0 GHz, the AM3138 that covers 1.3 GHz to 3.25 GHz, and the AM3129 which is a switched filter bank covering 0.7 GHz to 6.0 GHz.

This family of parts provides an excellent filtering solution for a receiver or transceiver requiring flexible center frequency removal, high dynamic range, low insertion loss, and small size, low weight, and low power consumption (low SWAP).



For more information on availability and pricing, please request a quote.

Specifications

Function

Analog Tunable Notch Filter Bank

Insertion Loss (dB)

2.3

Typical Rejection (dB)

40

Package

4mm QFN

Bandwidth Low (MHz)

---

Bandwidth High (MHz)

20%

Center Frequency

Tunable

# in Pack

2

Center Freq High (MHz)

6000

Center Freq Low (MHz)

2500



ECCN: In process

Harmonized Code: In process
