AM3110

Digitally Tunable 18.0 GHz to 26.5 GHz Low Pass Filter


Recommended for New Designs


Product Overview

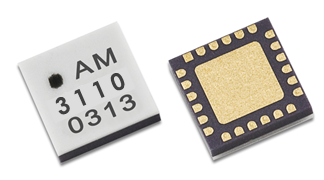

AM3110 is a miniature digitally tunable lowpass filter covering the 18.0 to 26.5 GHz frequency range.  The filter provides 16 selectable lowpass cutoff states with 4 digital control bits.  The tunable lowpass filter can be combined with one of Atlanta Micro’s tunable highpass filters to provide a flexible tunable bandpass filter solution.  AM3110 has internal 50Ω matching, is packaged in a 4mm QFN package, and operates over the -40C to +85C temperature range.

For more information on availability and pricing, please request a quote.

Specifications

Function

Digitally Tunable Lowpass

Cutoff Freq Low (MHz)

18000

Cutoff Freq High (MHz)

26500

Insertion Loss (dB)

2.5

Typical Rejection (dB)

40

Package

4mm QFN



ECCN: In process

Harmonized Code: In process
