AM3064

Digitally Tunable 1.0 GHz to 6.5 GHz Band Pass Filter


Recommended for New Designs


Product Options

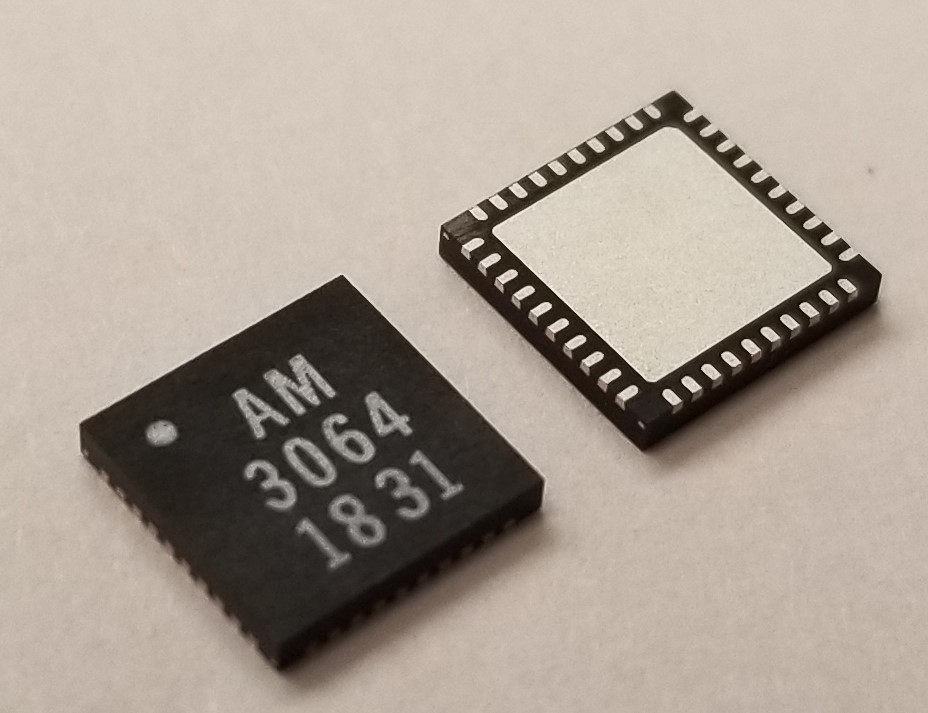

Surface Mount 6mm x 6mm QFN
Connectorized Evaluation Board

Product Overview

AM3064 is a miniature filter IC containing digitally tunable bandpass filters covering the 1.0 GHz to 6.5 GHz frequency range.  Separate low-pass and high-pass control lines provide independent control of both center frequency and bandwidth.  AM3064 is packaged in a 6mm QFN and operates over the -40C to +85C temperature range.



The AM3064 is one of three in a family of digitally tunable bandpass filter banks offered from Atlanta Micro that cover the 1 GHz to 26.5 GHz frequency range. In this family there is the AM3063 that covers 6.0 GHz to 18.0 GHz and the AM3066 that covers 12.0 GHz to 26.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Product Overview

AM3064 is a miniature filter IC containing digitally tunable bandpass filters covering the 1.0 GHz to 6.5 GHz frequency range.  Separate low-pass and high-pass control lines provide independent control of both center frequency and bandwidth.  AM3064 is packaged in a 6mm QFN and operates over the -40C to +85C temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM3064 evaluation board also includes DIP switch for control of the filter settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM3064.



The AM3064 is one of three in a family of digitally tunable bandpass filter banks offered from Atlanta Micro that cover the 1 GHz to 26.5 GHz frequency range. In this family there is the AM3063 that covers 6.0 GHz to 18.0 GHz and the AM3066 that covers 12.0 GHz to 26.5 GHz.

This family of parts provides an excellent filtering solution for receivers or transceivers requiring flexible center frequency and bandwidth, high dynamic range, small size and weight, and low power consumption.

Specifications

Function

Digitally Tunable Filter Bank

Cutoff Freq Low (MHz)

1000

Cutoff Freq High (MHz)

6500

Insertion Loss (dB)

3

Typical Rejection (dB)

50

Package

6mm QFN

Bandwidth Low (MHz)

Adjustable

Bandwidth High (MHz)

Adjustable

Center Frequency

Adjustable

# in Pack

2



ECCN: In process

Harmonized Code: In process
