AM2010

DC to 30 GHz, 0 to 31 dB 5-bit Digital Step Attenuator


Recommended for New Designs


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM2010 is a wideband 31dB 5-Bit digital attenuator covering the DC to 30 GHz frequency range in 1-dB steps.  The positive control device provides low insertion loss, flat frequency response, and low attenuation error over the operating temperature range of -40C to +85C.  Packaged in a 4mm QFN with internal 50Ω matching, internal decoder circuitry, and drawing less than 2mA of current, the AM2010 is suited for low SWaP applications.

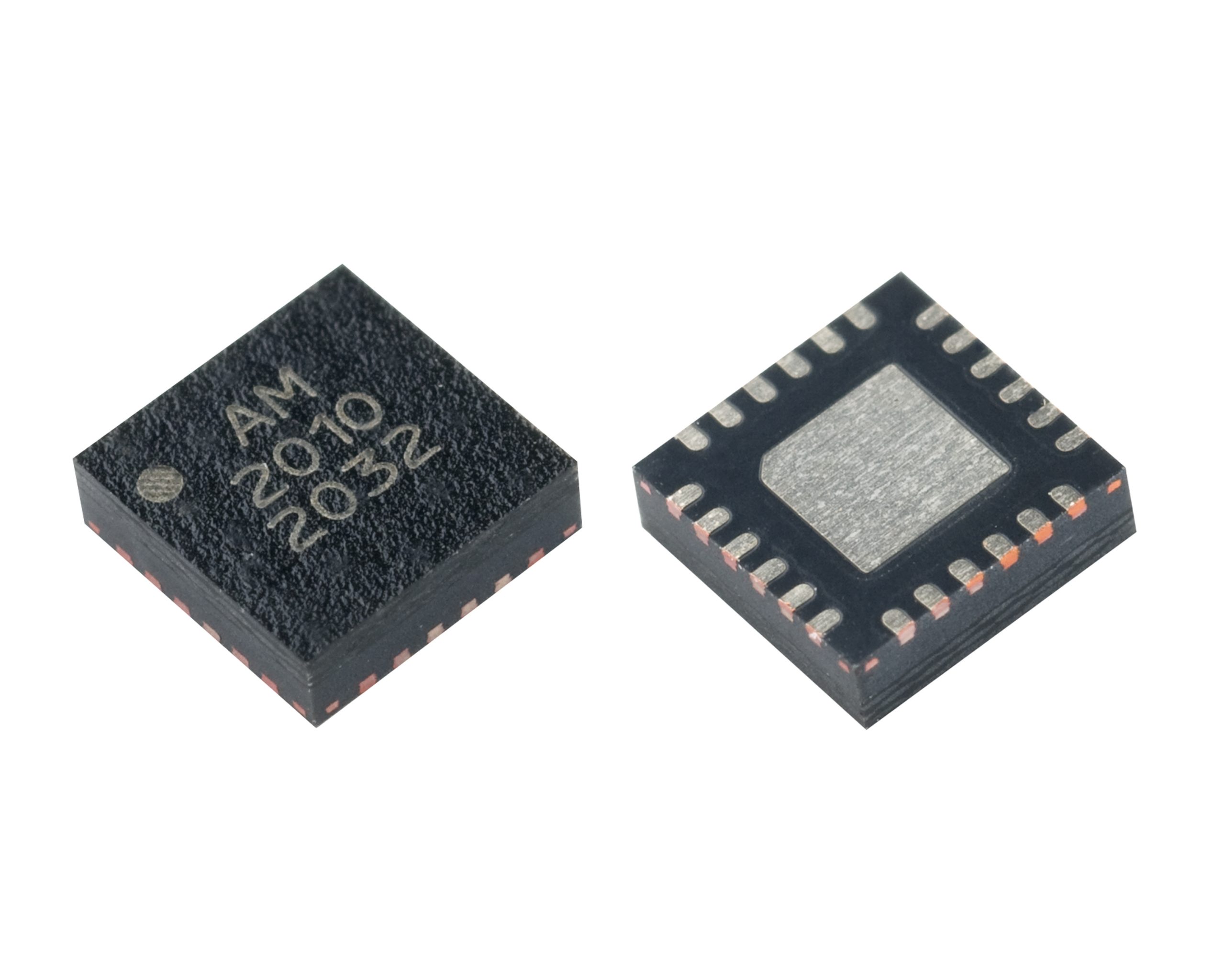

Note: Generic part picture shown.

Product Overview

AM2010 is a wideband 31dB 5-Bit digital attenuator covering the DC to 30 GHz frequency range in 1-dB steps.  The positive control device provides low insertion loss, flat frequency response, and low attenuation error over the operating temperature range of -40C to +85C.  Packaged in a 4mm QFN with internal 50Ω matching, internal decoder circuitry, and drawing less than 2mA of current, the AM2010 is suited for low SWaP applications.

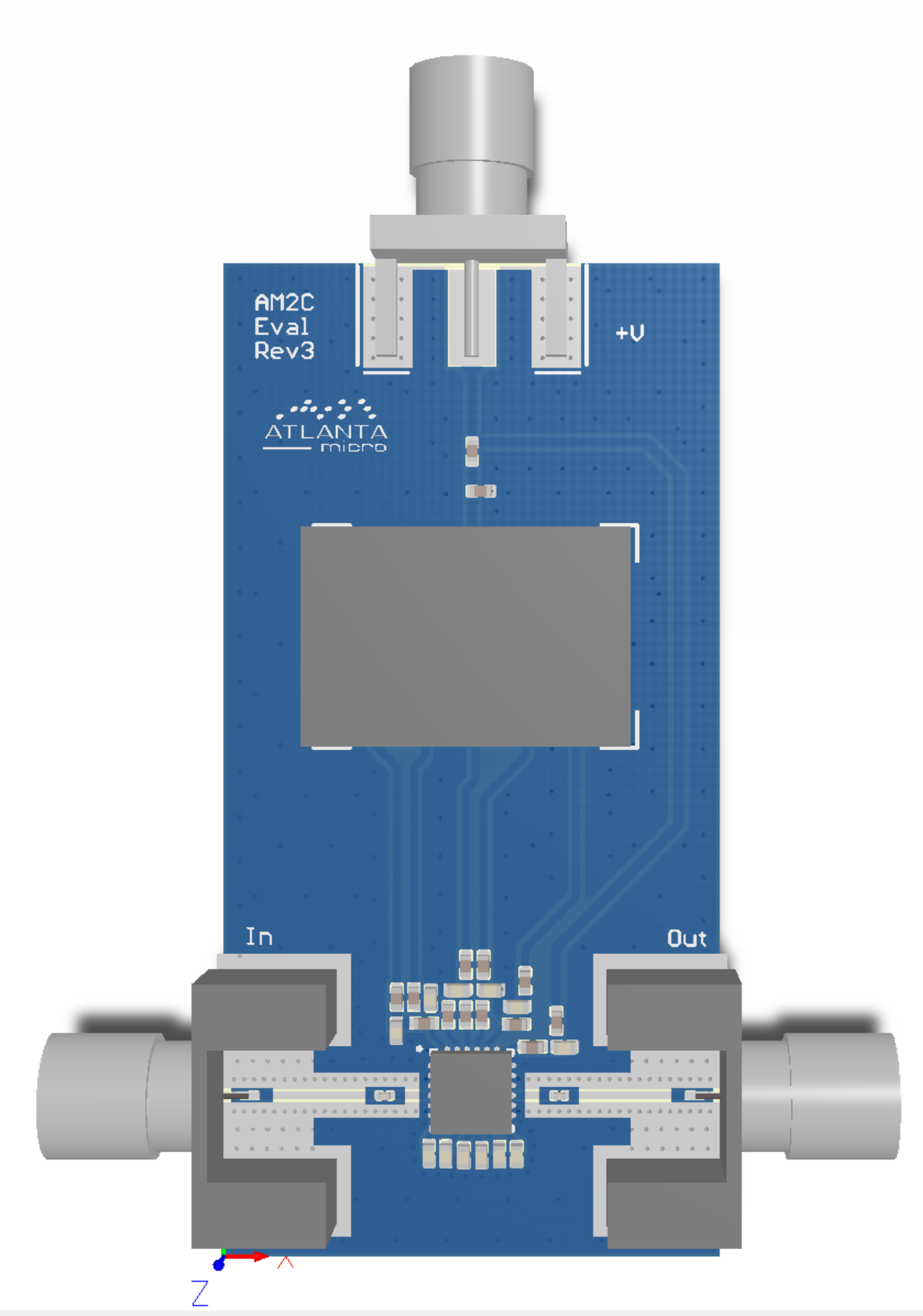

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM2010 evaluation board also includes DIP switch for control of the attenuator settings. This switch is included with the evaluation board unless otherwise requested. Evaluation board includes AM2010.

Specifications

Function

5-bit 1dB Steps

Freq. (GHz)

DC - 30

Insertion Loss (dB)

3.5

Atten. (dB)

31

IIP3 (dBm)

42

Supply (+V)

3.3

Supply (mA)

1

Control

3.3

Package

4mm QFN



ECCN: EAR99

Harmonized Code: 8542.39.0000
