AM1109

2 GHz to 20 GHz Broadband Low Noise Amplifier


Recommended for New Designs


Product Options

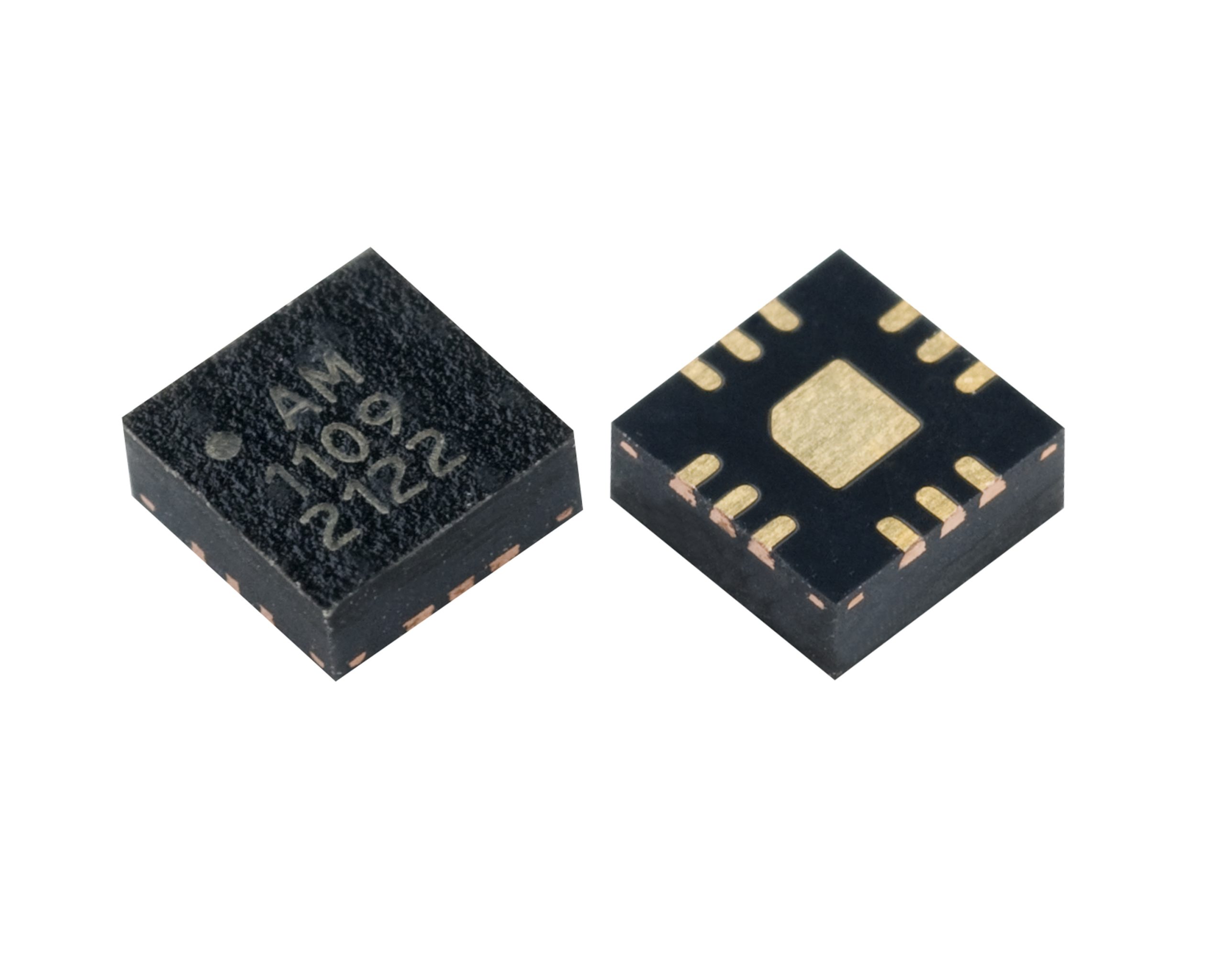

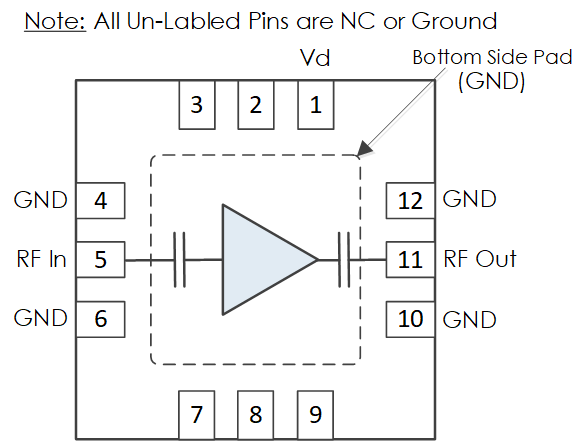

Surface Mount 3mm x 3mm QFN

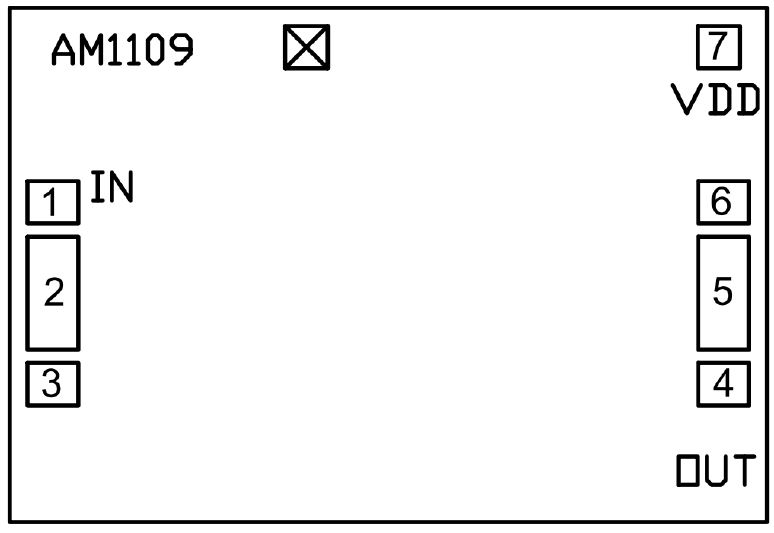

Connectorized Evaluation Board

Product Overview

AM1109 is a broadband, cascadable low noise amplifier servicing the 2 to 20 GHz frequency range. The device exhibits moderate noise figure and gain flatness. Packaged in a 3mm QFN with internal 50Ω matching, integrated DC blocking capacitors, and drawing less than 180mW of power, the AM1109 is well suited for low SWaP applications.

Product Overview

AM1109 is a broadband, cascadable low noise amplifier servicing the 2 to 20 GHz frequency range. The device exhibits moderate noise figure and gain flatness. Packaged in a 3mm QFN with internal 50Ω matching, integrated DC blocking capacitors, and drawing less than 180mW of power, the AM1109 is well suited for low SWaP applications.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1109.

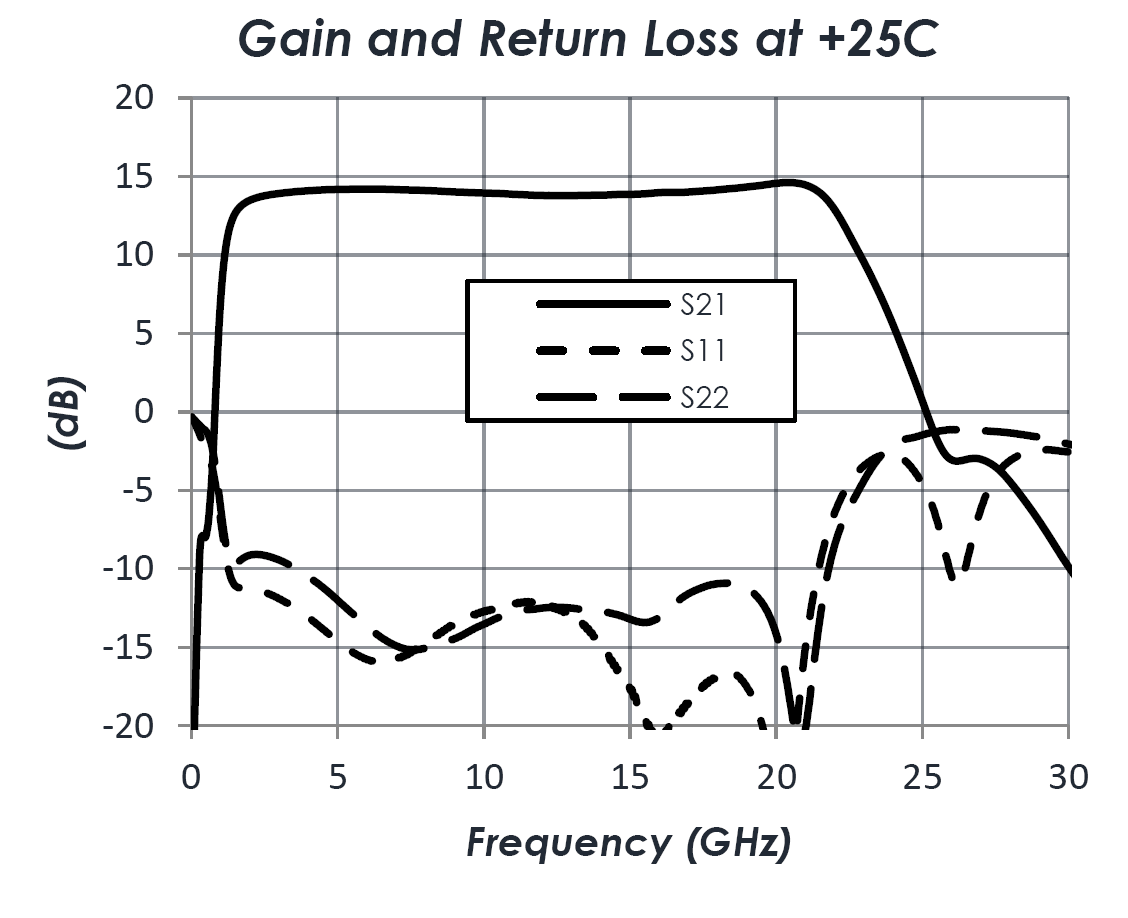

Specifications

Function

Low Noise Amplifier

Freq. (GHz)

2 - 20

Gain (dB)

14

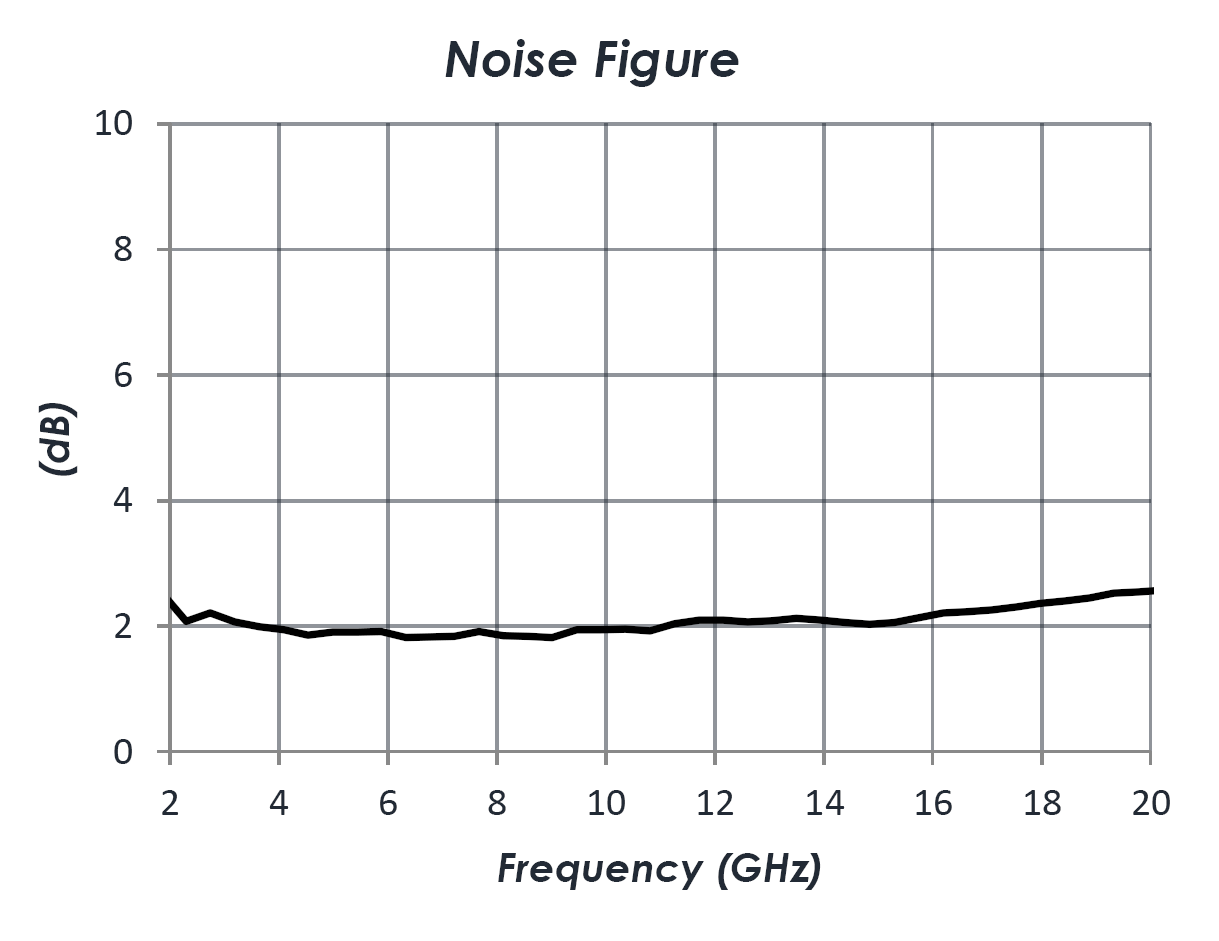

NF (dB)

2

OIP3 (dBm)

30

Surface Mount

3mm QFN

Supply (+V)

3.3

P1dB (dBm)

16

Supply (mA)

54

Module

No



ECCN: EAR99

Harmonized Code: 8542.33

AM1109

2 GHz to 20 GHz Broadband Low Noise Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board

Product Overview

AM1109 is a broadband, cascadable low noise amplifier servicing the 2 to 20 GHz frequency range. The device exhibits moderate noise figure and gain flatness. Packaged in a 3mm QFN with internal 50Ω matching, integrated DC blocking capacitors, and drawing less than 180mW of power, the AM1109 is well suited for low SWaP applications.

Product Overview

AM1109 is a broadband, cascadable low noise amplifier servicing the 2 to 20 GHz frequency range. The device exhibits moderate noise figure and gain flatness. Packaged in a 3mm QFN with internal 50Ω matching, integrated DC blocking capacitors, and drawing less than 180mW of power, the AM1109 is well suited for low SWaP applications.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1109.

Specifications

Function

Low Noise Amplifier

Freq. (GHz)

2 - 20

Gain (dB)

14

NF (dB)

2

OIP3 (dBm)

30

Surface Mount

3mm QFN

Supply (+V)

3.3

P1dB (dBm)

16

Supply (mA)

54

Module

No



ECCN: EAR99

Harmonized Code: 8542.33
