AM6015

DC to 18 GHz Reflective SP6T


Recommended for New Designs


Product Options

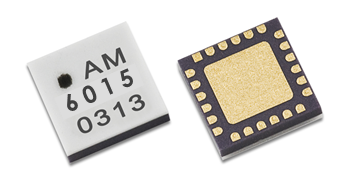

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM6015 is a Single-Pole Six-Throw (SP6T) switch covering the DC to 18 GHz frequency range.  The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

Product Overview

AM6015 is a Single-Pole Six-Throw (SP6T) switch covering the DC to 18 GHz frequency range.  The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

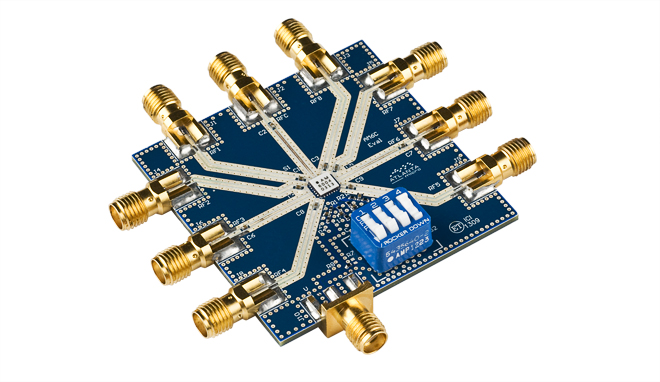

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6015 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6015.

Specifications

Function

SP6T, Reflective

Freq. (GHz)

DC - 18

Insertion Loss (dB)

2

Isolation (dB)

36

IIP3 (dBm)

40

Supply (+V)

3.3 to 5.0

Supply (mA)

9

Control

3.0 to 5.0

Package

4mm QFN



ECCN: EAR99

Harmonized Code: 8525.50.7050

AM6015

DC to 18 GHz Reflective SP6T


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 4mm x 4mm QFN
Connectorized Evaluation Board

Product Overview

AM6015 is a Single-Pole Six-Throw (SP6T) switch covering the DC to 18 GHz frequency range.  The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

Product Overview

AM6015 is a Single-Pole Six-Throw (SP6T) switch covering the DC to 18 GHz frequency range.  The positive control device provides low insertion loss, flat frequency response, and high isolation over the operating temperature range of -40C to +85C.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. AM6015 evaluation board also includes DIP switch for control of the switch settings. This switch is included with the evaluation board unless otherwise requested.Evaluation board includes AM6015.

Specifications

Function

SP6T, Reflective

Freq. (GHz)

DC - 18

Insertion Loss (dB)

2

Isolation (dB)

36

IIP3 (dBm)

40

Supply (+V)

3.3 to 5.0

Supply (mA)

9

Control

3.0 to 5.0

Package

4mm QFN



ECCN: EAR99

Harmonized Code: 8525.50.7050
