AM4008

2 GHz to 26.5 GHz 2-Way 0-Degree Splitter


Recommended for New Designs


Product Options

Surface Mount 1.3mm x 2mm DFN
Connectorized Evaluation Board

Product Overview

AM4008 is a broadband two-way power splitter / combiner providing low loss and high isolation from 2 GHz to 26.5 GHz. With internal 50Ω matching and packaged in a 1.3mm by 2.0mm DFN, the AM4008 represents a compact total PCB footprint.

Product Overview

AM4008 is a broadband two-way power splitter / combiner providing low loss and high isolation from 2 GHz to 26.5 GHz. With internal 50Ω matching and packaged in a 1.3mm by 2.0mm DFN, the AM4008 represents a compact total PCB footprint.

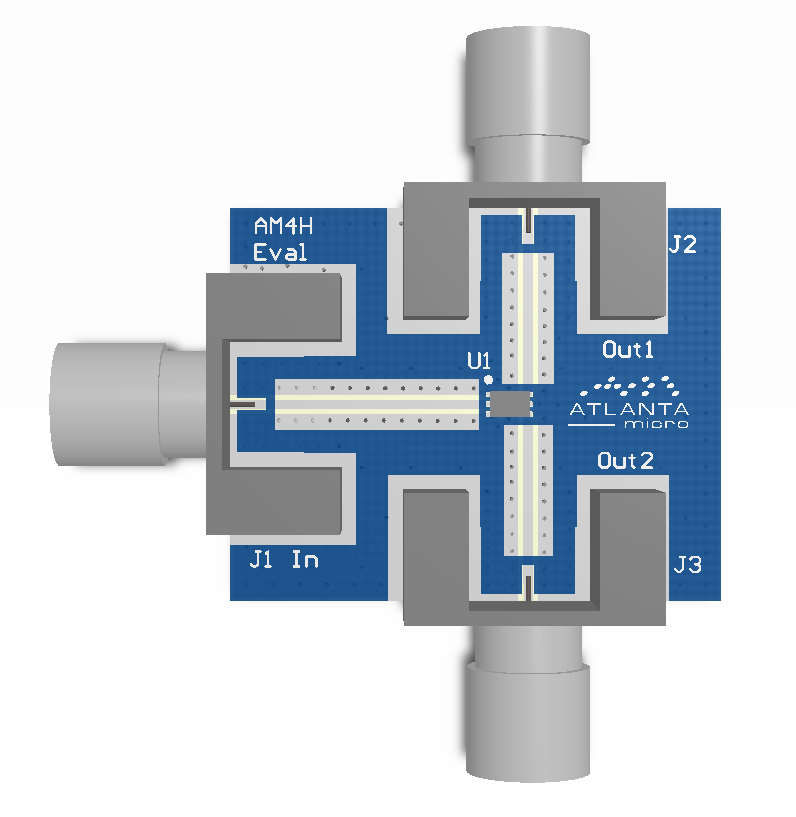

Evaluation board includes SMA input and output connectors unless otherwise requested. Evaluation board includes AM4008.

Specifications

Function

2-Way 0 Degree

Freq. (GHz)

2 - 26.5

Insertion Loss (dB)

2

Isolation (dB)

18

P1dB (dBm)

27

Package

1.3 x 2.0mm DFN



ECCN: EAR99

Harmonized Code: 8542.39.0000
