AtlantaMicro

AM1164-1

DC to 8 GHz Low Noise Amplifier


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Surface Mount 1.3mm x 2mm DFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

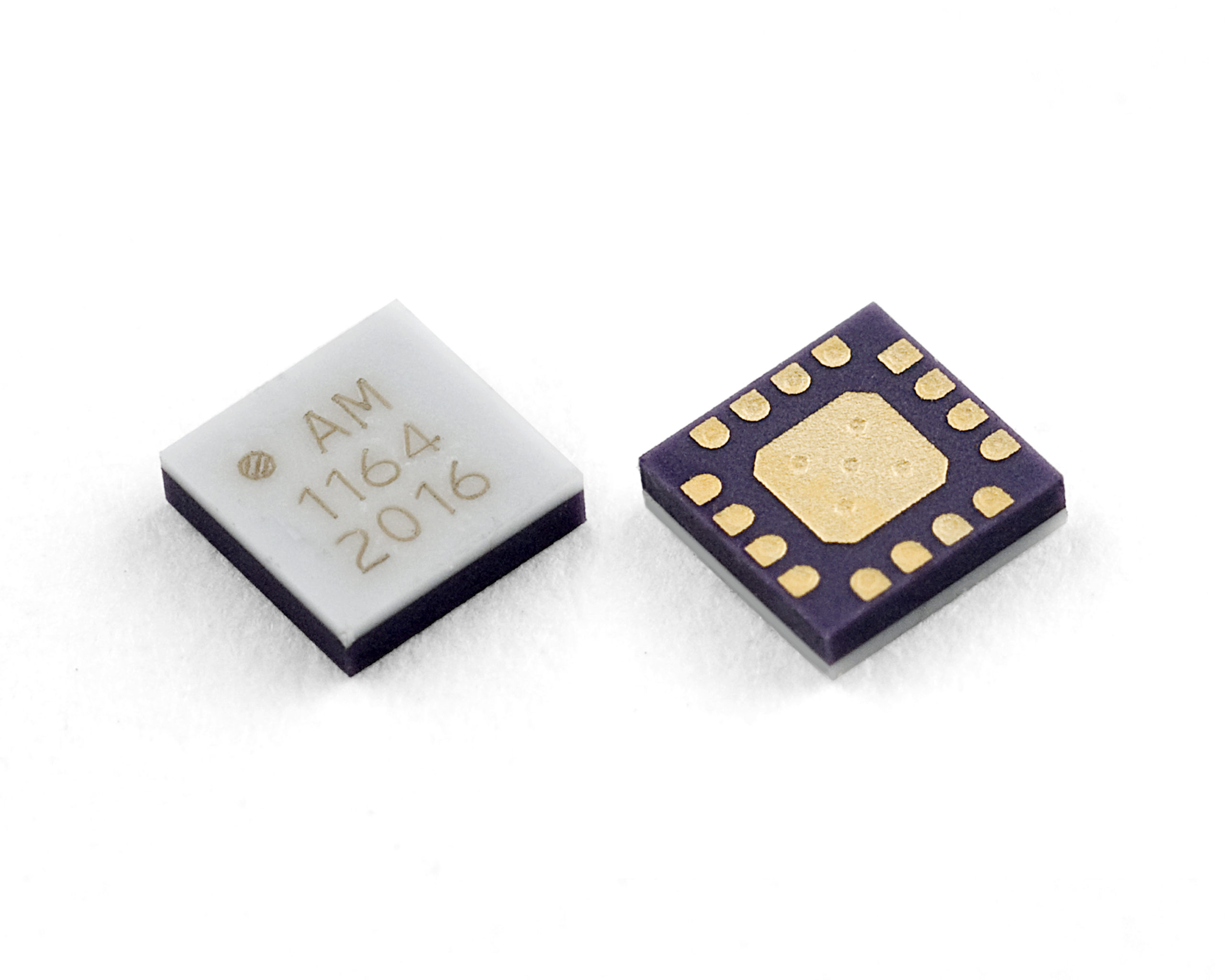

The AM1164-1 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1164-1 represents a compact total PCB footprint.

The AM1164 is also available in a 1.3mm x 2mm DFN form factor as the AM1164-2.

Product Overview

The AM1164-2 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1164-2 represents a compact total PCB footprint.

For more information, view the AM1164-2 product page.

Product Overview

The AM1164-1 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1164-1 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1164-1.

The AM1164 is also available in a 1.3mm x 2mm DFN form factor as the AM1164-2.

Product Overview

The AM1164-2 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1164-2 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1164-2.

For more information, view the AM1164-2 product page.

Product Overview

The AM1164-1 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1164-1 represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.



Specifications

Function

Low Noise Amplifier

Freq. (GHz)

DC - 8

Gain (dB)

21

NF (dB)

1.5

OIP3 (dBm)

33

Surface Mount

3mm QFN

Supply (+V)

3.3 / 5

P1dB (dBm)

17 / 20

Supply (mA)

40 / 85

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33

AM1164-1

DC to 8 GHz Low Noise Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Surface Mount 1.3mm x 2mm DFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

The AM1164-1 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1164-1 represents a compact total PCB footprint.

The AM1164 is also available in a 1.3mm x 2mm DFN form factor as the AM1164-2.

Product Overview

The AM1164-2 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1164-2 represents a compact total PCB footprint.

For more information, view the AM1164-2 product page.

Product Overview

The AM1164-1 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1164-1 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1164-1.

The AM1164 is also available in a 1.3mm x 2mm DFN form factor as the AM1164-2.

Product Overview

The AM1164-2 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1164-2 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1164-2.

For more information, view the AM1164-2 product page.

Product Overview

The AM1164-1 is a high dynamic range amplifier covering up to to 8 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1164 provides similar performance to Atlanta Micro’s AM1064 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1164-1 represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.



Specifications

Function

Low Noise Amplifier

Freq. (GHz)

DC - 8

Gain (dB)

21

NF (dB)

1.5

OIP3 (dBm)

33

Surface Mount

3mm QFN

Supply (+V)

3.3 / 5

P1dB (dBm)

17 / 20

Supply (mA)

40 / 85

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33
