AtlantaMicro

AM1163-2

DC to 10 GHz Miniature Low Noise Amplifier


Recommended for New Designs


Product Options

Surface Mount 1.3mm x 2mm DFN

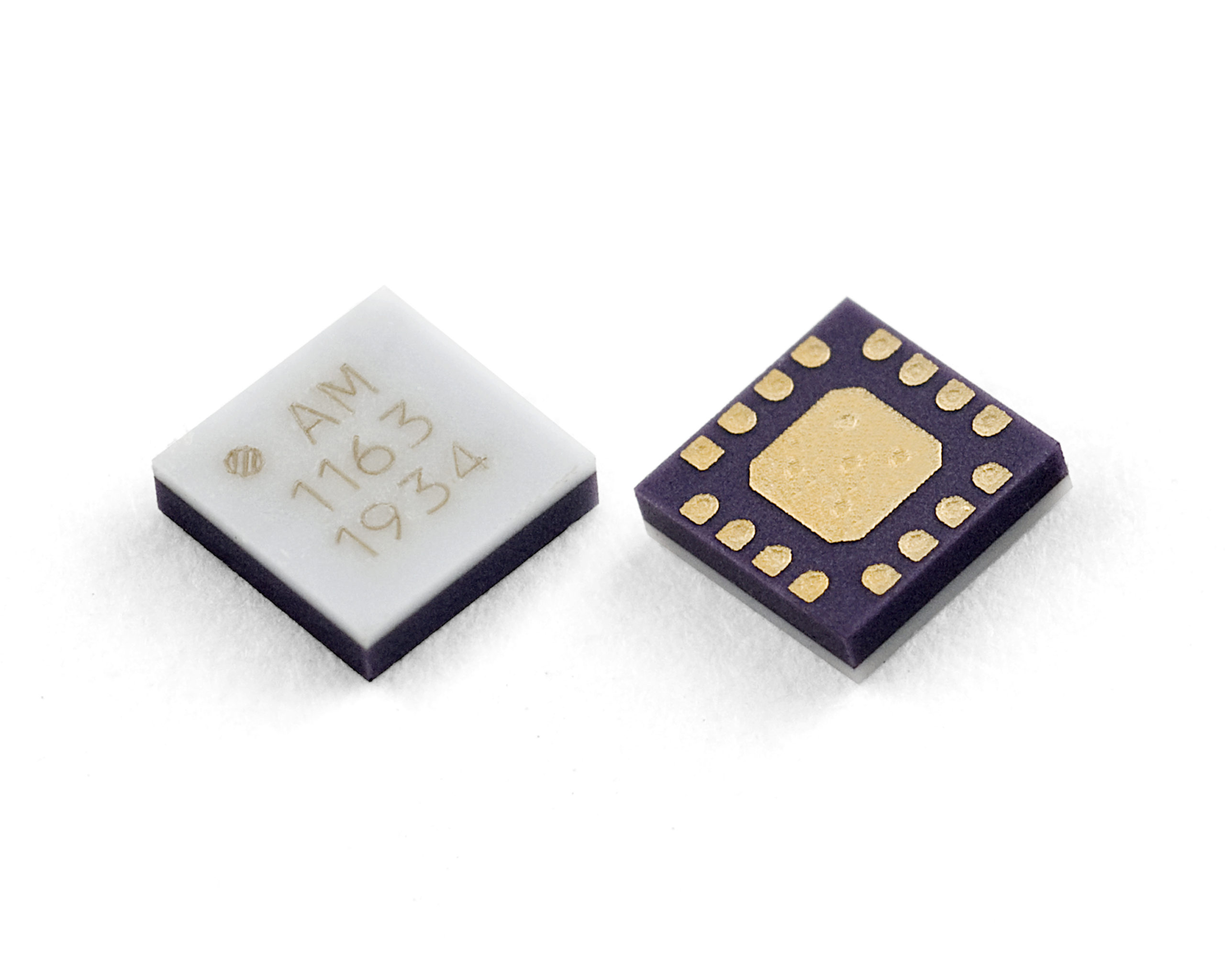

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

The AM1163-2 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1163-2 represents a compact total PCB footprint.

The AM1163 is also available in a 3mm QFN form factor as the AM1163-1.

Product Overview

The AM1163-1 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1163-1 represents a compact total PCB footprint.

For more information, view the AM1163-1 product page.

Product Overview

The AM1163-2 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1163-2 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1163-2.

The AM1163 is also available in a 3mm QFN form factor as the AM1163-1.

Product Overview

The AM1163-1 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1163-1 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1163-1.

For more information, view the AM1163-1 product page.

Product Overview

The AM1163-1 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1163-1 represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Miniature Low Noise Amplifier

Freq. (GHz)

DC - 10

Gain (dB)

15

NF (dB)

2

OIP3 (dBm)

30

Surface Mount

1.3mm x 2mm DFN

Supply (+V)

3.3 / 5

P1dB (dBm)

16 / 20

Supply (mA)

42 / 80

Module

No



ECCN: EAR99

Harmonized Code: 8542.33

AM1163-2

DC to 10 GHz Miniature Low Noise Amplifier


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 1.3mm x 2mm DFN
Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

The AM1163-2 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1163-2 represents a compact total PCB footprint.

The AM1163 is also available in a 3mm QFN form factor as the AM1163-1.

Product Overview

The AM1163-1 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1163-1 represents a compact total PCB footprint.

For more information, view the AM1163-1 product page.

Product Overview

The AM1163-2 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN the AM1163-2 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1163-2.

The AM1163 is also available in a 3mm QFN form factor as the AM1163-1.

Product Overview

The AM1163-1 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1163-1 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1163-1.

For more information, view the AM1163-1 product page.

Product Overview

The AM1163-1 is a high dynamic range amplifier covering up to to 10 GHz. The device exhibits a moderate positive gain-slope, providing frequency equalization useful in many broadband applications. AM1163 provides similar performance to Atlanta Micro’s AM1063 with the benefit of improved low frequency NF. With internal 50Ω matching and packaged in a 3mm QFN the AM1163-1 represents a compact total PCB footprint.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Miniature Low Noise Amplifier

Freq. (GHz)

DC - 10

Gain (dB)

15

NF (dB)

2

OIP3 (dBm)

30

Surface Mount

1.3mm x 2mm DFN

Supply (+V)

3.3 / 5

P1dB (dBm)

16 / 20

Supply (mA)

42 / 80

Module

No



ECCN: EAR99

Harmonized Code: 8542.33
