| Quantity | AM1116-2 | AM1116-1 | AM1116-2 Eval | AM1116-1 Eval |
|---|---|---|---|---|
| 1 | RFQ | RFQ | RFQ | RFQ |
| 10 | RFQ | RFQ | RFQ | RFQ |
| 50 | RFQ | RFQ | RFQ | RFQ |
| 100 | RFQ | RFQ | RFQ | RFQ |
| 200 | RFQ | RFQ | RFQ | RFQ |
| 500 | RFQ | RFQ | RFQ | RFQ |
| 1000+ | RFQ | RFQ | RFQ | RFQ |
Pricing is subject to change without notice.
*Minimum Order Quantity
To submit a quote request click “Add to Quote”. When you have added all desired parts for your quote, click Request Quote and enter your desired quantities.
If you have any questions about lead times or availability please contact our sales team at sales@atlantamicro.com
Pricing shown is for domestic sales only. International prices are not represented, contact local representative for more information.

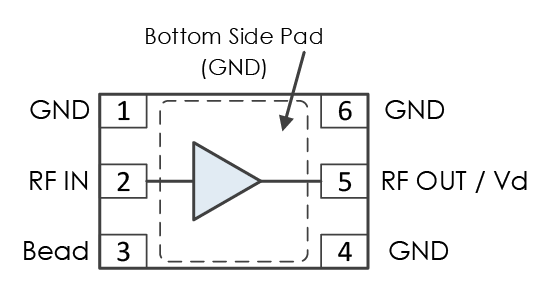

AM1116 is a high dynamic range gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 1.3mm x 2mm DFN, the AM1116-2 represents a compact total PCB footprint.

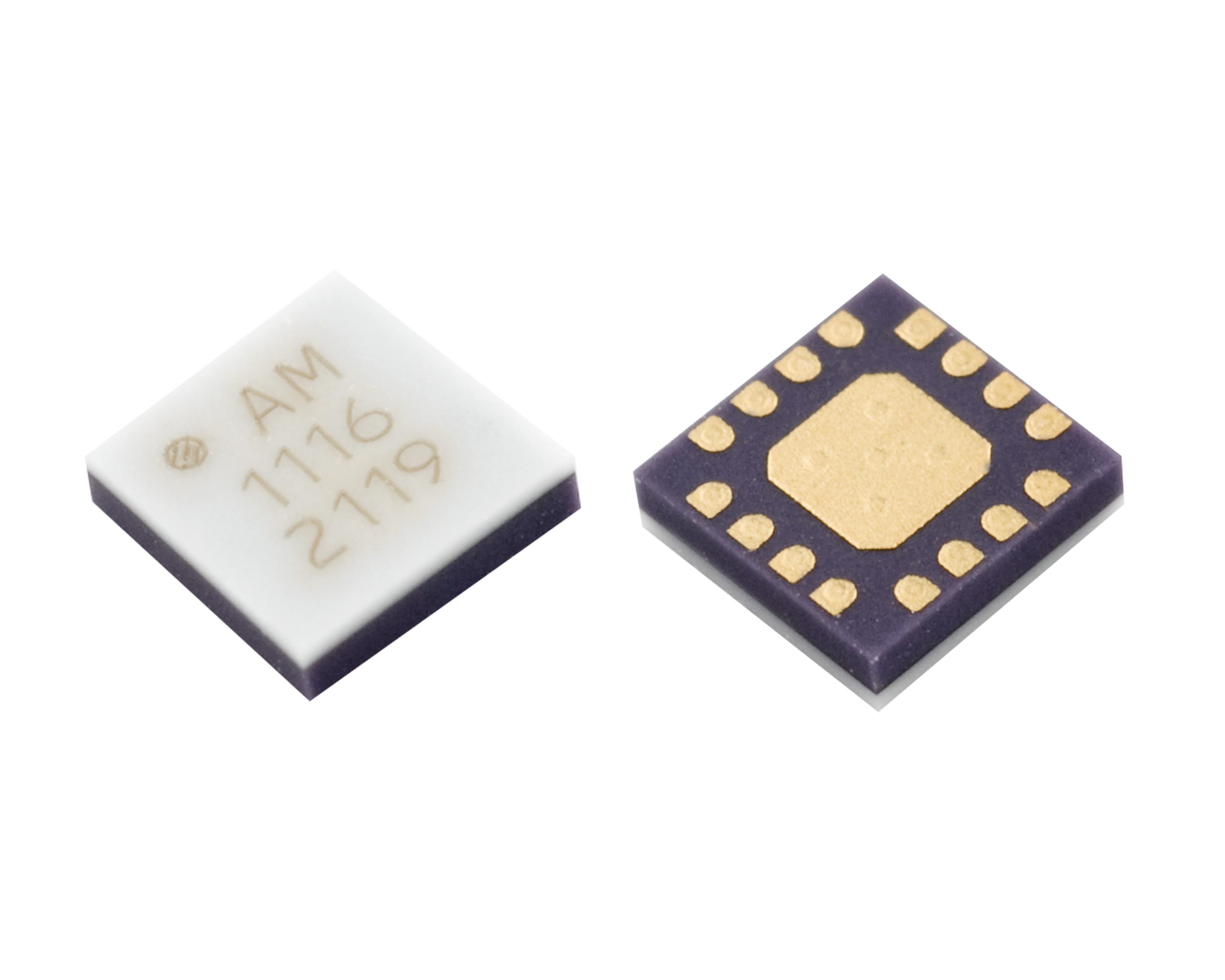

AM1116 is a high dynamic range gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1116-1 represents a compact total PCB footprint.
More information available on the AM1116-1 product page.
AM1116 is a high dynamic range gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 1.3mm x 2mm DFN, the AM1116-2 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1116-2.
AM1116 is a high dynamic range gain block covering the 20 MHz to 6 GHz frequency range. The device exhibits flat gain, low noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range. With internal 50 ohm matching and packaged in a 3mm QFN, the AM1116-1 represents a compact total PCB footprint.
Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1116-1.
Function
Low Noise Gain Block
Freq. (GHz)
0.02 - 6
Gain (dB)
15

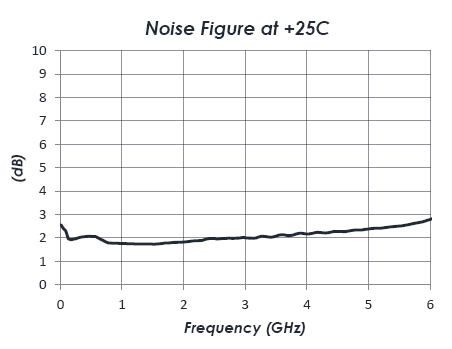

NF (dB)
2
OIP3 (dBm)
31
Surface Mount
1.3x2mm
Supply (+V)
3.3
P1dB (dBm)
17
Supply (mA)
51
Module
No
ECCN: EAR99
Harmonized Code: 8542.33
