| Quantity | AM1111 | AM1111 Eval |
|---|---|---|
| 1 | RFQ | RFQ |
| 10 | RFQ | RFQ |
| 50 | RFQ | RFQ |
| 100 | RFQ | RFQ |
| 200 | RFQ | RFQ |
| 500 | RFQ | RFQ |
| 1000+ | RFQ | RFQ |
Pricing is subject to change without notice.
*Minimum Order Quantity
To submit a quote request click “Add to Quote”. When you have added all desired parts for your quote, click Request Quote and enter your desired quantities.
If you have any questions about lead times or availability please contact our sales team at sales@atlantamicro.com
Pricing shown is for domestic sales only. International prices are not represented, contact local representative for more information.

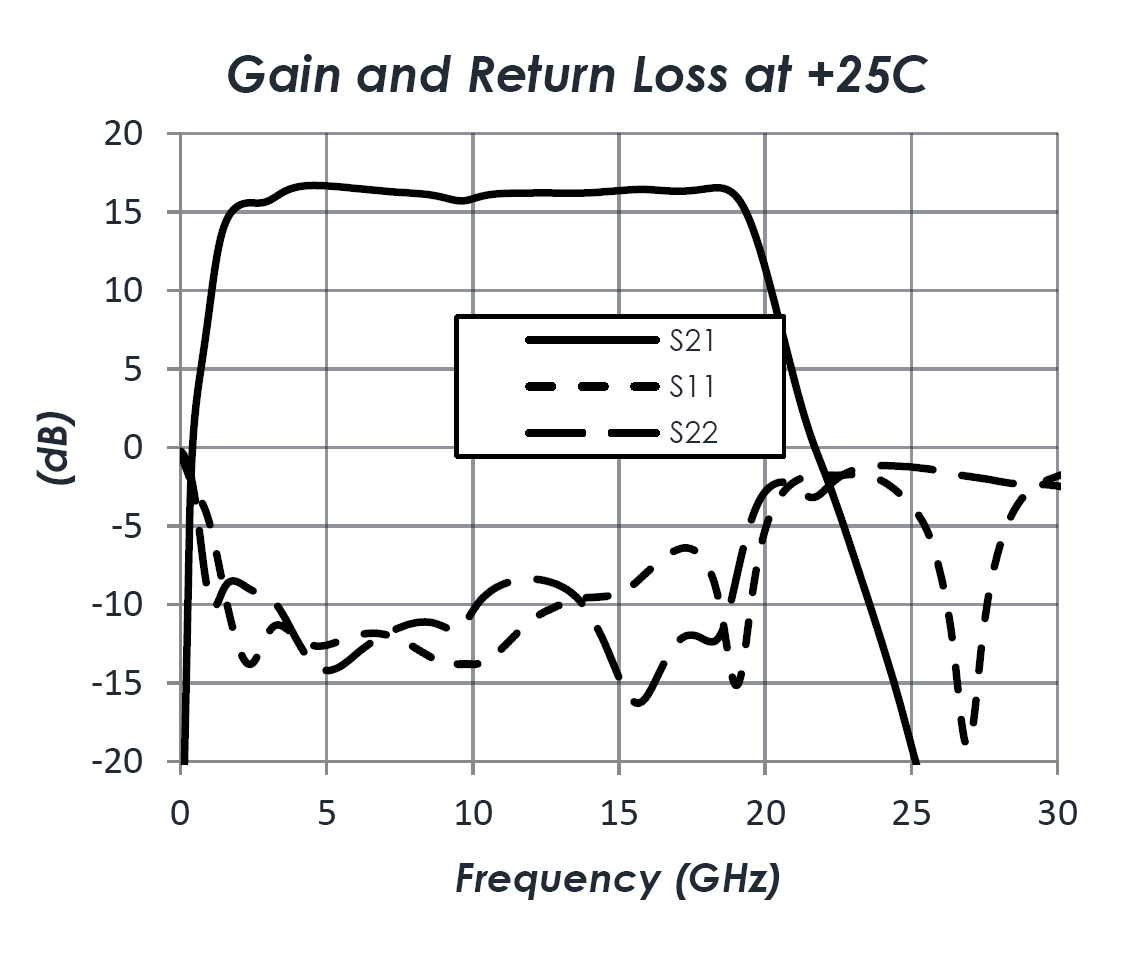

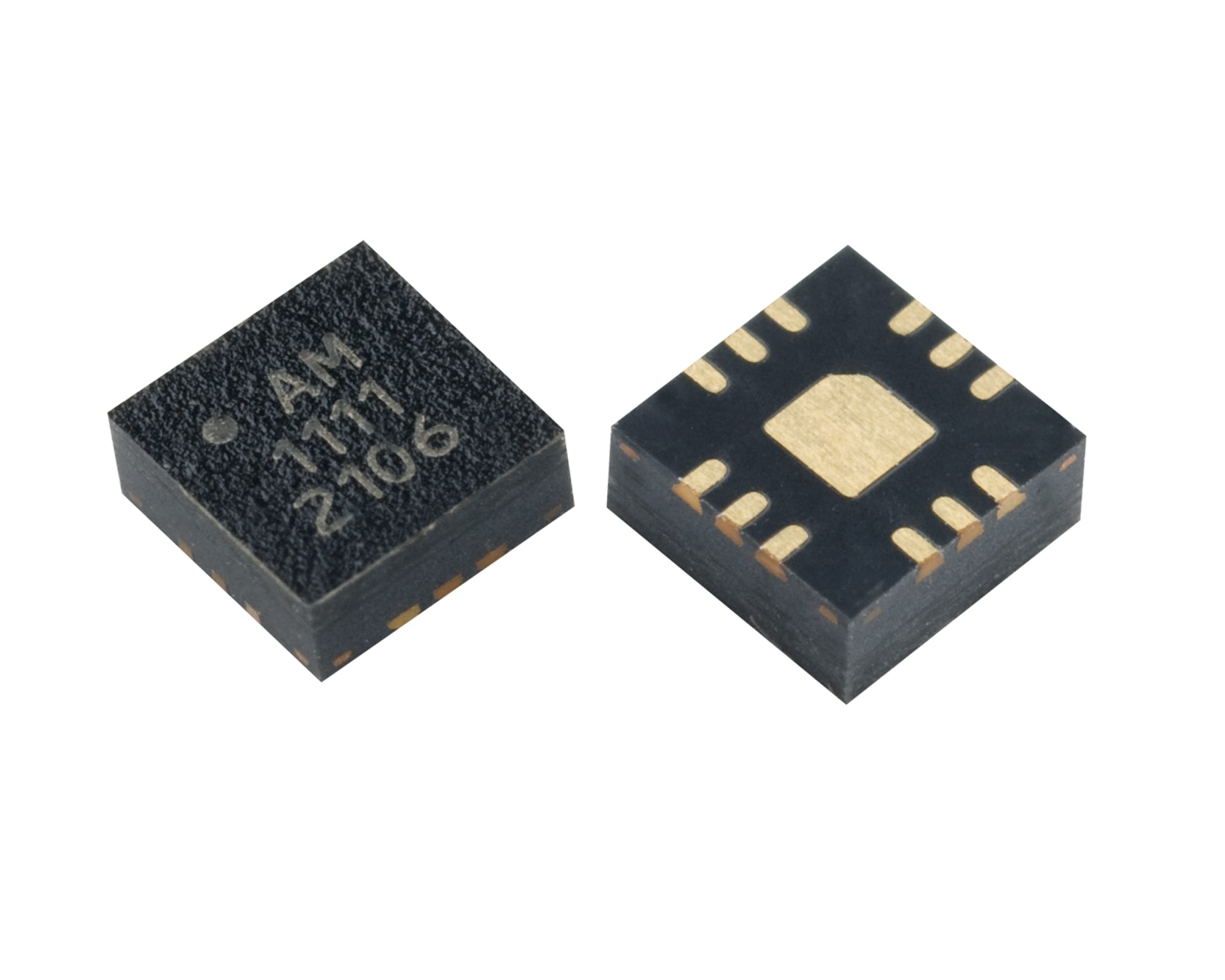

AM1111 is a wideband, cascadable amplifier servicing the 2 to 18 GHz frequency range. The device exhibits exceptional linearity and power handling capabilities across its bandwidth, while maintaining moderate gain and noise figure. Packaged in a 3mm QFN with internal 50Ω matching and DC blocking capacitors on input and output, AM1111 represents a compact total PCB footprint.
AM1111 is a wideband, cascadable amplifier servicing the 2 to 18 GHz frequency range. The device exhibits exceptional linearity and power handling capabilities across its bandwidth, while maintaining moderate gain and noise figure. Packaged in a 3mm QFN with internal 50Ω matching and DC blocking capacitors on input and output, AM1111 represents a compact total PCB footprint.

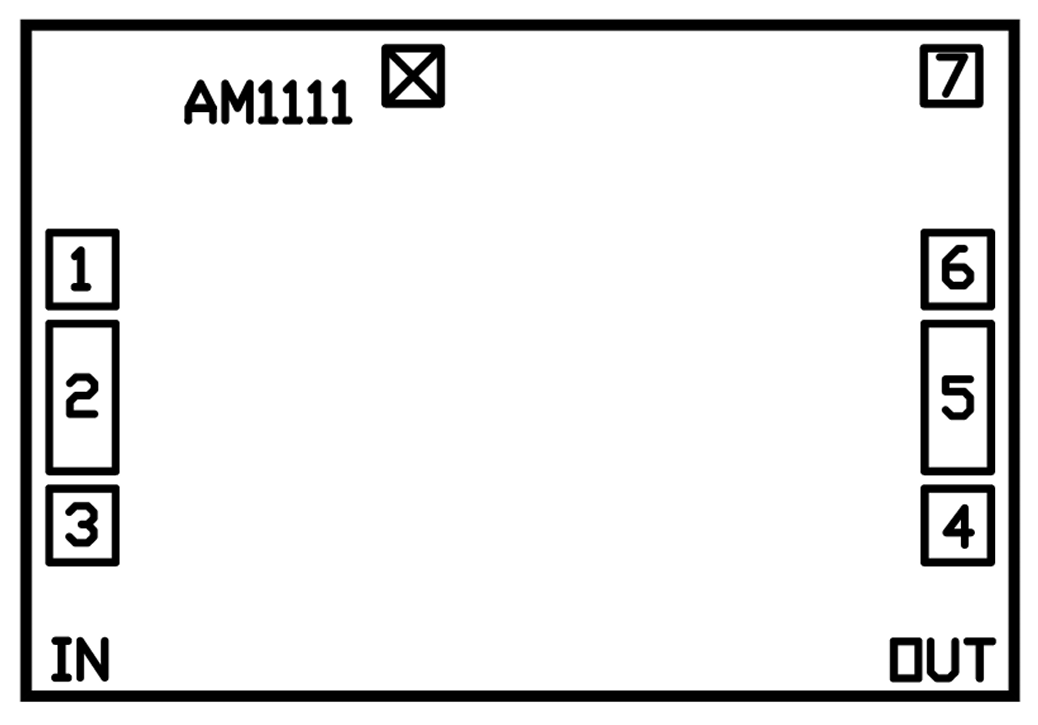

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1099.
Function
Driver Amplifier
Freq. (GHz)
2.0 - 18.0
Gain (dB)
16
NF (dB)
2.5

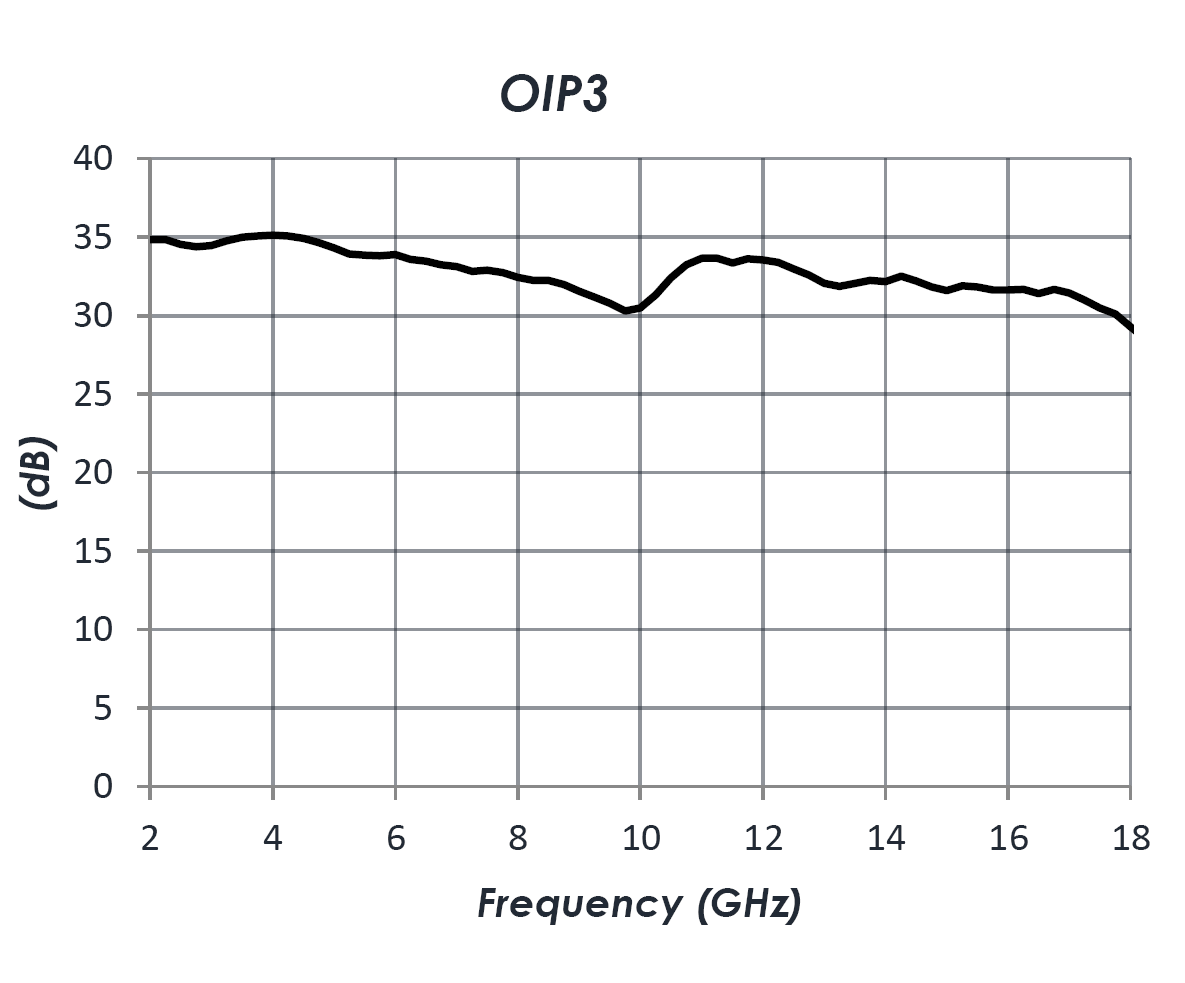

OIP3 (dBm)
32
Surface Mount
3mm
Supply (+V)
5.0
P1dB (dBm)
21
Supply (mA)
100
Module
No
ECCN: EAR99
Harmonized Code: 8542.33
