AM1090-1

DC to 6 GHz Gain Block


Recommended for New Designs


Product Overview

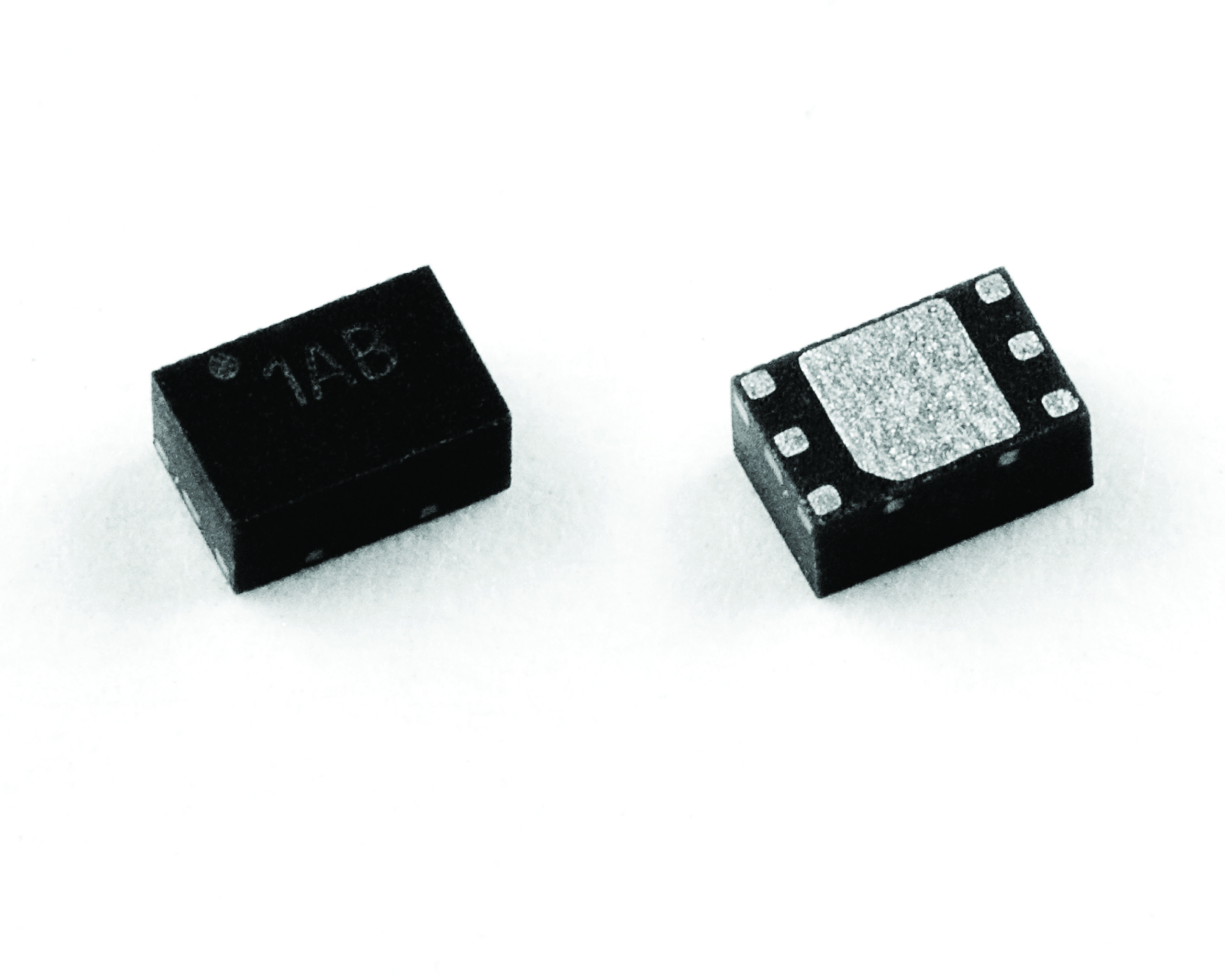

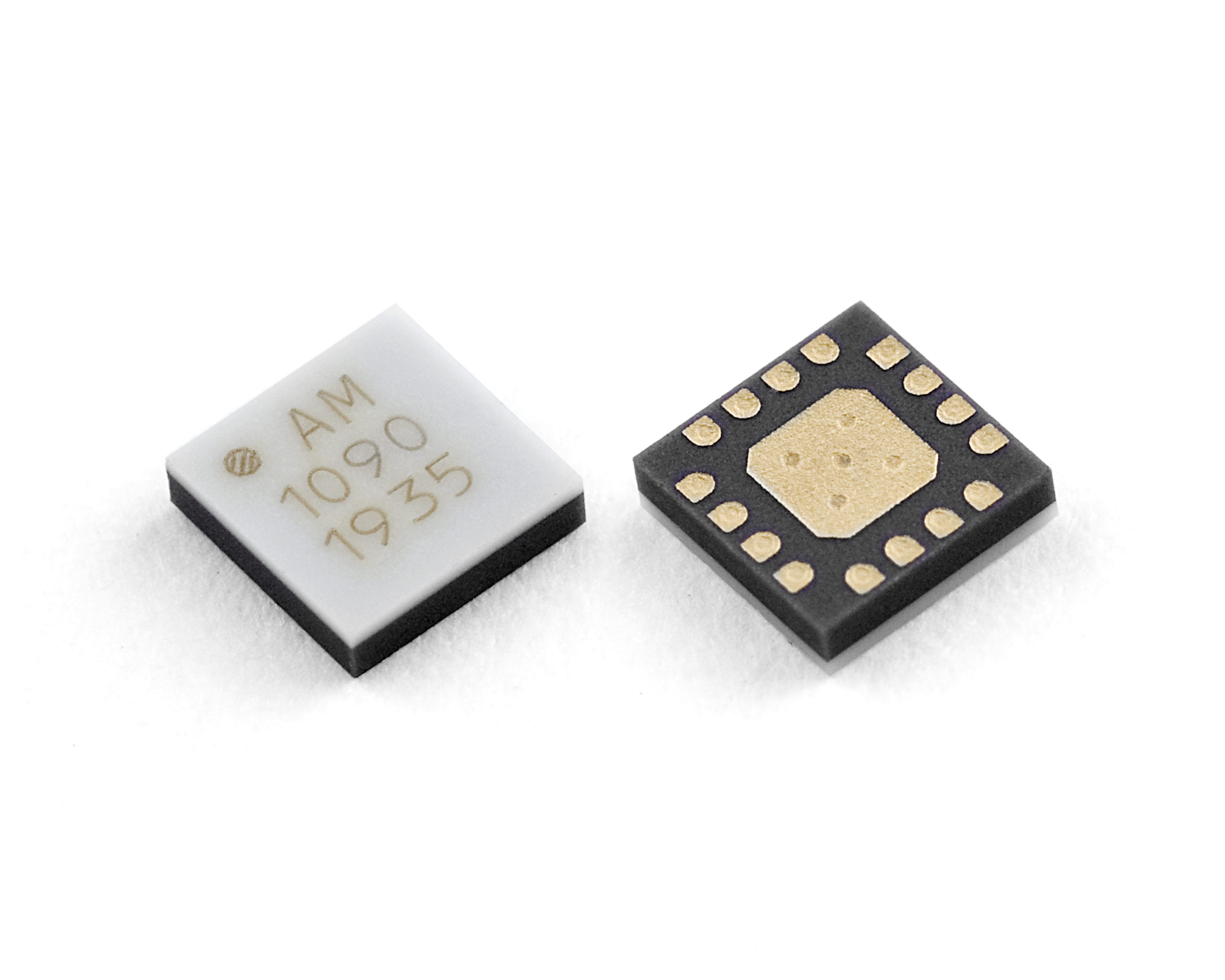

The AM1090-1 is a high dynamic range amplifier covering up to to 6 GHz. The device boasts a high 1 dB compression point, excellent gain stability over the operating temperature range, and a moderate positive gain-slope providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1090-1 represents a compact total PCB footprint.

The AM1090 is also available in a 1.3mm x 2mm DFN form factor as the AM1090-2.



For more information on availability and pricing, please request a quote.

Specifications

Function

Gain Block

Freq. (GHz)

DC - 6

Gain (dB)

20

NF (dB)

2.1

OIP3 (dBm)

35

Surface Mount

3mm QFN

Supply (+V)

5 / 8

P1dB (dBm)

21 / 25

Supply (mA)

89 / 200

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33.0000

AM1090-1

DC to 6 GHz Gain Block


Recommended for New Designs



Product Overview

The AM1090-1 is a high dynamic range amplifier covering up to to 6 GHz. The device boasts a high 1 dB compression point, excellent gain stability over the operating temperature range, and a moderate positive gain-slope providing frequency equalization useful in many broadband applications. With internal 50Ω matching and packaged in a 3mm QFN the AM1090-1 represents a compact total PCB footprint.

The AM1090 is also available in a 1.3mm x 2mm DFN form factor as the AM1090-2.



For more information on availability and pricing, please request a quote.

Specifications

Function

Gain Block

Freq. (GHz)

DC - 6

Gain (dB)

20

NF (dB)

2.1

OIP3 (dBm)

35

Surface Mount

3mm QFN

Supply (+V)

5 / 8

P1dB (dBm)

21 / 25

Supply (mA)

89 / 200

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33.0000
