AM1071

DC to 18 GHz Broadband Gain Block


Recommended for New Designs


Product Options

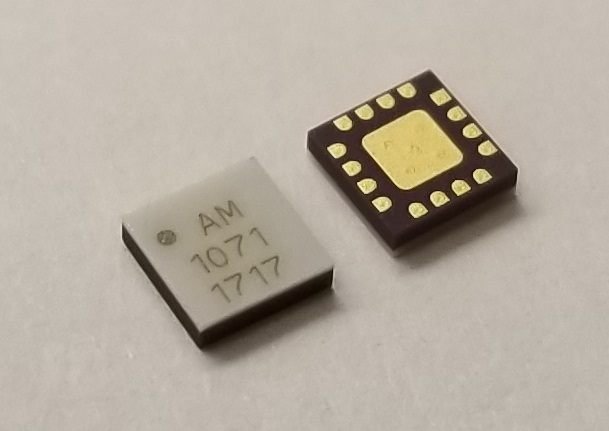

Surface Mount 3mm x 3mm IC
Surface Mount 1.3mm x 2mm DFN
Connectorized Evaluation Board
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

The AM1071-1 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in either a 3mm QFN, the AM1071-1 represents a compact total PCB footprint.

The AM1071 is also available in a 1.3mm x 2mm DFN package as the AM1071-2.



Product Overview

The AM1071-2 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in a 1.3mm x 2mm DFN, the AM1071-2 represents a compact total PCB footprint.

For more information, view AM1071-2 product page.



Product Overview

The AM1071 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in either a 3mm QFN or a 1.3mm x 2mm DFN, the AM1071 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1071-1.

Product Overview

The AM1071 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in either a 3mm QFN or a 1.3mm x 2mm DFN, the AM1071 represents a compact total PCB footprint.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1071-2.

Product Overview

The AM1071 is a DC-coupled broadband gain block covering up to 18 GHz. The device exhibits high third order intercept performance, excellent gain stability over the operating temperature range, and a gain flatness within +/- 1 dB of nominal gain useful in many broadband applications. With internal 50Ω matching and packaged in either a 3mm QFN or a 1.3mm x 2mm DFN, the AM1071 represents a compact total PCB footprint.

Module includes field replaceable SMA Type K (2.9) input and output connectors in a rugged aluminum enclosure. Module also includes an input pin for DC module power through a feed-through capacitor and a corresponding ground pin connection. Module includes four mounting holes sized 4-40 that are threaded fully through from the bottom side of the module. AM1071-M has been configured for operation from 1 MHz to 18 GHz and is internally DC blocked.

Specifications

Function

Broadband Gain Block

Freq. (GHz)

DC - 18

Gain (dB)

12

NF (dB)

3.5

OIP3 (dBm)

30

Surface Mount

3mm QFN

Supply (+V)

5

P1dB (dBm)

16

Supply (mA)

70

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33
