AM1018B

20 MHz to 6 GHz Gain Block


Recommended for New Designs


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

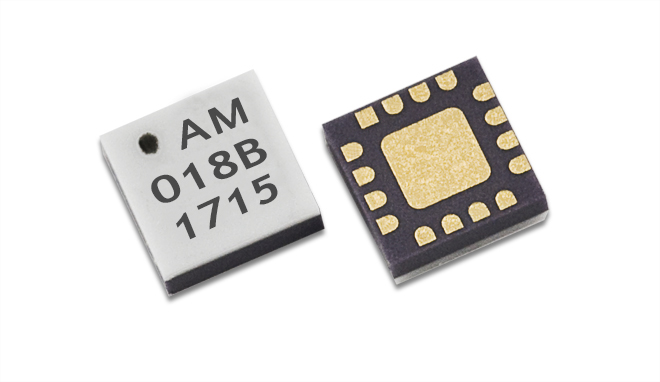

AM1018B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC, 120 mA supply, 3.0 dB noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range.

Product Overview

AM1018B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC, 120 mA supply, 3.0 dB noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1018B.

Product Overview

AM1018B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC, 120 mA supply, 3.0 dB noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Gain Block

Freq. (GHz)

0.02 - 6

Gain (dB)

13

NF (dB)

3

OIP3 (dBm)

35

Surface Mount

3mm QFN

Supply (+V)

5

P1dB (dBm)

22

Supply (mA)

120

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33

AM1018B

20 MHz to 6 GHz Gain Block


Recommended for New Designs

Add To Quote

Jump To Informational Links v


Product Options

Surface Mount 3mm x 3mm QFN
Connectorized Evaluation Board
Connectorized RF Shielded Module

Product Overview

AM1018B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC, 120 mA supply, 3.0 dB noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range.

Product Overview

AM1018B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC, 120 mA supply, 3.0 dB noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range.

Evaluation board includes SMA input and output connectors and SMA voltage input unless otherwise requested. Evaluation board includes AM1018B.

Product Overview

AM1018B is a high dynamic range cascadable gain block covering the 20 MHz to 6 GHz frequency range. It operates from a +5.0VDC, 120 mA supply, 3.0 dB noise figure and high third order intercept performance while also providing excellent gain stability over the operating temperature range.

Module includes field replaceable SMA input and output connectors. Module also includes two pins for voltage input through a feed-through capacitor and a corresponding ground connection. Module includes four mounting holes sized 4-40 that are threaded from the bottom side of the module.

Specifications

Function

Gain Block

Freq. (GHz)

0.02 - 6

Gain (dB)

13

NF (dB)

3

OIP3 (dBm)

35

Surface Mount

3mm QFN

Supply (+V)

5

P1dB (dBm)

22

Supply (mA)

120

Module

Yes



ECCN: EAR99

Harmonized Code: 8542.33
